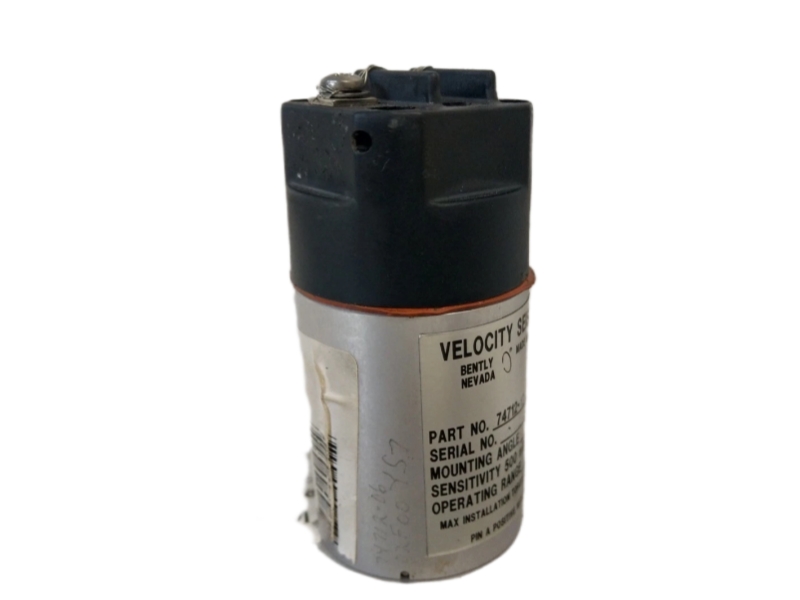

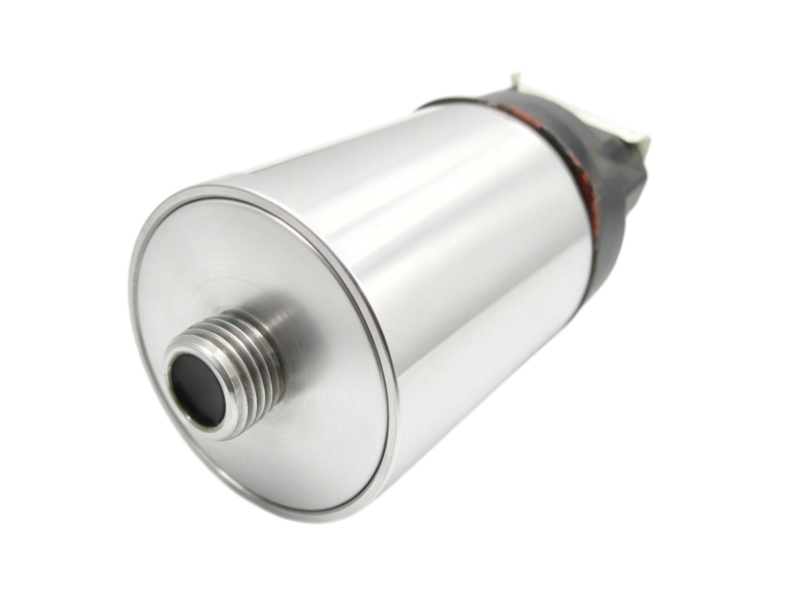

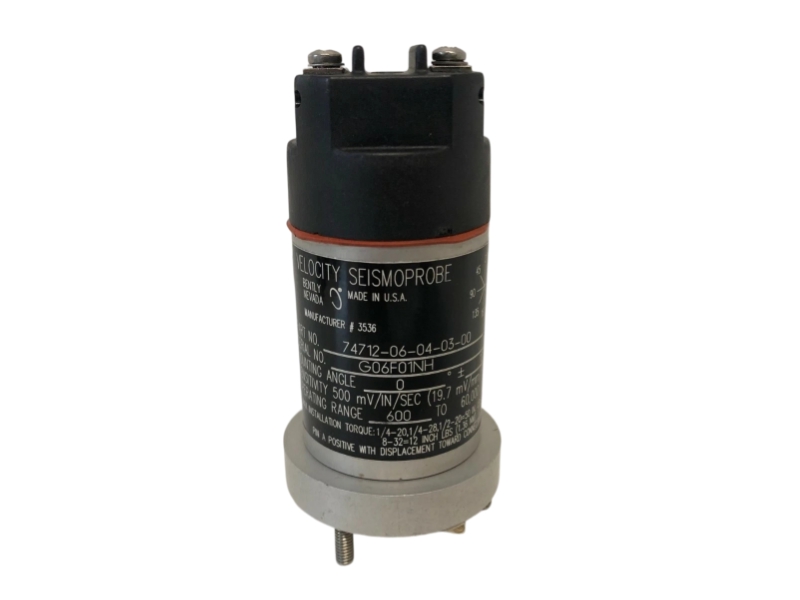

Bently Nevada 74712-06-03-04-00 is a high-temperature two-wire Seismoprobe velocity transducer for absolute bearing-housing, casing and structural vibration measurement. Its official order code specifies a 0-degree mounting orientation with ±10-degree tolerance, a 10 Hz minimum operating frequency, rectangular flange base, side-mounted connector and no agency approval option. The 74712 is the high-temperature version of the 9200 and is rated for -29°C to +204°C. Before replacement, verify the mounting angle, flange geometry, connector orientation, monitor input, cable assembly, temperature exposure, approval requirements and label photographs. It is not a proximity probe and does not require external excitation power.
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete Part Number | 74712-06-03-04-00 |
| Product Type | High-temperature two-wire Seismoprobe velocity transducer |
| Measurement | Absolute bearing-housing, casing or structural vibration |
| Technology | Moving-coil, self-powered two-wire transducer |
| Mounting Angle Option | 0° ±10° |
| Minimum Operating Frequency | 10 Hz (600 cpm) |
| Mounting Base | Rectangular flange |
| Connector | Side mount |
| Agency Approval Option | No approvals |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Frequency Response | 10 Hz to 1 kHz, +0/-3 dB typical |
| Operating and Storage Temperature | -29°C to +204°C (-20°F to +400°F) |
| Dynamic Operating Range | 2.54 mm (0.100 in) peak-to-peak maximum displacement |
| Coil Resistance | 1.25 kΩ ±5% |
| Typical Weight | 480 g (17 oz) |
| Country of Origin | USA |
Sensitivity applies when the transducer is properly terminated and oriented at its calibration angle.
| System Fit | Compatible vibration monitoring or diagnostic instrumentation that accepts the specified two-wire velocity signal. |
| Typical Applications | High-temperature bearing housings, machine casings and structures requiring absolute vibration measurement. |
| Maintenance Use | Replacement where orientation, frequency option, flange, connector and cable configuration match the installed point. |
The current official 9200 and 74712 datasheet confirms this complete configuration but does not provide a lifecycle term for 74712-06-03-04-00. This page therefore does not classify the transducer as Active, Obsolete or Discontinued.
It specifies a 0-degree mounting orientation with ±10-degree tolerance and a 10 Hz minimum operating frequency.
The 74712 is the high-temperature Seismoprobe version with a published range of -29°C to +204°C.
It uses a rectangular flange base and a side-mounted connector.
No. The moving-coil two-wire design generates an output voltage proportional to vibration velocity.
No explicit lifecycle term for this complete order code was confirmed in current official documentation.
Yes. Request clear views of the label, flange, connector, housing and packaging for order review.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured review, condition evidence, protective logistics and responsive after-sales support.
Model, suffix, quantity and destination details are checked before availability and condition review.
Compatibility requirements, interface details, product condition and readable label photographs are reviewed together.
Protective packaging, shipping documents, customs information and shipment tracking are coordinated after order review.
| Pre-order Review | Complete model and suffix verification, technical compatibility review, condition confirmation and product or label photos. |
| Order Fulfilment | Protective packaging, worldwide shipping options, shipment tracking and customs documentation support. |
| After-sales Support | Written warranty terms, return authorization procedures and responsive follow-up for order-related questions. |
Yes. Available inspection views can support suffix, connector, label and visible-condition review.
Our team reviews the complete part number and the installation details provided with the inquiry.
Provide quantity, destination country and any customs or delivery requirements relevant to the order.
