FC-TPSU-2430 V1.1 Overview

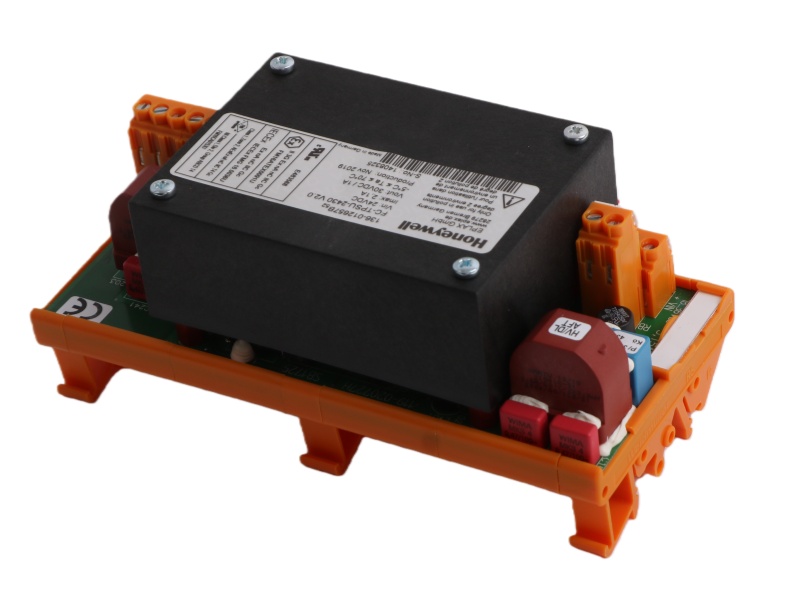

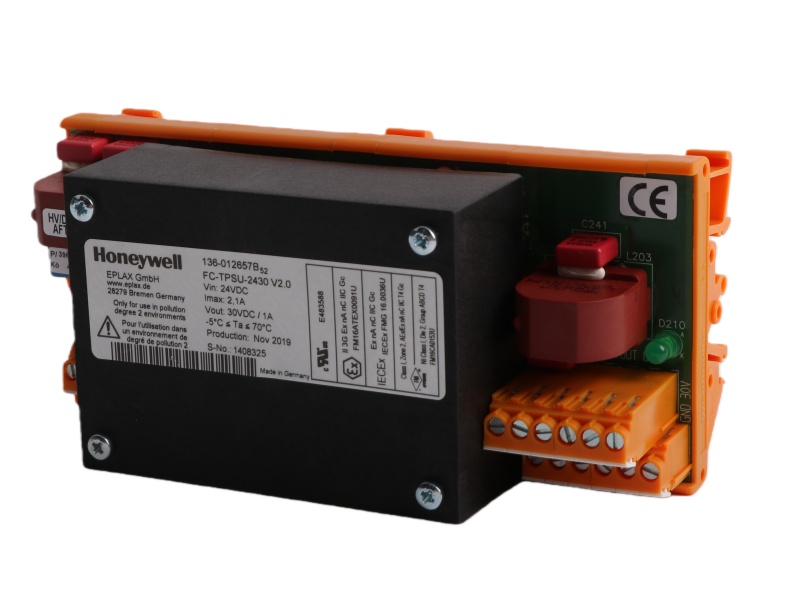

DC Converter FC-TPSU-2430 V1.1 Honeywell is an isolated 24VDC-to-30VDC/1A DIN-rail mounted converter, commonly used to power field devices like FTAs in automation systems.

Specifications

Function: Isolated DC-to-DC converter.

Input Voltage: 24 VDC nominal.

Output: 30 VDC at 1 Amp maximum.

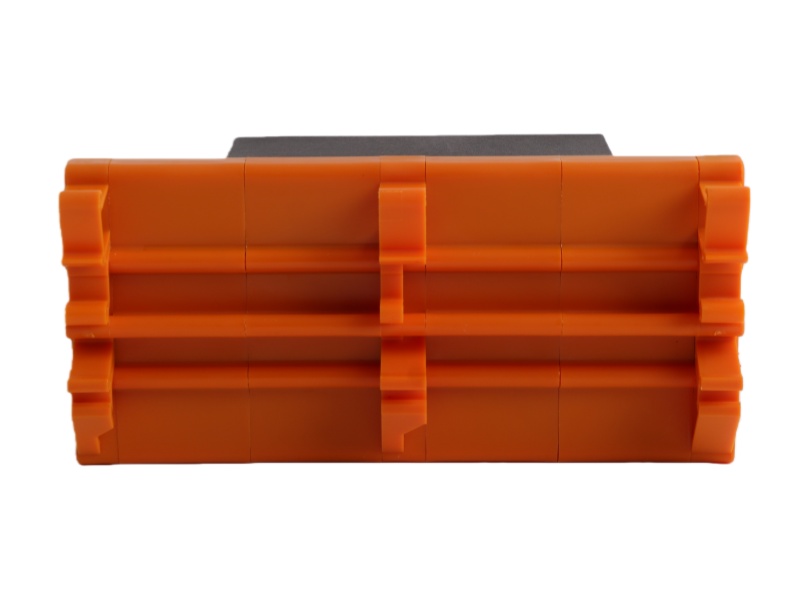

Mounting: Standard DIN rail.

Primary Use: Powers Field Termination Assemblies (FTAs).

Compatibility: Designed for Honeywell system integration.

FAQ

Q1: What is the primary function of this module?

A1: It is an isolated DC/DC converter that steps up 24VDC input to a 30VDC, 1A output.

Q2: What is it most commonly used to power?

A2: It is designed to supply power to Honeywell Field Termination Assemblies (FTAs), such as analog input modules.

Q3: How is it mounted in a control panel?

A3: It features a standard DIN rail mount for easy installation in industrial enclosures.

Q4: Why is electrical isolation important for this converter?

A4: Isolation protects connected sensitive field devices from input-side electrical noise and potential ground loops.

Q5: Can it accept a range of input voltages?

A5: Yes, while rated for 24VDC, the module typically supports a wider input range (e.g., 18-36VDC) for operational flexibility.
