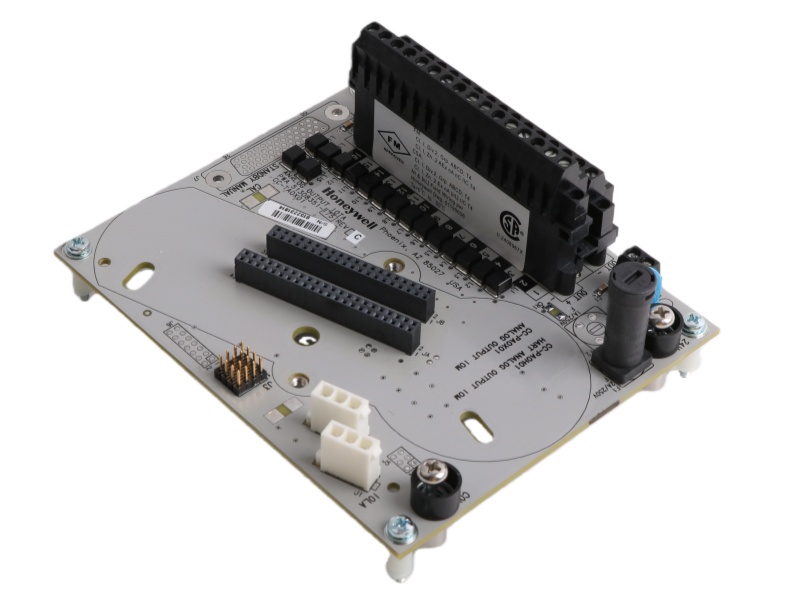

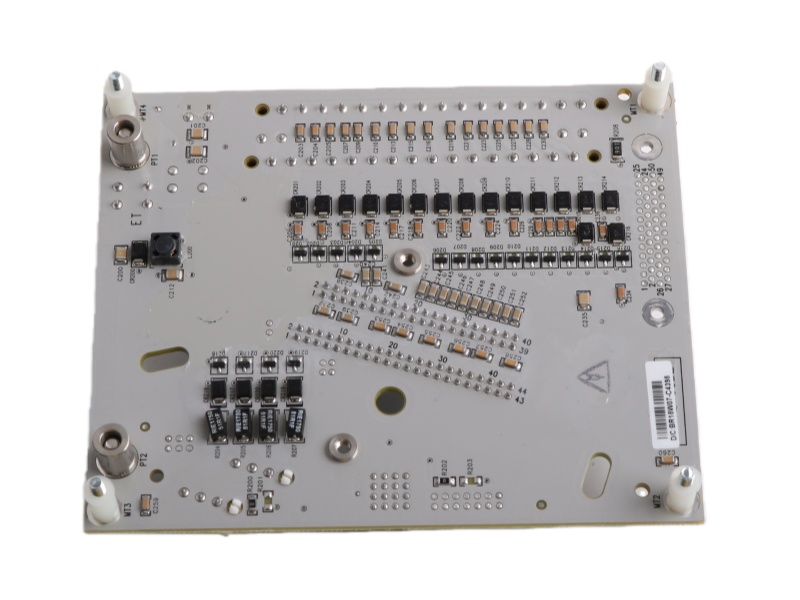

CIRCUIT BOARD Honeywell CC-TAOX01 51308351-175 Analog Output Module Honeywell’s C300 Controller provides powerful and robust process control for the Experion platform. The C300 is part of the product family that operates Honeywell’s field-proven and deterministic Control Execution Environment (CEE) software.

Technical Data Summary

Module Type: Series C Analog Output module for Experion platform C300 controllers.

Output Range: Supports 4–20 mA and 0–10 V analog signals.

Power Supply: 24 V DC (±10%), with a maximum power consumption of 4 W.

Isolation: Provides 1500 V AC reinforced isolation (field-to-system) and 250 V AC (channel-to-channel).

Operational Range: Designed for -25°C to +70°C, with storage up to -40°C to +85°C.

Safety Features: Includes per-channel configurable FAILOPT (Hold/Shed) and open-wire detection.

FAQ

Q1: What is the Honeywell CC-TAOX01 module used for?

A1: It is a Series C Analog Output (AO) module designed to provide reliable 4-20 mA and 0-10 V analog outputs for Honeywell's Experion C300 controller.

Q2: How does the module handle potential failures?

A2: It features a configurable FAILOPT parameter allowing each channel to either hold its last value or shed to a safe state, and electronics failure forces the output to zero.

Q3: What safety feature is included for field wiring issues?

A3: The module includes open-wire detection, which identifies and annunciates open field wires with a channel soft failure indication.

Q4: What are the basic electrical specifications of this module?

A4: It operates on 24 V DC (±10%), consumes ≤4 W, and offers 1500 V AC reinforced isolation from field to system.

Q5: In what environmental conditions can this module operate?

A5: It is designed for industrial environments with an operating temperature range of -25°C to +70°C and humidity tolerance of 5–95% non-condensing.
