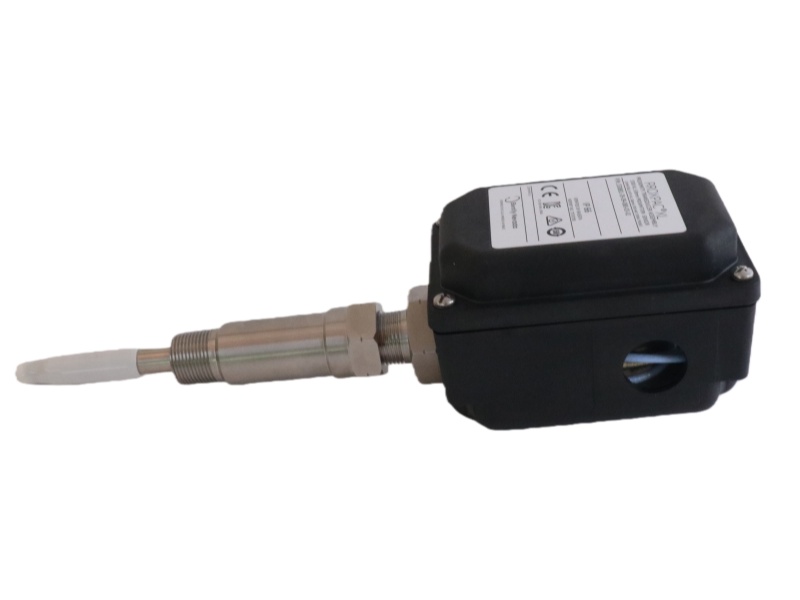

Vibration Monitoring Assembly Bently Nevada 330881-28-00-200-06-02 is a PROXPAC XL self-contained proximity transducer with 3300 XL 8mm probe, PPS housing, Type 4X/IP66, no extension cable needed.

Control & Communication

• Self-contained system with integrated 3300 XL Proximitor sensor.

• No extension cable required between probe and sensor.

• Direct field wiring to monitors (no separate Proximitor housing).

• External probe adjustment capability (like 31000/32000 housings).

• PPS housing with glass/conductive fibers for ESD dissipation.

• Type 4X/IP66 rated for reliable operation in harsh environments.

FAQ

Q1: What is the model number of this Bently Nevada proximity transducer?

A1: The model number is 330881-28-00-200-06-02.

Q2: What type of probe and series does it belong to?

A2: It is a 3300 XL 8 mm probe with multiple approvals, part of the PROXPAC XL series.

Q3: Is an extension cable required for this transducer?

A3: No, it is a self-contained system with an integrated Proximitor sensor, eliminating the need for an extension cable.

Q4: What material is the housing made of, and what ratings does it have?

A4: The housing is made of PPS with glass/conductive fibers, rated Type 4X and IP66 for harsh environments.

Q5: What mounting thread and accessories are included?

A5: It uses 3/4-14 NPT thread and includes a fitting, reducer, and two plugs; no standoff adapter is included.
