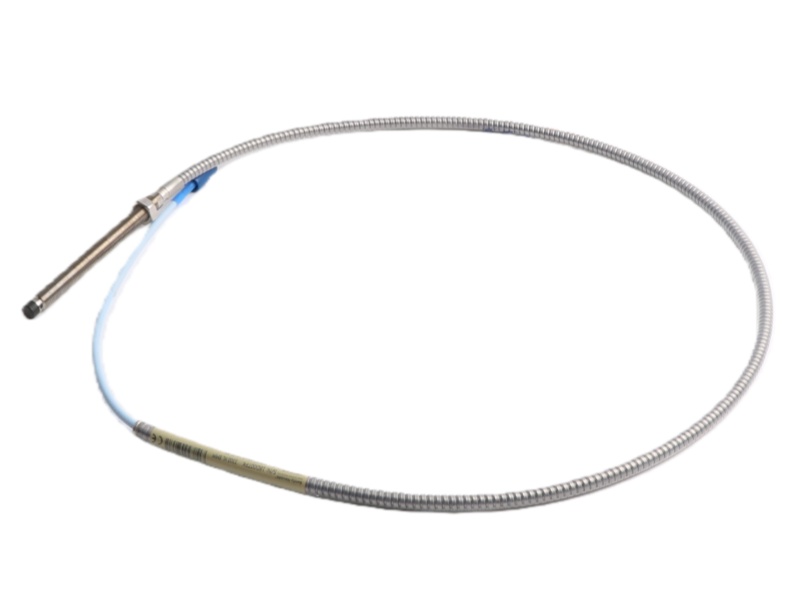

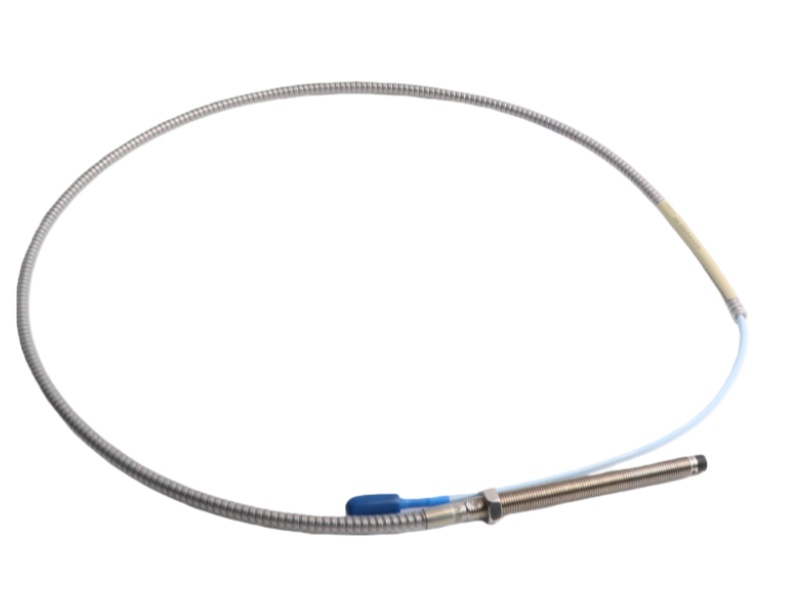

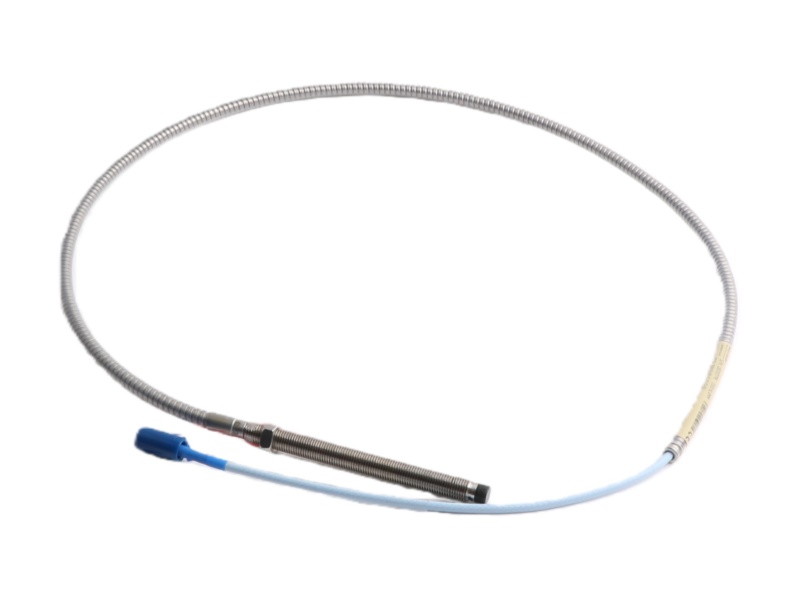

The 330102-00-40-10-01-00 Bently Nevada 3300 XL 8 mm Proximity Probes is an 8mm proximity probe with a 3/8-24 UNF thread, a 1-meter cable, and a miniature coaxial ClickLoc connector for vibration monitoring in industrial machinery.

Key Specifications

Product Model: 330102-00-40-10-01-00 (8 mm Proximity Probe)

Mounting Thread: Standard 3/8-24 UNF thread with armor.

Probe Length: Case length of 4.0 inches with 0.0 inches unthreaded.

Cable Length: Integrated 1.0-meter (3.3-foot) standard cable.

Connector Type: Miniature coaxial ClickLoc connector with protective cover.

System Role: Core sensing component within the 3300 XL 8 mm transducer system for vibration and position measurement.

FAQ

Q1: What does the Bently Nevada 330102-00-40-10-01-00 system consist of?

A1: It consists of one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor.

Q2: What does the 330102-00-40-10-01-00 system measure?

A2: It measures static (position) and dynamic (vibration) values, with output voltage proportional to the distance between the probe tip and a conductive surface.

Q3: What are the primary applications of the 330102-00-40-10-01-00 system?

A3: Primary applications include vibration and position measurements on fluid-film bearing machines, plus Keyphasor reference and speed measurements.

Q4: Does the 330102-00-40-10-01-00 system comply with API 670?

A4: Yes, the standard 5-meter system fully complies with API 670 for mechanical configuration, linear range, accuracy, and temperature stability.

Q5: What are the key specifications of the 330102-00-40-10-01-00 probe?

A5: It has 0 in unthreaded length, 4.0 in case length, 1.0 m total length, a miniature coaxial ClickLoc connector with protector, and no agency approval required.
