HIGH-TEMPERATURE MACHINERY VELOCITY MONITORING
Eight-meter integrated hardline cable with multiple CSA, ATEX and IECEx approvals.

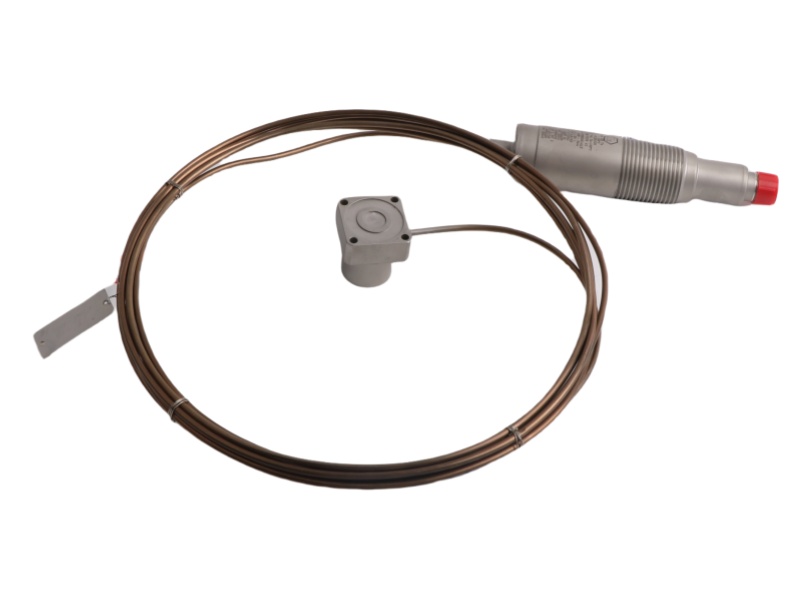

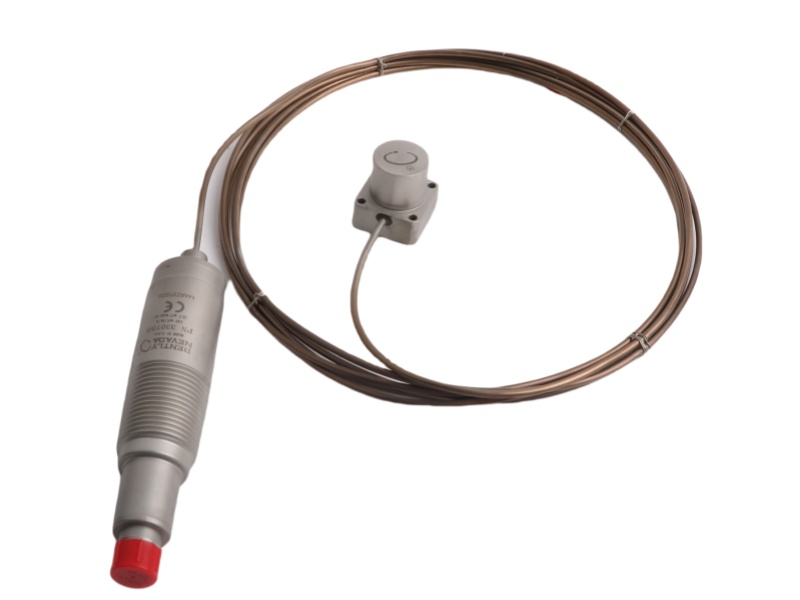

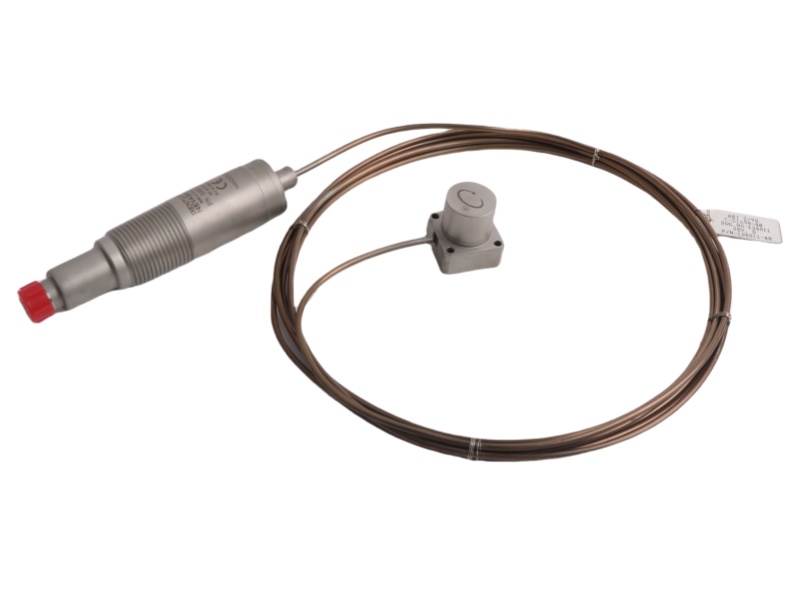

The Bently Nevada 330750-80-05 is a high-temperature Velomitor system for measuring machinery casing velocity where the sensing location is hotter than standard integrated-electronics sensors can tolerate. Its sensing head and signal-conditioning electronics are permanently linked by an eight-meter integrated hardline cable, allowing the electronics to remain in a cooler position. The 05 approval option denotes multiple CSA, ATEX and IECEx approvals. For replacement or new installation, verify the full suffix, serial-number prefix, mounting surface, cable routing, connector, hazardous-area requirements, monitor interface and current product-label photographs before approval.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 330750-80-05 |
| Product Type | High Temperature Velomitor System |
| System Family | High Temperature Velomitor System |
| Integrated Hardline Cable | 8 meters |
| Approval Option | Multiple approvals: CSA, ATEX and IECEx |
| Sensitivity | 5.7 mV/mm/s (145 mV/in/s) ±5% |
| Frequency Response | 15 to 2000 Hz ±3.0 dB; 20 to 1000 Hz ±0.9 dB |
| Output Bias Voltage | -12 ±2.0 VDC |
| Grounding | Case isolated |
| Sensing Head and Hardline Range | -55°C to +400°C (-67°F to +752°F) for current G-prefix serial-number versions |
| Electronics Temperature Range | -55°C to +121°C (-67°F to +250°F) |
| Relative Humidity | Up to 100% non-submerged; hermetically sealed case |
| Typical Weight | 1,111 g (2.45 lb) for the 8-meter version |
| Case Material | 300 series stainless steel |
| Connector | 2-pin MIL-C-5015 receptacle with hermetically sealed 304 stainless steel shell |
| Minimum Bend Radius | 51 mm (2.0 in) |
| Country of Origin | USA |
| High-temperature bearing locations | Measures casing velocity while allowing the electronics housing to remain in a cooler location. |
|---|---|
| Turbine and compressor monitoring | Supports machinery vibration measurement where installation conditions match the official limits. |
| Hazardous-area projects | The 05 option carries multiple approvals, but the installation drawing and entity parameters must be reviewed. |
| Installed-base replacement | The complete suffix, serial-number capability, connector, cable route and monitor interface must match. |
The current manufacturer datasheet confirms the exact ordering configuration but does not provide an official lifecycle designation for 330750-80-05. No Active, Legacy, Obsolete or discontinued status is inferred.
The 80 code identifies an eight-meter integrated hardline cable, while 05 identifies multiple CSA, ATEX and IECEx approvals.
Current versions with a G-prefix serial number are specified for mounted surfaces up to +400°C (+752°F).
No lifecycle conclusion is stated because the current manufacturer datasheet does not provide an official lifecycle designation.
Verify the suffix, serial prefix, mounting, cable route, bend radius, connector, monitor interface and hazardous-area requirements.
No direct substitution should be assumed; the installed system, physical arrangement and complete ordering configuration must be compared.
