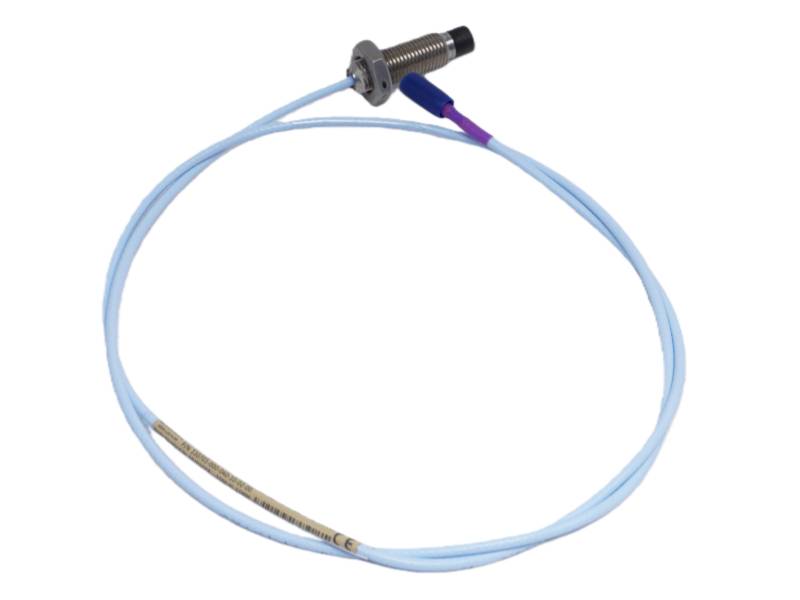

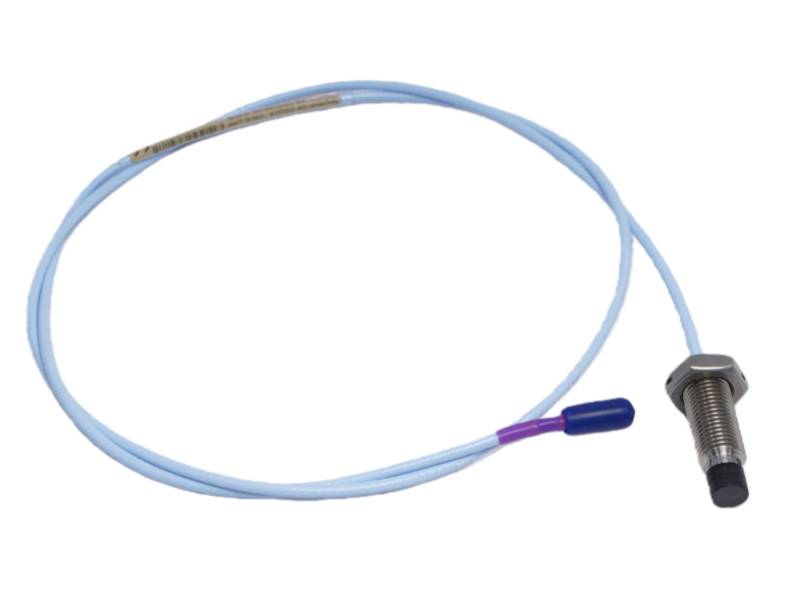

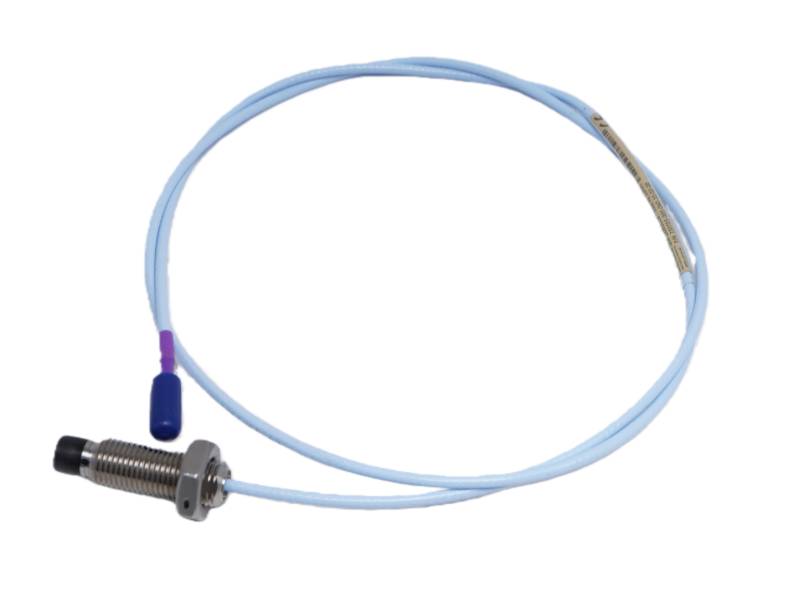

The Proximity Switch Bently Nevada 330703-000-040-10-02-05 is an 11 mm proximity probe designed for the 3300 XL transducer system. Featuring an M14x1.5 thread and a 1-meter standard cable with a ClickLoc connector, it is used for thrust position and differential expansion measurements.

Technical Data Summary

• Transducer Type: 3300 XL 11 mm Proximity Probe.

• Thread Specification: M14 x 1.5 thread, unarmored variant.

• Probe Length: Minimum 40 mm overall, with a minimum unthreaded length of 0 mm.

• Cable Length: Factory-fitted with a 1.0 meter (3.3 ft) standard cable.

• Connection Type: Terminates with a miniature coaxial ClickLoc connector.

• Approvals: Certified with multiple international approvals for industrial use.

FAQ

Q1: What is the main application of this 11 mm probe?

A1: It is primarily used for axial (thrust) position and differential expansion measurements requiring a long linear range.

Q2: What is its key specification compared to an 8 mm probe?

A2: Its 11 mm tip provides a longer linear range, and it has a sensitivity of 3.94 V/mm (100 mV/mil).

Q3: What type of cable connection does it use?

A3: It uses a reliable miniature coaxial ClickLoc connector on its standard 1-meter cable.

Q4: Can it replace older 7200-series probes?

A4: Yes, it is designed to replace 7200-series 11/14 mm systems, but the entire transducer system must be upgraded.

Q5: What thread size and armor does it have?

A5: It features an M14x1.5 thread and is the unarmored variant (minimum length 40 mm).
