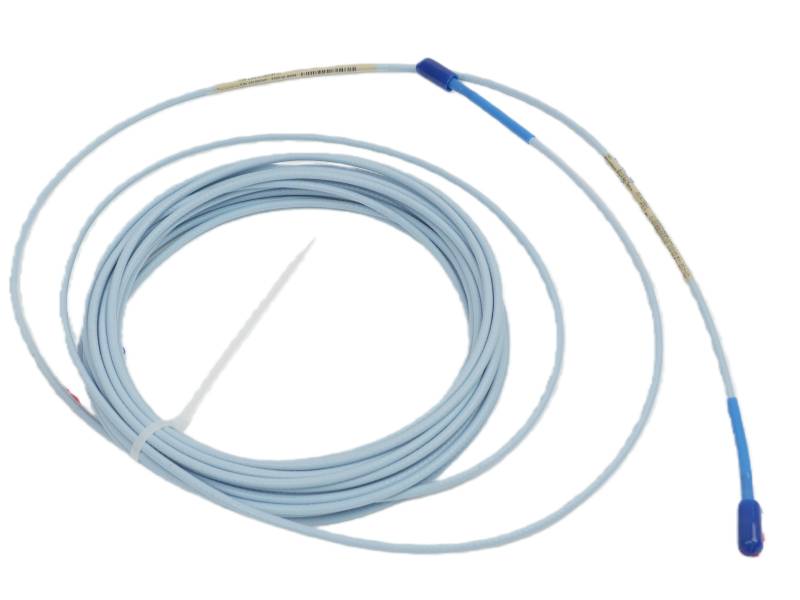

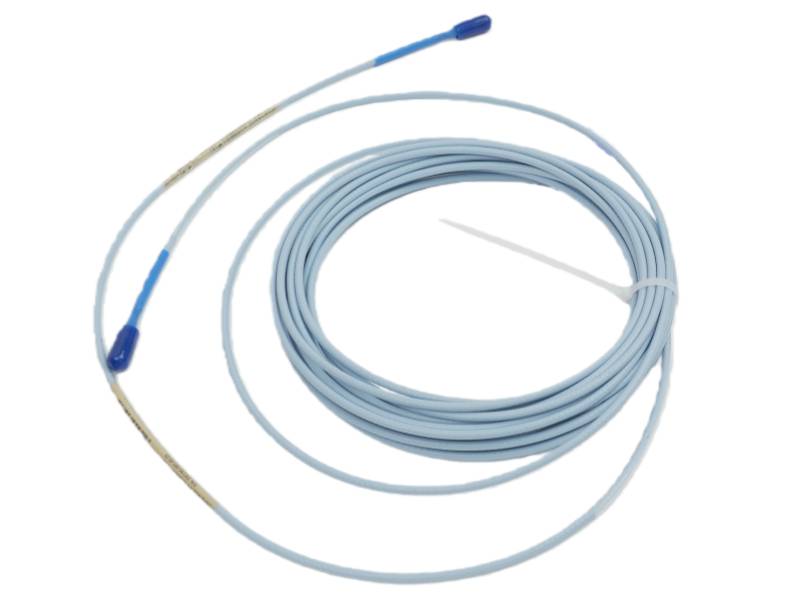

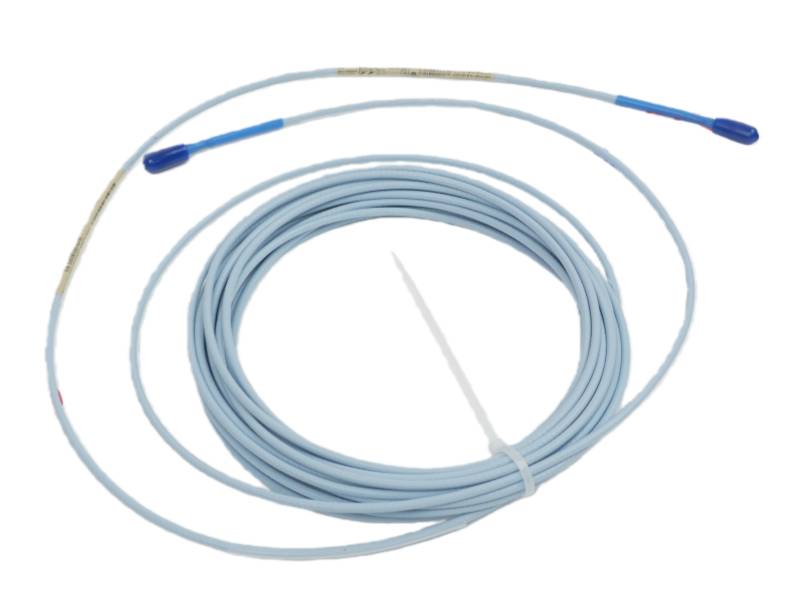

The 3300 series Bently Nevada 330190-085-00-00 is an 8.5-meter extension cable for the 3300 XL series. It features 75-ohm triaxial FEP-insulated cable for high-fidelity signal transmission, connecting proximity probes to Proximitor sensors in demanding industrial environments.

Technical Data Summary

• Product Type: 8.5-meter (27.9 ft) extension cable for 3300 XL series.

• Cable Type: 75 ohm triaxial cable with FEP insulation.

• Temperature Range: Operates and stores from -52°C to +177°C.

• Capacitance: Low capacitance of 69.9 pF/m (typical) for high-fidelity signals.

• Wiring Distance: Supports up to 305 meters of field wiring to the monitoring system.

• Agency Approvals: Designed for general industrial use without specific certifications.

FAQ

Q1: What is the function of the 330190-085-00-00?

A1: It is an 8.5-meter extension cable designed to connect a 3300 XL proximity probe to its Proximitor sensor in industrial monitoring systems.

Q2: What type of cable construction does it use?

A2: It uses a standard 75-ohm triaxial cable insulated with durable FEP (Fluoroethylene Propylene) for high performance.

Q3: What is the operating temperature range of this cable?

A3: It is designed to operate and be stored in a wide temperature range from -52°C to +177°C.

Q4: How far can field wiring be run from the sensor to the monitor?

A4: The total allowable field wiring distance from the Proximitor sensor to the monitoring system can be up to 305 meters (1,000 feet).

Q5: Does this cable require specific agency approvals?

A5: No, it is intended for general industrial applications and does not carry specific agency certifications.
