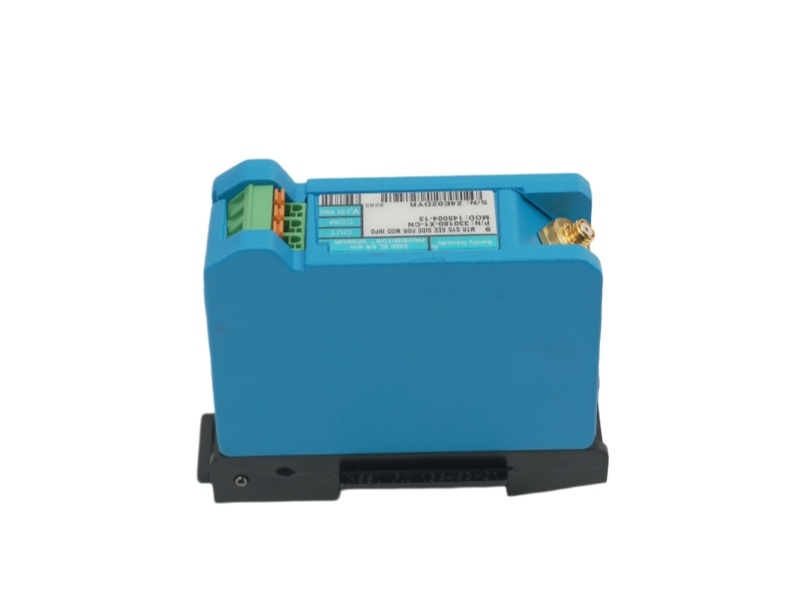

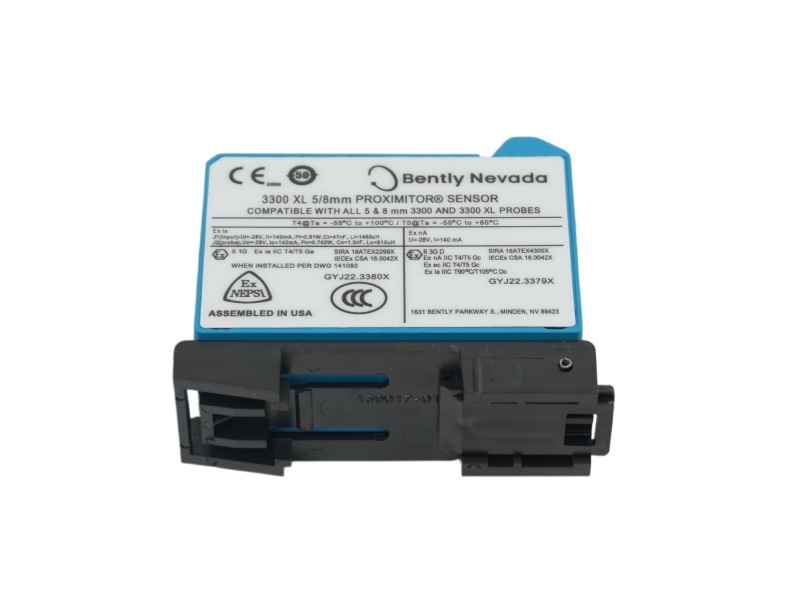

Bently Nevada 330180-X1-05 MOD:145347-05 is a 3300 XL 8 mm Proximitor Sensor with a modification-specific ordering identity. The 3300 XL 8 mm transducer chain combines a proximity probe, extension cable and Proximitor Sensor for non-contacting vibration and displacement measurement. Public standard ordering tables identify 330180 as the Proximitor Sensor family, but do not provide a reliable expansion for X1 or the MOD:145347-05 effect. This page therefore supports maintenance and procurement review without inferring the modification. Confirm the original label, system length, mounting method, probe/cable combination, target material and approval markings before ordering.
| Manufacturer | Bently Nevada |
| Complete Part Number | 330180-X1-05 MOD:145347-05 |
| Product Type | 3300 XL 8 mm Proximitor Sensor |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Model Configuration | Modification-specific Proximitor Sensor; X1 and MOD:145347-05 require label and documentation confirmation; approval option 05 |
| Product Condition | Contact us to confirm. |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | Contact us to confirm. |
| Compatibility | Match the complete 3300 XL 8 mm probe, extension cable and total system length. Confirm X1 and MOD:145347-05 against the original label. |
| Certification | Option 05 is associated with CSA, ATEX and IECEx approvals; confirm the actual offered-unit markings. |
| Warranty | Contact us to confirm. |
| Availability | Contact us to confirm. |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| 330180 | 3300 XL 8 mm Proximitor Sensor |
| X1 | Modification-specific length or mounting configuration; contact us to confirm |
| 05 | CSA, ATEX and IECEx approval option; verify actual markings |
| MOD:145347-05 | Public technical effect not confirmed; compare with original documentation |
System-level values apply only when required components and installation conditions match the manufacturer documentation.
| Sensor input | One non-contacting 3300-series 5 mm or 3300 XL 8 mm probe and extension cable |
| Power | -17.5 to -26 Vdc without barriers at 12 mA maximum; -23 to -26 Vdc with barriers |
| Output resistance | 50 ohms |
| System linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm from target |
| System scale factor | 7.87 V/mm (200 mV/mil), with system-length tolerance |
| System frequency response | 0 to 10 kHz, +0/-3 dB typical |
| Field wiring | 0.2 to 1.5 mm2 (16 to 24 AWG); shielded three-conductor cable recommended |
| Housing and weight | A308 aluminum housing; Proximitor Sensor weight 246 g |
Verify the full 330180-X1-05 MOD:145347-05 identity, total system length, panel or DIN mounting, probe and cable part numbers, target material, field wiring, hardware label and approval markings. Do not substitute a standard 330180 configuration merely because its base number matches. The X1 and modification code must be checked against the original machine documentation and clear product-label photos.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented procurement path for compatibility, packaging, shipment and after-sales communication.
The complete 330180-X1-05 MOD:145347-05 identity is compared with the request and available labels.
Condition and packaging details are confirmed in writing before order acceptance.
Supplied system, interface, dimensions and revision details are reviewed without presenting the product as an automatic substitute.
Available product, connector and label photos can be checked before shipment when requested.
Packaging is selected to protect the product, connectors and exposed surfaces during transport.
International options are quoted after destination and export requirements are known.
Tracking details are provided after carrier collection when supported by the service.
Commercial shipping documents follow the confirmed transaction and destination requirements.
Any warranty scope and duration are stated in the written quotation.
Returns require prior authorization under the written transaction terms.
Post-delivery questions use the order record, product labels and reported symptoms.
Share the complete model, quantity, destination and label photos for documented checks.
Each entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
