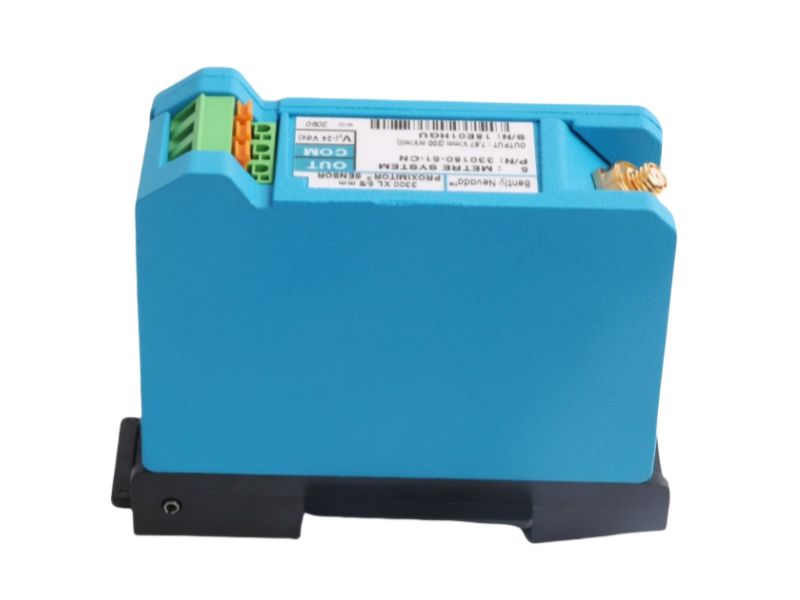

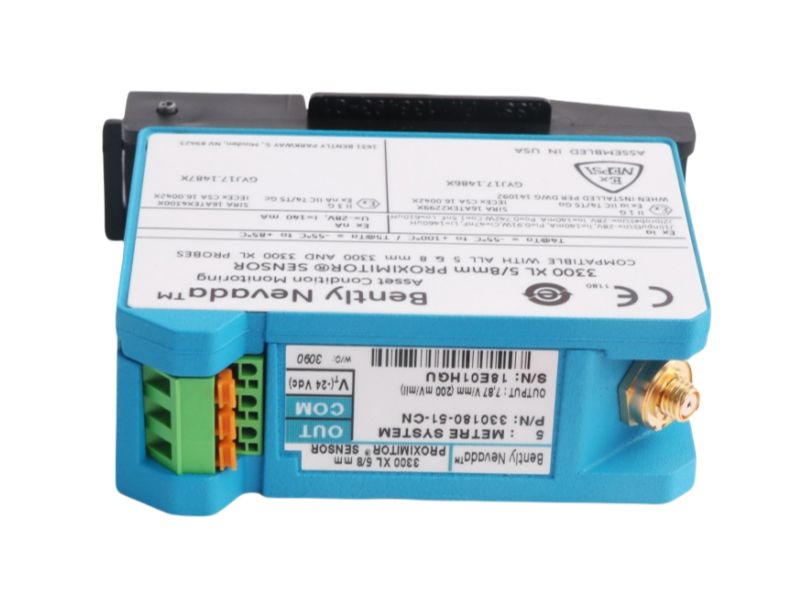

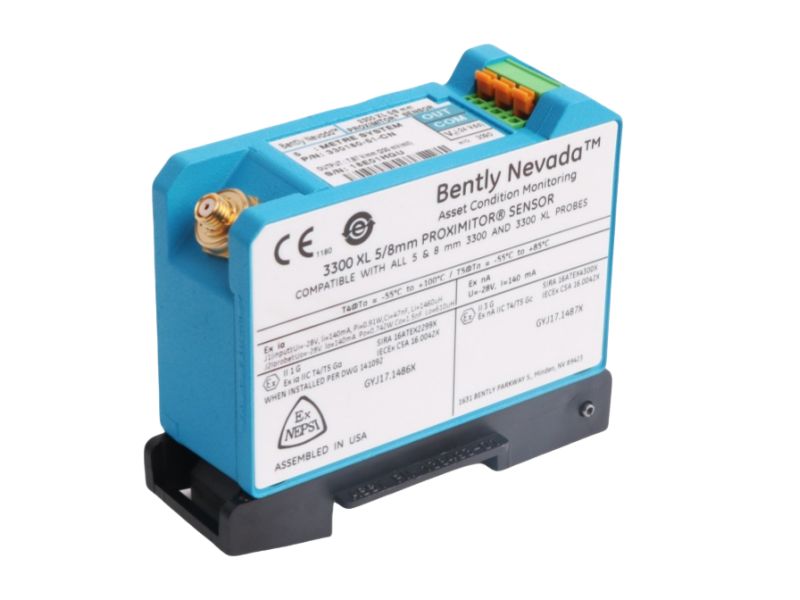

The 3300 XL Proximitor Sensor Bently Nevada 330180-085-03-05 is a high-quality 3300 XL 8 mm Proximitor Sensor Extension Cable designed for precise machinery vibration and position monitoring. Manufactured as part of Bently Nevada’s 3300 Series, the Proximity Probe Housing Assemblies 330180-085-03-05 Bently Nevada provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate measurement of both static (position) and dynamic (vibration) values. This cable is ideal for applications such as fluid-film bearing vibration monitoring, Keyphasor reference signals, and speed measurements, delivering advanced performance consistent with API 670 standards for linear range, mechanical configuration, and temperature stability.

Engineered with enhanced reliability, the 3300 XL Proximitor Sensor Bently Nevada 330180-085-03-05 features a patented TipLoc molding method for a robust bond between the probe tip and body, while the CableLoc design ensures a 330 N pull strength for secure cable attachment. Corrosion-resistant, gold-plated ClickLoc connectors allow easy finger-tight installation, preventing loosening without requiring any special tools. These improvements enhance mechanical stability and signal integrity, even in demanding industrial environments.

The 330180-085-03-05 Bently 3300 XL Proximitor Sensor is supplied calibrated to AISI 4140 steel, with custom calibration available upon request for other target materials. It is compatible with extended temperature applications and high-speed machinery monitoring. The cable and sensor components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, maintaining the same 4-hole mounting footprint and minimum cable bend radius requirements.

Overall, the BENTLY NEVADA 330180-085-03-05 combines durability, flexibility, and precise signal transmission. Its design ensures reliable, uninterrupted performance in industrial automation, vibration monitoring, and tachometer or overspeed protection applications, supporting seamless integration into existing 3300 XL systems while maintaining full interchangeability and compliance with industry standards.
