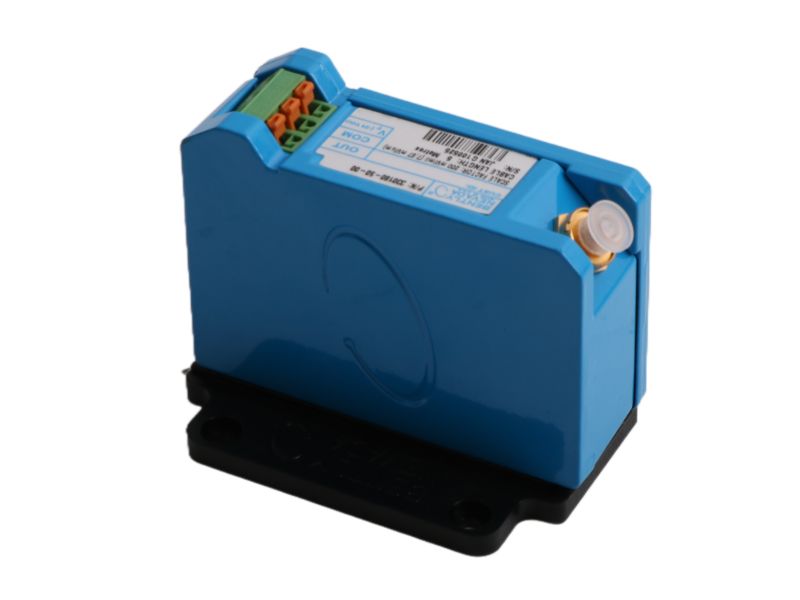

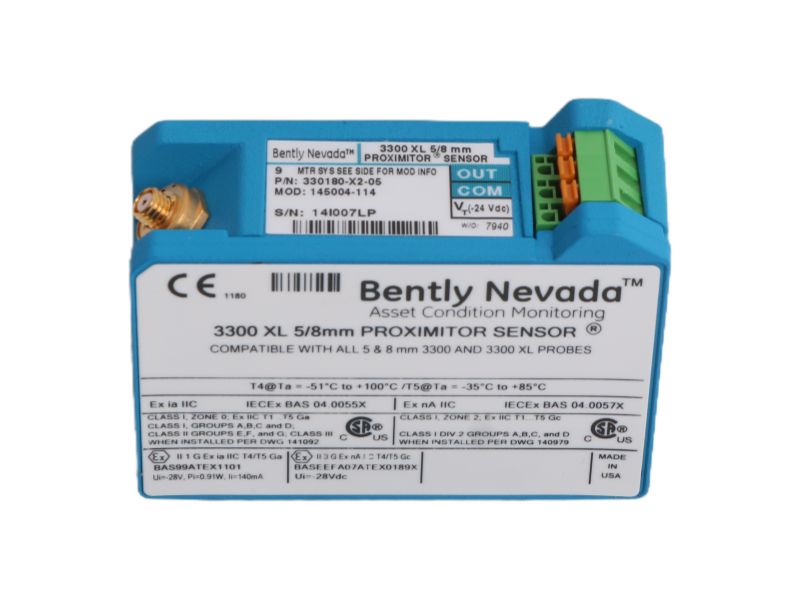

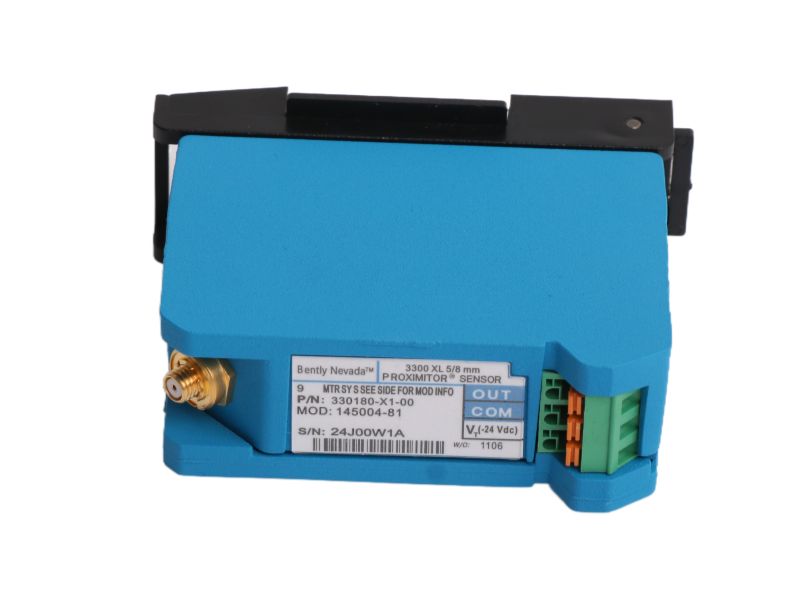

The 3300 XL Proximitor Sensor Bently Nevada 330180-080-03-05 is a high-quality 3300 XL 8 mm Proximitor Sensor Extension Cable designed for precise machinery vibration monitoring applications. Manufactured as part of the 3300 Series, it ensures accurate measurement of both static (position) and dynamic (vibration) data. It provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, making it ideal for applications such as vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed detection. The BENTLY NEVADA 330180-080-03-05 supports full interchangeability with probes, extension cables, and Proximitor sensors, eliminating the need for matching or bench calibration of individual components.

Engineered for reliability, the 330180-080-03-05 PROXPAC XL Proximity Transducer Assembly Bently Nevada features patented TipLoc molding for a robust bond between the probe tip and body, and CableLoc design ensuring a 330 N pull strength to secure the cable connection. Corrosion-resistant, gold-plated ClickLoc connectors allow easy, tool-free installation while preventing loosening during operation. These enhancements improve mechanical stability and signal integrity in demanding industrial environments.

The Bently Proximity Transducer System 3300 XL 330180-080-03-05 also offers compliance with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability. Its calibrated output ensures consistent performance across a range of materials, with factory default calibration for AISI 4140 steel and custom calibration available upon request. The cable and probe combination is compatible with extended temperature applications and high-speed machinery monitoring.

Overall, the 3300 XL 8 mm Proximitor Sensor Extension Cable 330180-080-03-05 delivers exceptional performance and reliability. Its design supports both XL and non-XL 3300 series components, maintaining the same mounting footprint while providing improved durability, robust signal transmission, and flexibility in industrial automation and vibration monitoring systems.
