Machinery Condition Monitoring

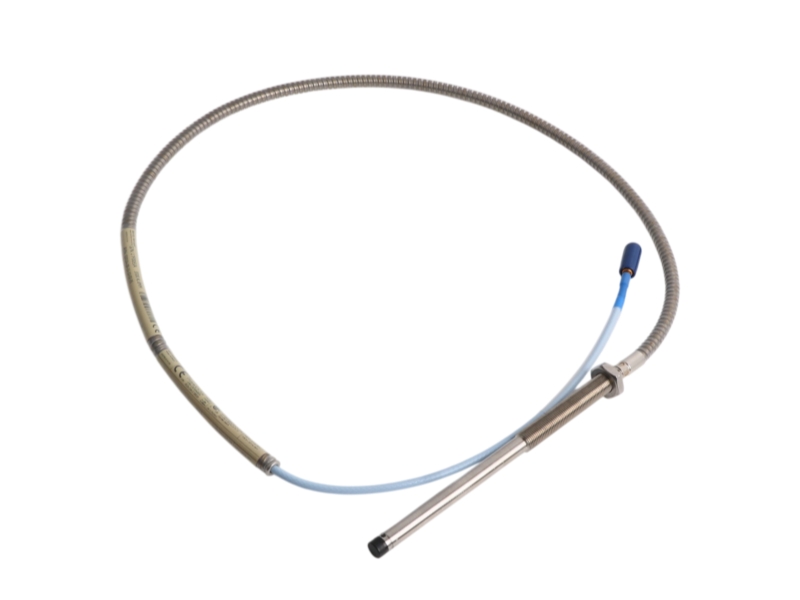

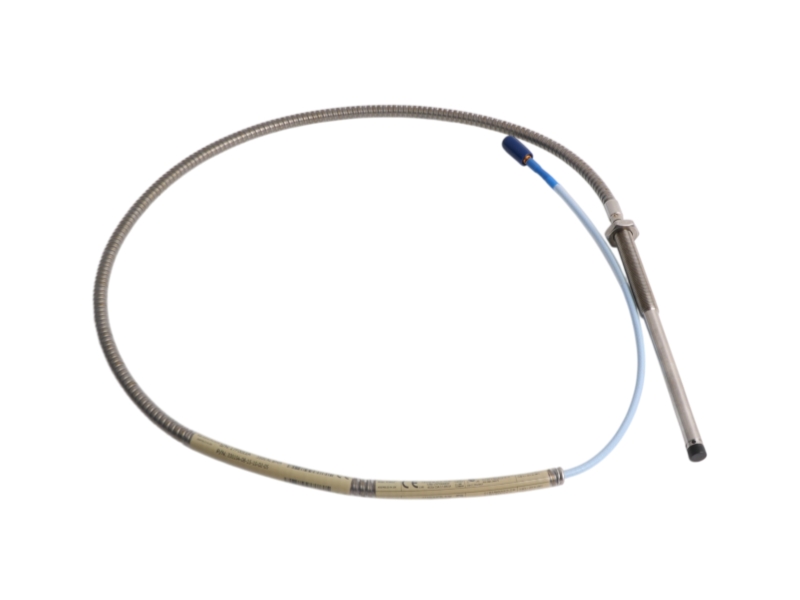

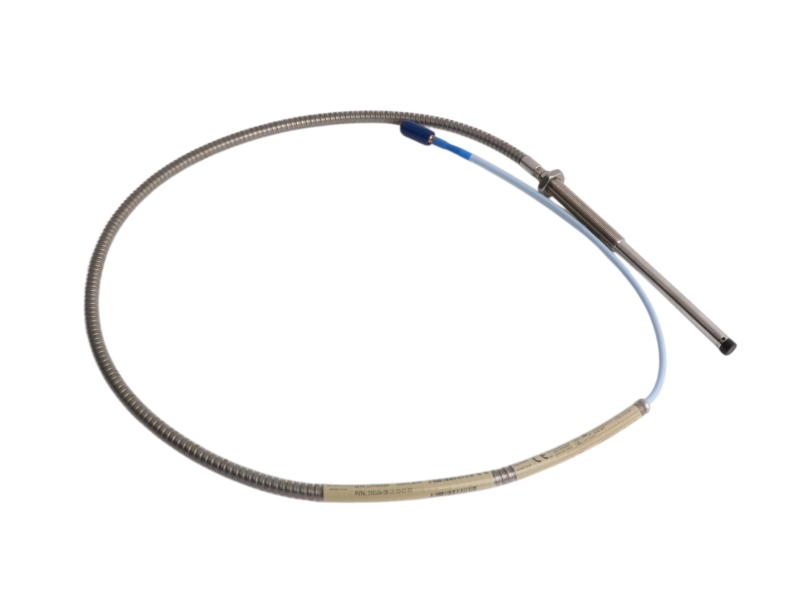

3300 XL 8 mm Armored Metric Proximity Probe
Bently Nevada 330104-08-15-10-02-00 is a compact configured 3300 XL 8 mm proximity probe for non-contact machinery measurement. The official option codes define an armored, standard-mount M10 x 1 metric probe with 80 mm unthreaded length, 150 mm overall case length, 1.0 m total length, a miniature coaxial ClickLoc connector and standard cable. Its shorter case geometry is distinct from longer 330104 variants and must be matched to the installed bracket or machine housing. Procurement checks should cover every suffix, insertion depth, target material, probe gap, cable routing, extension-cable length and compatible Proximitor sensor.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada |
|---|---|
| Complete Part Number | 330104-08-15-10-02-00 |
| Product Type | 3300 XL 8 mm proximity probe |
| Mounting and Thread | Standard mount, M10 x 1 metric thread |
| Cable Protection | With armor |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Unthreaded Length | 80 mm |
| Overall Case Length | 150 mm |
| Total Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Agency Approval Option | Not required |
| Compatible System | 3300 XL 8 mm proximity transducer system |
| Application | Engineering Relevance |
|---|---|
| Compact metric mounting | 150 mm case length supports installations with limited available depth |
| Shaft vibration monitoring | Non-contact relative vibration measurement in a matched transducer system |
| Shaft position monitoring | Position measurement where target and gap requirements are satisfied |
| Maintenance replacement | Match the 80 mm unthreaded section and installed mounting geometry |
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured verification, inspection, documentation and logistics support for industrial spare-parts procurement.
| Step | Service Item | What We Check |
|---|---|---|
| 1 | Model verification | Complete part number, suffix groups and readable package-label evidence |
| 2 | Condition review | Probe tip, threaded body, armor, cable, connector and packaging |
| 3 | Compatibility check | Thread, case length, total length, connector and transducer-system context |
| 4 | Photo documentation | Requested probe, tip, thread, connector and package photographs |
| 5 | Protective packing | Materials selected for industrial sensors and electronic components |
| 6 | Worldwide logistics | Carrier options, tracking and commercial shipping documents |
Buyers can request probe, connector, label and packaging evidence for order review.
Commercial condition, agreed warranty terms and shipment information are recorded for the order.
The service team coordinates evidence review and post-shipment questions under the agreed terms.
Provide the complete part number, required quantity, destination country, installed-system information and clear label photos for an efficient review.
