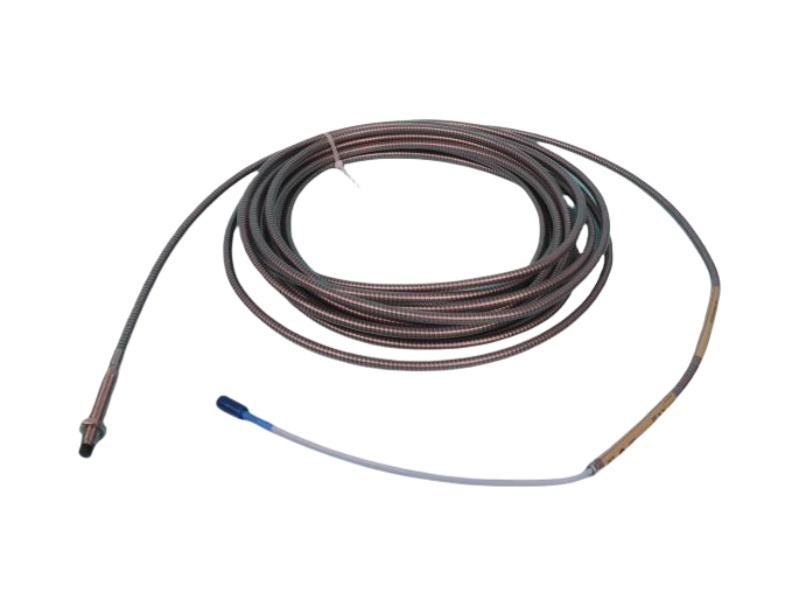

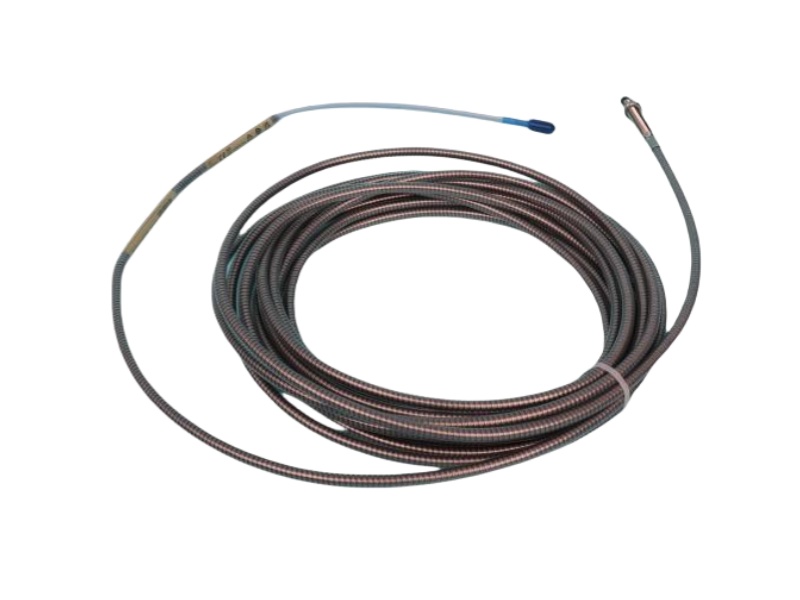

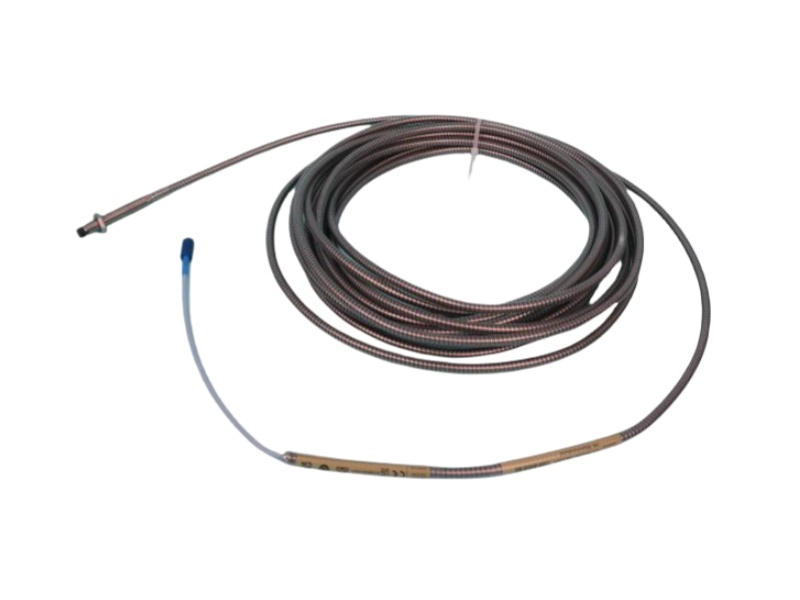

Bently Nevada 330104-00-06-90-02-05 is an armored M10 x 1 threaded probe for the 3300 XL 8 mm Proximity Transducer System. Its suffix defines zero unthreaded length, a 60 mm overall case, a 9.0 m total probe length, a miniature coaxial ClickLoc connector with standard cable and CSA, ATEX and IECEx approvals. The probe supports non-contact shaft vibration and position measurement when matched with the correct extension cable and Proximitor Sensor. Before ordering, confirm the complete suffix, system length, target material, mounting thread, case dimensions and approval documentation.
| Manufacturer | Bently Nevada |
| Complete Part Number | 330104-00-06-90-02-05 |
| Product Type | 3300 XL 8 mm Armored M10 Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Thread | M10 x 1 |
| Armor | Included |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Probe Length | 9.0 m |
| Connector and Cable | Miniature coaxial ClickLoc connector, standard cable |
| Approvals | CSA, ATEX and IECEx |
| Product Condition | NEW |
| Country of Origin | USA |
| Availability | Contact us to confirm |
| Warranty | With 1 year warranty |
The 3300 XL 8 mm probe is the sensing element of an eddy-current proximity transducer system. Installed toward a conductive machine target, it supplies a non-contact input for shaft motion and position. The armored cable adds mechanical protection, while the M10 x 1 body fits metric threaded mounting points. A complete system combines the probe, an extension cable when required and the correct 3300 XL Proximitor Sensor.
| Probe tip diameter | 8 mm |
| Thread and construction | M10 x 1, armored |
| Overall case length | 60 mm |
| Total probe length | 9.0 m |
| Connector | Miniature coaxial ClickLoc |
| Complete-system linear range | 2 mm (80 mils) |
| Complete-system scale factor | 7.87 V/mm (200 mV/mil) |
| Complete-system frequency response | 0 to 10 kHz (+0/-3 dB) |
The 9.0 m probe length must be evaluated as part of the complete 3300 XL 8 mm system. Confirm extension cable requirements, Proximitor Sensor length, M10 x 1 thread engagement, target material, approval documents and original labels before ordering.
Send the complete part number, quantity, destination country and available label photos for availability, compatibility, shipping and written warranty review.
Send the complete part number, quantity, destination country and available label photos for availability, compatibility, shipping and written warranty review.
Each entry is an independent product listing and is not presented as a direct replacement.
Confirm manufacturer, complete part number, revision and compatibility before ordering. Published entries include clickable links.
