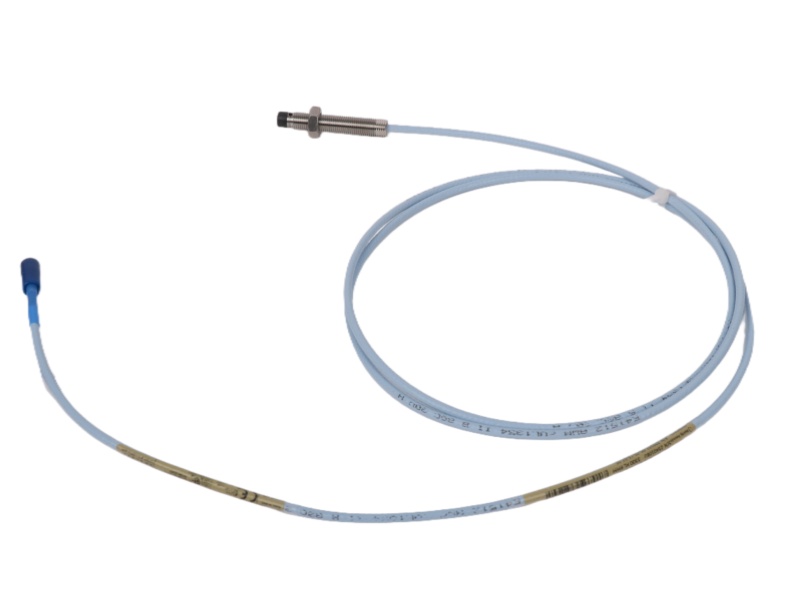

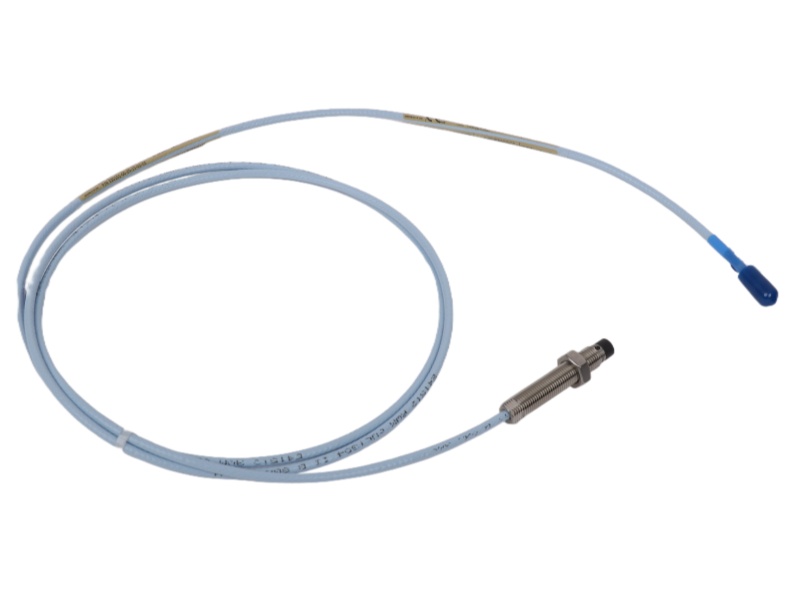

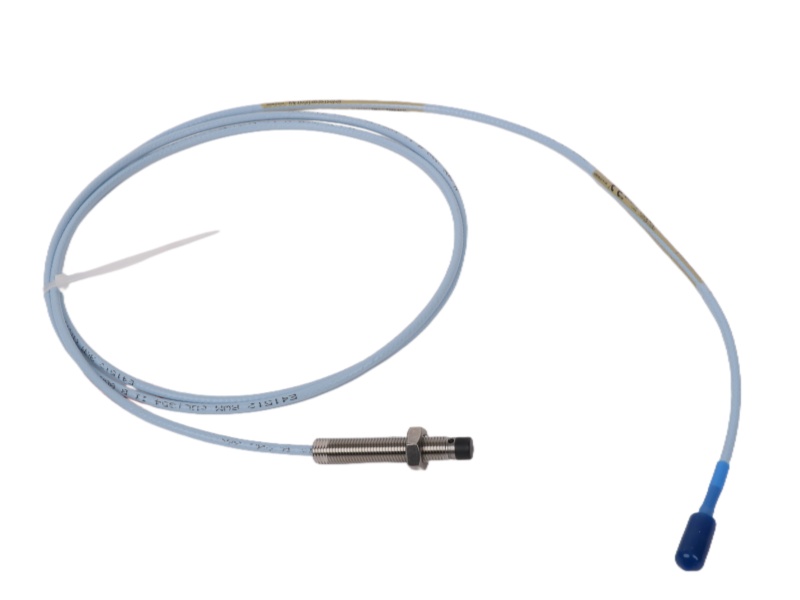

Bently Nevada 330101-00-20-15-12-05 Proximity Probes

Inquiry now

330101-00-20-15-12-05 Product datasheet

Model number:	330101-00-20-15-12-05	Module Type：	Proximity Probes
Manufacture:	Bently Nevada	Condition：	Brand New
Range of Product:	3300 XL Proximity Transducer System	Lead time：	In Stock
Weight:	0.08kg	HS CODE：	8537101190
Dimension:	112x1.5x1.2cm	MOQ:	1
Product Origin:	USA	System：	TSI
Discontinued on:	active	Communication Service:	Ethernet router

330101-00-20-15-12-05 Functional Description

The Proximity Probes Bently Nevada 330101-00-20-15-12-05 is part of the advanced 3300 XL 8 mm Proximity Transducer System, designed to provide highly accurate vibration and shaft position measurements. This Bently Nevada 330101-00-20-15-12-05 PDF consists of a proximity probe, extension cable, and Proximitor Sensor, working together to deliver reliable monitoring performance for industrial machinery.

The PROBE 330101-00-20-15-12-05 Bently Nevada generates an output voltage directly proportional to the distance between the probe tip and the observed surface. It is capable of measuring both static position and dynamic vibration values, making it suitable for fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Engineered for demanding environments, the 330101-00-20-15-12-05 Proximity Probes Bently Nevada fully complies with API 670 standards for configuration, linear range, accuracy, and temperature stability. This ensures dependable performance across a wide range of applications while maintaining system integrity.

Another key advantage of the 3300 SERIES 330101-00-20-15-12-05 Bently Nevada is its backward compatibility with other non-XL 3300 series 5 mm and 8 mm components. This flexibility allows seamless interchangeability, reducing maintenance complexity and eliminating the need for bench calibration.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Bently Nevada	330101-00-20-20-02-05	Bently Nevada	330101-00-09-15-12-CN	Bently Nevada	330101-00-18-10-12-05
Bently Nevada	330101-00-20-20-12-05	Bently Nevada	330101-00-11-15-12-CN	Bently Nevada	330101-00-09-10-02-05
Bently Nevada	330101-00-30-20-12-05	Bently Nevada	330101-00-12-10-02-CN	Bently Nevada	330101-00-20-15-12-05
Bently Nevada	330101-00-33-10-12-05	Bently Nevada	330101-00-12-10-12-CN	Bently Nevada	330101-00-18-20-12-05
Bently Nevada	330101-00-40-20-12-05	Bently Nevada	330101-00-12-20-12-CN	Bently Nevada	330101-00-18-15-12-05
Bently Nevada	330101-00-41-15-12-05	Bently Nevada	330101-00-13-10-12-CN	Bently Nevada	330101-00-20-10-02-05
Bently Nevada	330101-00-43-15-12-05	Bently Nevada	330101-00-13-15-12-CN	Bently Nevada	330101-00-18-05-02-05
Bently Nevada	330101-00-45-20-12-05	Bently Nevada	330101-00-15-20-12-05	Bently Nevada	330101-00-16-05-02-05
Bently Nevada	330101-00-20-10-12-05	Bently Nevada	330101-00-09-10-02-05	Bently Nevada	330101-00-20-10-01-05
Bently Nevada	330101-00-08-20-02-CN	Bently Nevada	330101-00-17-20-12-05	Bently Nevada	330101-00-12-10-02-05

System Calibration and Options

The 3300 XL 8 mm Proximity Transducer System offers flexibility in setup and calibration. One-meter systems are designed without the use of an extension cable, ensuring a straightforward configuration. By default, Proximitor sensors are factory calibrated to AISI 4140 steel, but users may request calibration to alternative target materials to match specific operational needs, providing adaptability across different applications.

When applying the 3300 XL 8 mm system for tachometer or overspeed protection measurements, it is important to consult the dedicated Bently Nevada Applications Note. This document outlines the key factors to consider when using eddy current proximity probes for overspeed scenarios, ensuring accurate and reliable measurement while maintaining safety and system integrity in critical machinery monitoring.

The 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. Despite differences in packaging, the Proximitor Sensor fits the same 4-hole mounting pattern and space requirements when proper cable bend radius is maintained. However, when mixing XL and non-XL components, overall system performance is limited to the specifications of the non-XL 3300 series, ensuring compatibility while recognizing performance constraints.
