Exact-configuration information for machinery monitoring procurement and replacement checks

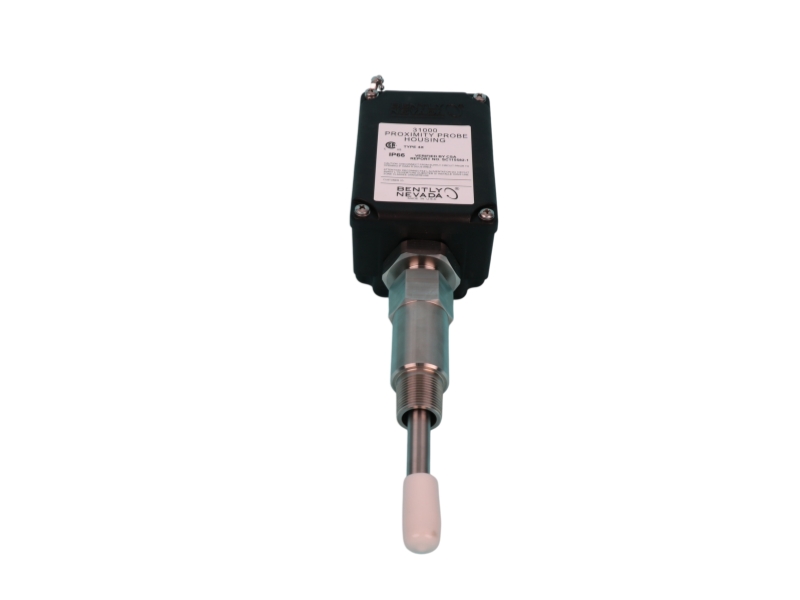

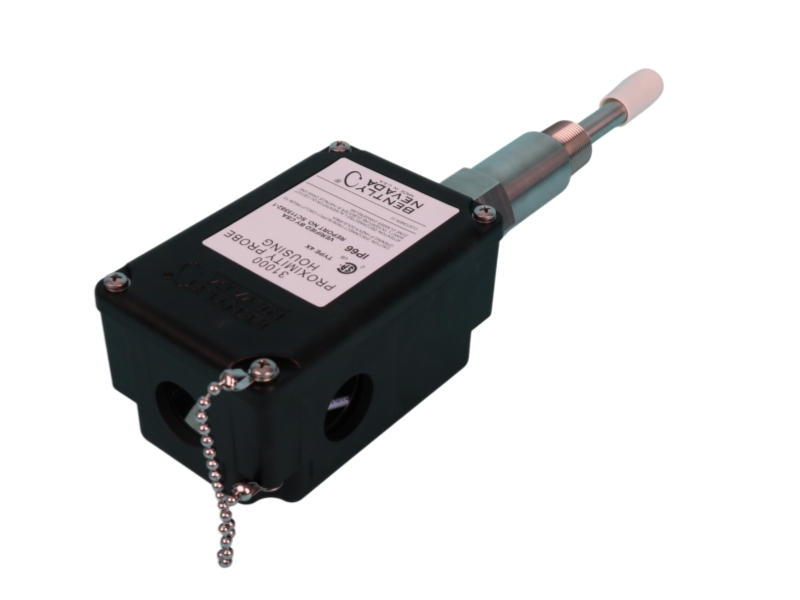

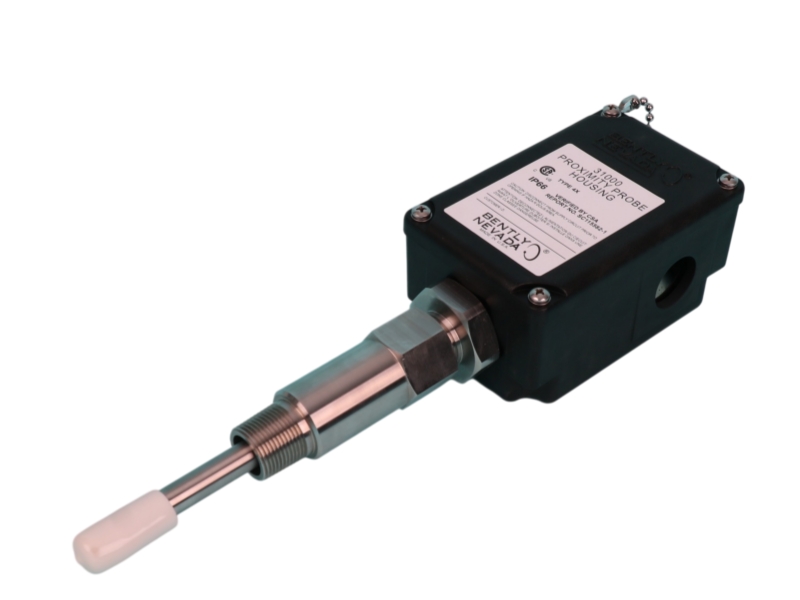

Bently Nevada 31000-28-10-15-040-03-02 is an English 31000 proximity probe housing assembly configured around a 3300 XL 8 mm probe with multiple approvals. The complete code specifies a 1.0 m probe cable, a 1.5 in standoff adapter, 4.0 in probe penetration, the option-03 fitting package, and a 3/4-14 NPT mounting thread. The housing protects the probe connection while supporting controlled installation at the machine case. Replacement planning should verify every suffix, sleeve and standoff dimensions, required penetration, conduit arrangement, cable-seal range, mounting thread, probe-to-system compatibility, installation orientation, and readable housing and probe labels before ordering.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 31000-28-10-15-040-03-02 |
| Product Type | English proximity probe housing assembly |
| Housing Series | 31000 |
| Probe Option | 28 — 3300 XL 8 mm probe, multiple approvals |
| Probe Cable Length | 1.0 m (39 in) |
| Standoff Adapter Length | 1.5 in (38 mm) |
| Probe Penetration | 4.0 in (approximately 102 mm) |
| Fittings Option | 03 — two plugs, one 3/4-14 NPT fitting, one stainless-steel reducer and one cable seal grip |
| Cable Seal Grip Ranges | 1/8–3/16 in; 1/4–5/16 in; 5/16–3/8 in |
| Mounting Thread | 3/4-14 NPT |
| Country of Origin | USA |
| Use Case | Fit Consideration |
|---|---|
| Protected probe installation | Encloses the probe connection at machinery housings where an English-thread assembly is specified. |
| 3300 XL 8 mm integration | Uses the exact probe and cable configuration identified by option 28 and option 10. |
| Machine-case mounting | Requires confirmation of standoff, penetration and 3/4-14 NPT engagement. |
| Maintenance replacement | Compare housing, sleeve, fittings and probe labels against the installed assembly. |
The current official Bently Nevada / Baker Hughes technical documents reviewed confirm the product family or listed identifier but do not state an exact lifecycle status for 31000-28-10-15-040-03-02. No Active, Obsolete or Discontinued conclusion is assigned.
It identifies a 3300 XL 8 mm probe with multiple approvals for the 31000 housing assembly.
The complete code specifies a 1.5 in standoff adapter and 4.0 in probe penetration.
It specifies two plugs, a 3/4-14 NPT fitting, a 3/4-14 to 1/2-14 NPT stainless-steel reducer and a cable seal grip with supported grommet sizes.
No. Mounting thread, penetration, standoff, sleeve support and clearance must be reviewed for the actual installation.
The current official housing datasheet does not state an exact lifecycle status for this complete order code, so no discontinuation conclusion is assigned.
Availability of housing, probe, fittings, labels and packaging photographs can be checked before shipment.
