Long-sleeve 24701 configuration supplied without probe or probe cable

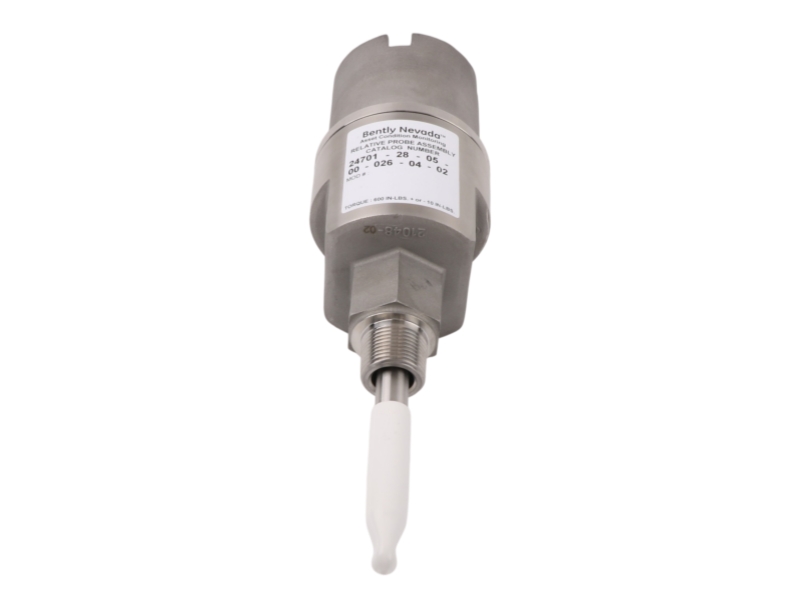

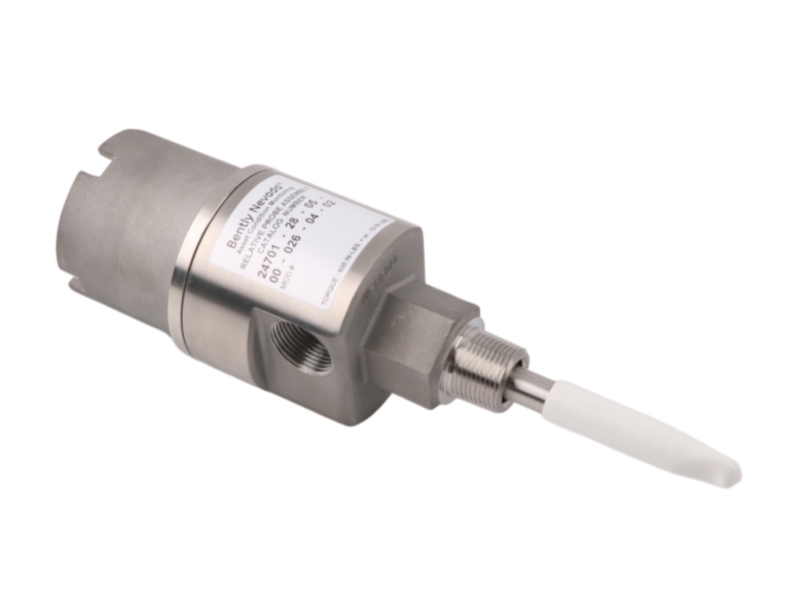

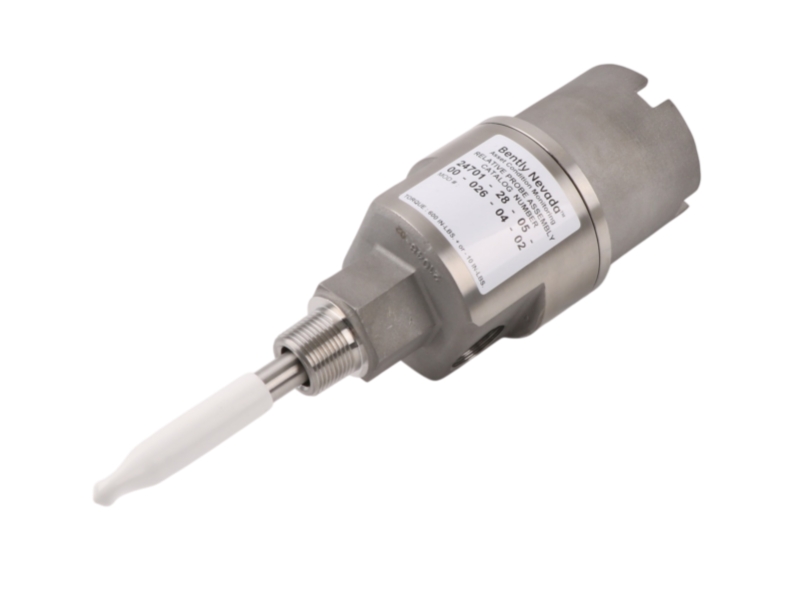

Bently Nevada 24701-00-00-00-290-03-02 is a stainless steel externally mounted proximity probe housing assembly. The coded configuration is supplied without probe or probe cable, uses no standoff adapter, and specifies 29.0 in probe penetration, the option-03 fitting package, and a 3/4-14 NPT mounting thread. Its 303 stainless steel body and 304 stainless steel sleeve support demanding machinery environments while providing access for future probe installation and adjustment. Because the configured sleeve length exceeds 12 in, the official datasheet requires additional sleeve support near the probe to prevent resonance. Procurement must match mounting geometry, fittings, support, intended probe and associated transducer system.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada |
|---|---|
| Complete Part Number | 24701-00-00-00-290-03-02 |
| Product Type | Stainless steel proximity probe housing assembly |
| Product Series | 24701 |
| Probe Option | Probe not required |
| Probe Cable Option | Probe cable not required |
| Standoff Adapter | None |
| Probe Penetration | 29.0 in |
| Fitting Arrangement | One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets |
| Mounting Thread | 3/4-14 NPT |
| Body Material | 303 stainless steel |
| Sleeve Material | 304 stainless steel |
| Typical Mass | 1.8 kg (4.1 lb) without fittings |
| Compliance | API 670 compliant externally mounted proximity probe housing |
| Country of Origin | USA |
| System Role | External stainless steel enclosure and 29.0 in sleeve for a separately selected reverse-mount proximity probe |
|---|---|
| Typical Application | Machinery vibration or position monitoring points requiring long probe penetration and corrosion-resistant construction |
| Maintenance Use | External access for probe installation, adjustment and future replacement |
| Long-Sleeve Requirement | Additional sleeve support near the probe is required because the configured length exceeds 12 in |
| Procurement Focus | Match the complete suffix, mounting thread, fitting package, sleeve support, intended probe and transducer-system components |
The official 24701 ordering information confirms this exact coded configuration, but no manufacturer lifecycle classification for the complete part number was identified in the official documentation reviewed. No Active, Discontinued or replacement conclusion is inferred. This order code is a 24701 configuration, not a CA24701 configuration, and therefore must not be described as the CSA explosion-proof housing version.
