20015x MACHINERY CONDITION MONITORING
Wide-frequency vibration sensing with a defined mounting stud and multiple hazardous-area approvals.
IDENTITY SNAPSHOT
Series: 20015x
Mounting: Option 06
Approvals: Option 05

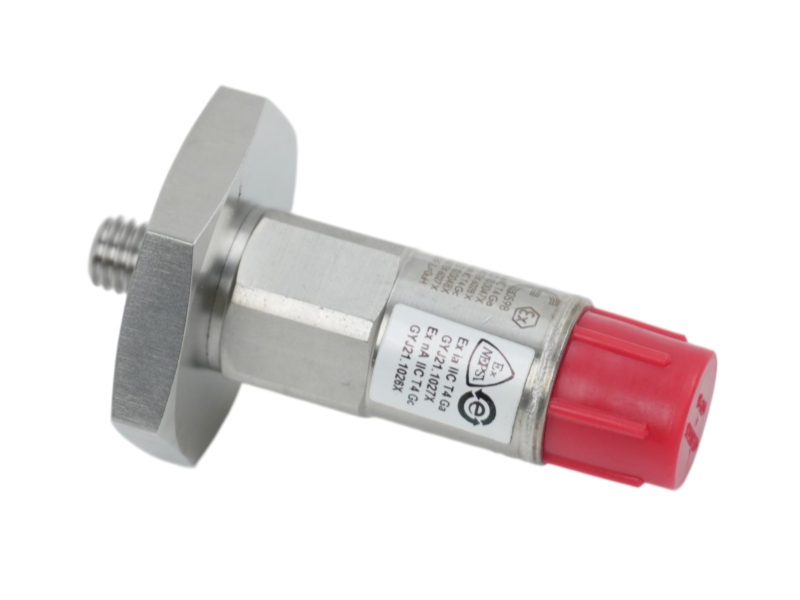

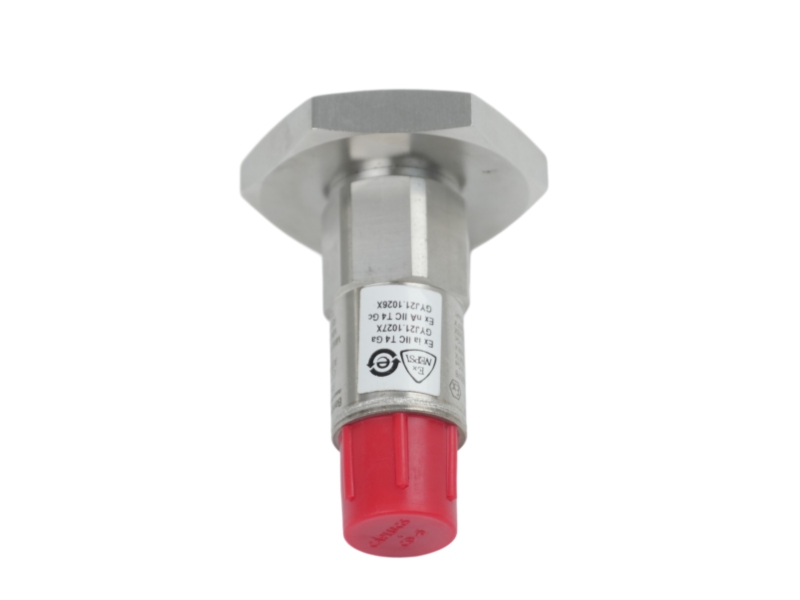

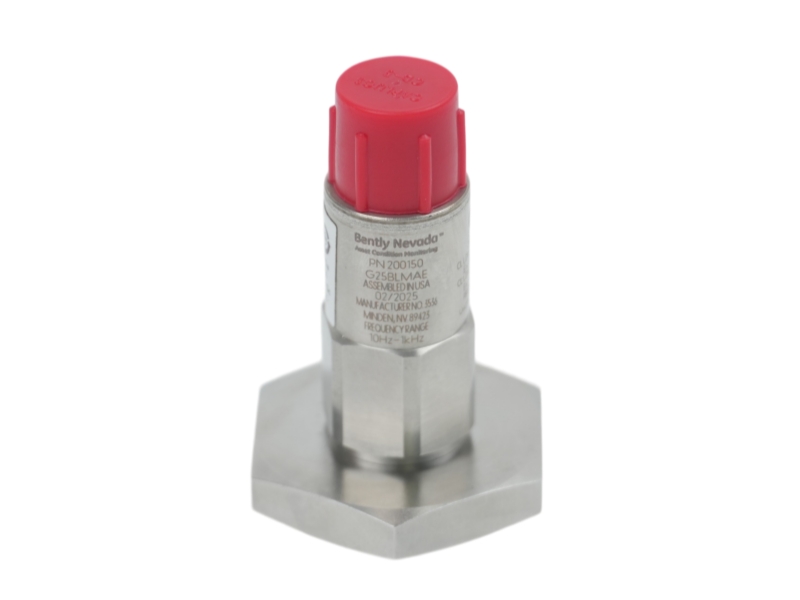

The Bently Nevada 200150-06-05 is a 20015x Series general-purpose, wide-frequency, case-mounted seismic accelerometer for machinery vibration monitoring. It is designed for Trendmaster ProTIMs and also operates with the Trendmaster 2000 system. The hermetically sealed 316L stainless-steel housing contains a ceramic shear sensing element, a top-mounted five-pin connector and a 3/8-24 female mounting thread. In this complete order code, mounting option 06 specifies a 3/8-24 to 1/4 NPT, 3/4-inch hex stud, while approval option 05 specifies multiple CSA, ATEX and IECEx approvals. Replacement review should confirm the full suffix, mounting thread, monitor interface, cable, approvals and nameplate.
Condition: Original new
Availability: In stock
Lifecycle: Not stated in the current official datasheet
Warranty: With 1 year warranty
Shipping: Worldwide options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada |
|---|---|
| Complete Part Number | 200150-06-05 |
| Series | 20015x Accelerometers |
| Product Type | General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer |
| Sensitivity at 80 Hz | 10.2 mV/(m/s²) (100 mV/g), ±12% |
| Measurement Range | ±245 m/s² (±25 g) |
| Frequency Range | 10 to 1000 Hz (600 to 60,000 cpm), ±10% at 80 Hz |
| Mounted Resonant Frequency | Greater than 20 kHz |
| Amplitude Linearity | ±2% from 1 to 10 g peak |
| Transverse Sensitivity | 7% maximum |
| Excitation Voltage | 4.7 to 5.5 V DC |
| Quiescent Current | Less than 800 µA |
| Output Bias Voltage | +2.5 ±0.23 V DC |
| Electrical Isolation | 600 Vrms |
| Operating Temperature | -40°C to +105°C |
| Housing / Sensing Element | Hermetically sealed 316L stainless steel / ceramic shear |
| Electrical Connector | Top-mounted 5-pin, 1/2-20 |
| Mounting Thread | 3/8-24 female |
| Mounting Option 06 | 3/8-24 to 1/4 NPT, 3/4-inch hex stud |
| Approval Option 05 | Multiple approvals: CSA, ATEX and IECEx |
| Dimensions | 17.5 mm hex × 45.7 mm height |
| Typical Net Weight | 58 g |
| Country of Origin | USA |
General applications using the standard acceleration-to-velocity channel type (-01).
The 200150 accelerometer is identified for operation with the Trendmaster 2000 system.
200100 flexiTIM, 89130-01 TIM and 1900/25 or 1900/27 monitors.
Proceed only after matching the suffix, stud, approvals, cable and monitor configuration.
| 01 · Identity | Match every character in 200150-06-05 against the installed sensor and label photo. |
|---|---|
| 02 · Mounting | Confirm the 3/8-24 female thread and option 06 stud suit the machine mounting point. |
| 03 · Electrical Interface | Check excitation, differential signal, five-pin connector and monitoring interface. |
| 04 · Cable | Review mating cable, connector condition, routing and environmental sealing. |
| 05 · Approvals | Verify option 05 markings satisfy the actual installation area and site requirements. |
| 06 · Evidence | Review product, label, connector, stud and packaging photos before approval. |
The current Bently Nevada datasheet confirms the 200150 family and complete 200150-06-05 ordering configuration but does not state an official lifecycle classification. No Active, Classic, obsolete or discontinued conclusion is applied.
A 200150 general-purpose accelerometer with mounting option 06 and approval option 05.
A 3/8-24 to 1/4 NPT, 3/4-inch hex mounting stud.
Check the Trendmaster channel, TIM or flexiTIM interface, monitor, cable and connector.
The current official datasheet does not state a lifecycle classification.
Sensor, connector, stud, label and packaging photos can be requested before approval.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
