PM3326B-6-1-2-E 80026-529-01 Product datasheet

PM3326B-6-1-2-E 80026-529-01 Functional Description

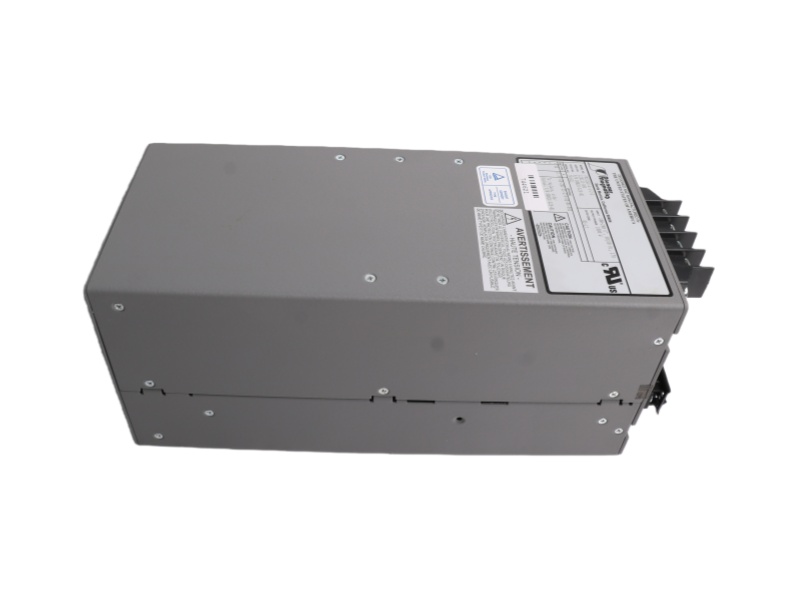

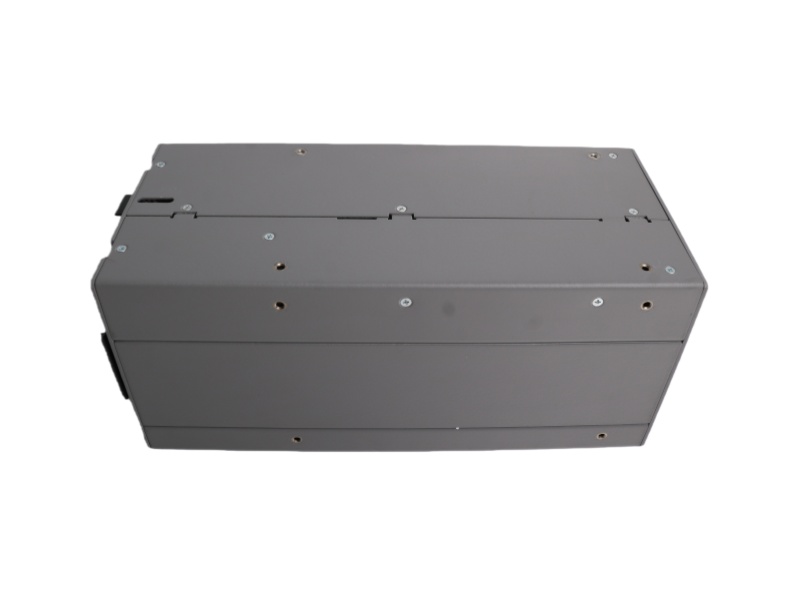

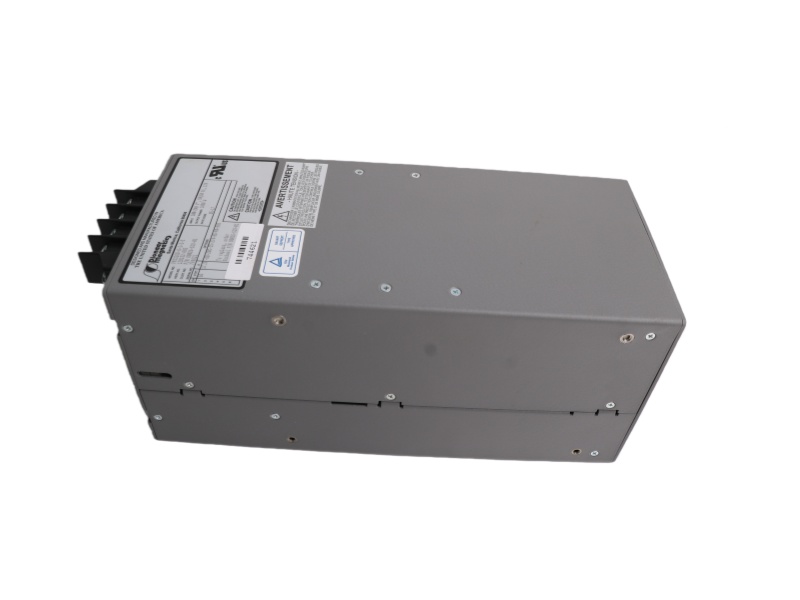

The PM3326B-6-1-2-E 80026-529-01 Allen Bradley POWER SUPPLY is a robust industrial power supply module engineered for demanding automation applications. This unit delivers reliable performance with its 17-amp capacity and wide input voltage range of 100-240V AC at 50/60Hz, making it suitable for global deployment. The Allen Bradley PM3326B-6-1-2-E 80026-529-01 maintains stable 24V DC output with current delivery between 6-8 amps, providing typical output power of 144-192 watts for continuous industrial operation.

Manufactured in the United States with worldwide shipping capabilities, the High power capacity PM3326B-6-1-2-E 80026-529-01 Allen Bradley features a compact design measuring 12.8×31.2×12.8 cm and weighs 4.46 kg, ensuring easy integration into control panels and equipment enclosures. The construction quality of it reflects Allen-Bradley's commitment to durability, utilizing industrial-grade components that withstand harsh operating conditions while maintaining consistent electrical performance across the specified temperature range from -25°C to +70°C.

The thermal management system in the Allen Bradley PM3326B-6-1-2-E 80026-529-01 wide input voltage range ensures optimal heat dissipation during continuous operation, preventing overheating even at maximum load conditions. This power supply incorporates multiple protection features including overcurrent protection, short-circuit protection, and overtemperature shutdown, safeguarding both the module itself and connected equipment from electrical faults. The intelligent design of it allows for seamless operation in various industrial environments, from manufacturing facilities to process plants where stable power is critical.

Compliance with international standards and certifications makes the Power module controller Allen Bradley PM3326B-6-1-2-E 80026-529-01 suitable for diverse industrial applications, particularly in motor control centers, automation systems, and machinery requiring reliable DC power. The module's efficient power conversion minimizes energy loss while providing clean, stable output for sensitive control electronics. This combination of reliability, protection features, and operational efficiency establishes the it as a trusted power solution for industrial automation systems where uninterrupted operation is essential for production continuity and equipment protection.
