MOX12-P3509B 80026-173-23 Product datasheet

MOX12-P3509B 80026-173-23 Functional Description

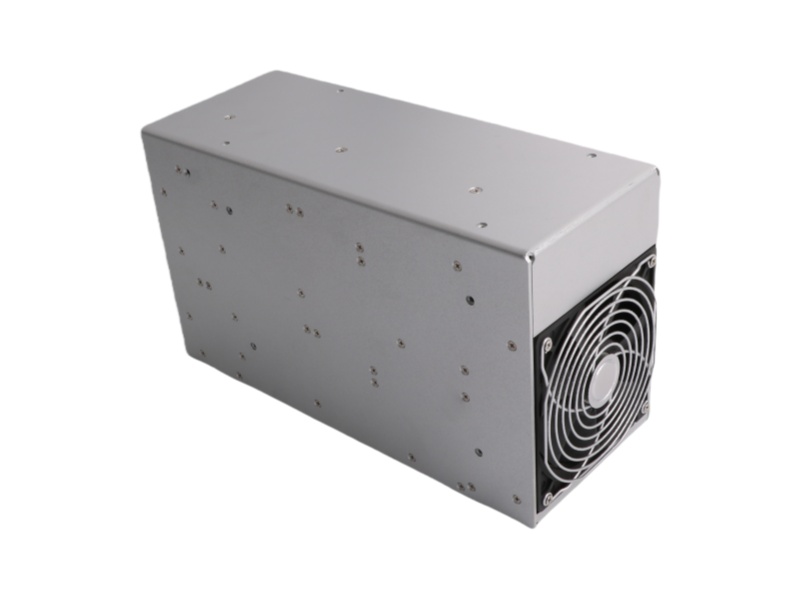

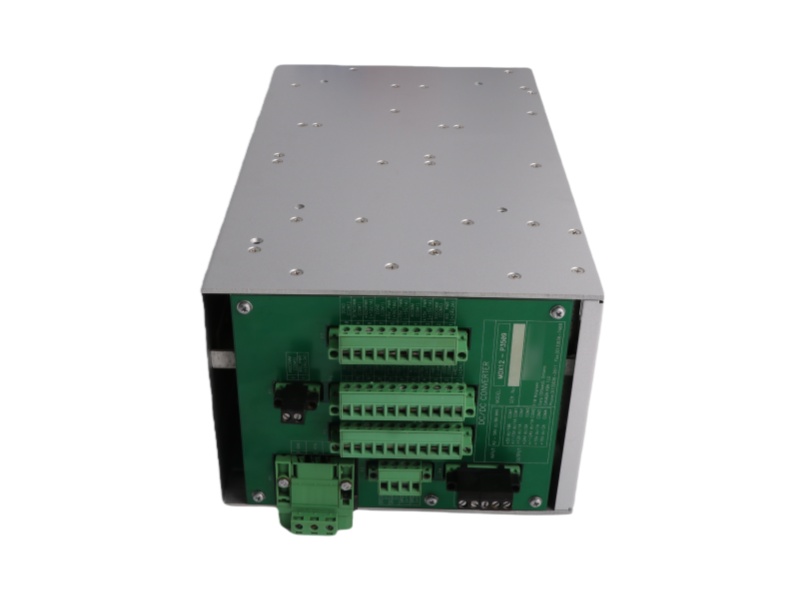

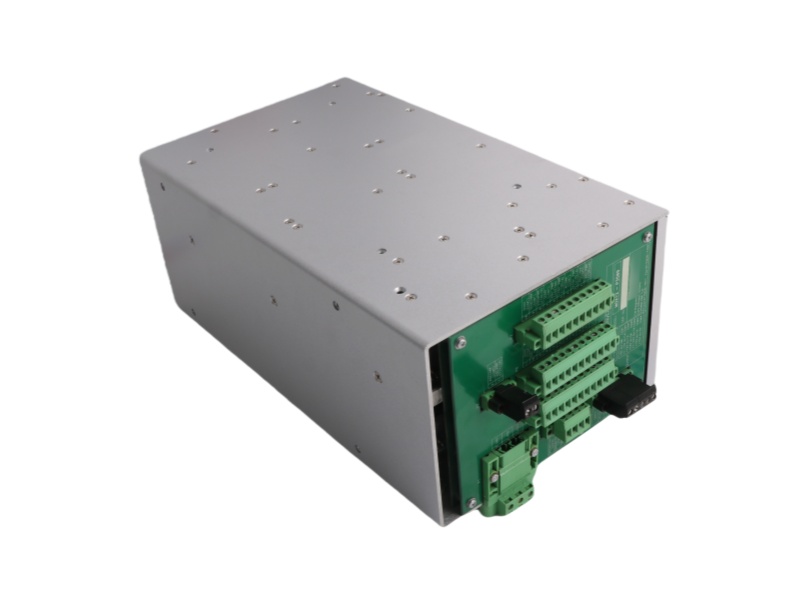

The MOX12-P3509B 80026-173-23 Allen Bradley POWER SUPPLY represents a sophisticated switching power supply solution engineered for industrial automation systems. This versatile power module delivers multiple output voltages including +5V, ±15V, +12V, and ±24V DC, providing comprehensive power distribution for complex control systems. The robust metal enclosure of the Allen-Bradley MOX12-P3509B 80026-173-23 ensures superior electromagnetic compatibility and mechanical protection in demanding industrial environments, making it suitable for installation in control panels and machinery requiring reliable multi-voltage power sources.

Manufactured in the United States with global distribution through established supply chains, the METAL ENCLOSURE MOX12-P3509B 80026-173-23 Allen Bradley features a standardized form factor measuring 12.8×31.2×12.8 cm with a weight of 4.46 kg. The unit accepts wide-range input voltage from 100-240V AC, accommodating various international power standards while maintaining stable operation. The engineering design of it prioritizes operational efficiency, achieving greater than 90% energy conversion efficiency across typical load conditions, significantly reducing power consumption and heat generation during continuous operation.

The thermal performance characteristics of the Allen Bradley MOX12-P3509B 80026-173-23 8 Amp 42/258 Volts Switching Power Supply enable reliable functionality across an extensive temperature spectrum from -25°C to +70°C, ensuring consistent power delivery in both climate-controlled and harsh industrial settings. This operational resilience is achieved through advanced cooling technologies and carefully selected components that maintain optimal thermal conditions even under maximum load scenarios. The design philosophy behind it emphasizes long-term reliability with minimal maintenance requirements, effectively reducing total cost of ownership for industrial power infrastructure.

Within industrial control systems, the implementation of the advanced switching power supply Allen Bradley MOX12-P3509B 80026-173-23 provides critical power conditioning and distribution functions for various control components including processors, I/O modules, and communication interfaces. The unit incorporates comprehensive protection features including overvoltage protection, short-circuit protection, and overtemperature shutdown mechanisms that safeguard connected equipment against power anomalies. This robust protection approach establishes it as an essential component for maintaining operational integrity in automation systems where power quality directly influences system reliability and production efficiency.
