1771-OZL Product datasheet
|
Model number: |
1771-OZL |
|
Module Type： |
Digital Output Module |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
PLC-5 |
|
Lead time： |
In Stock |
|
Weight: |
0.9kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x14.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1771-OZL Functional Description

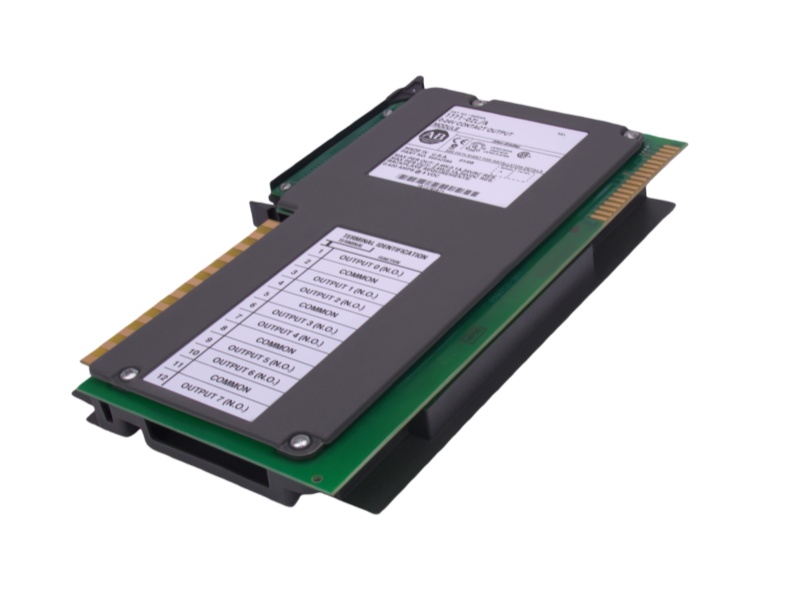

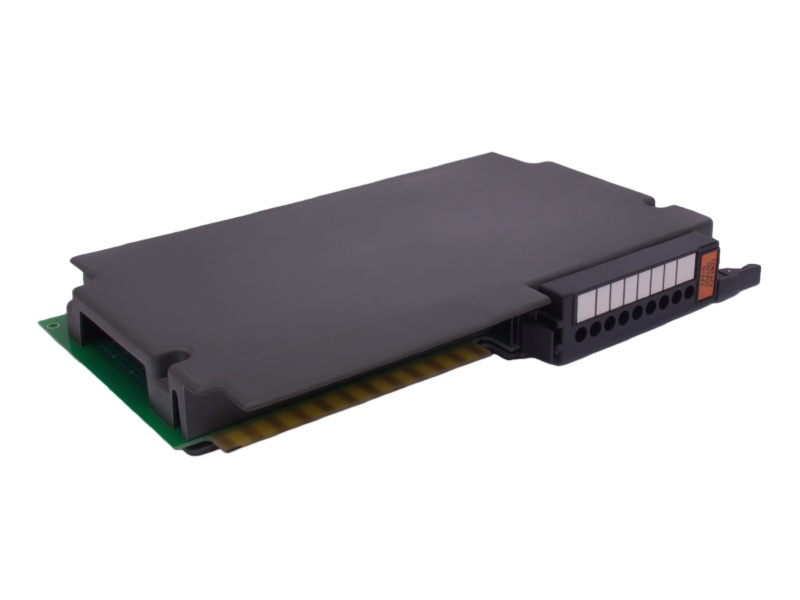

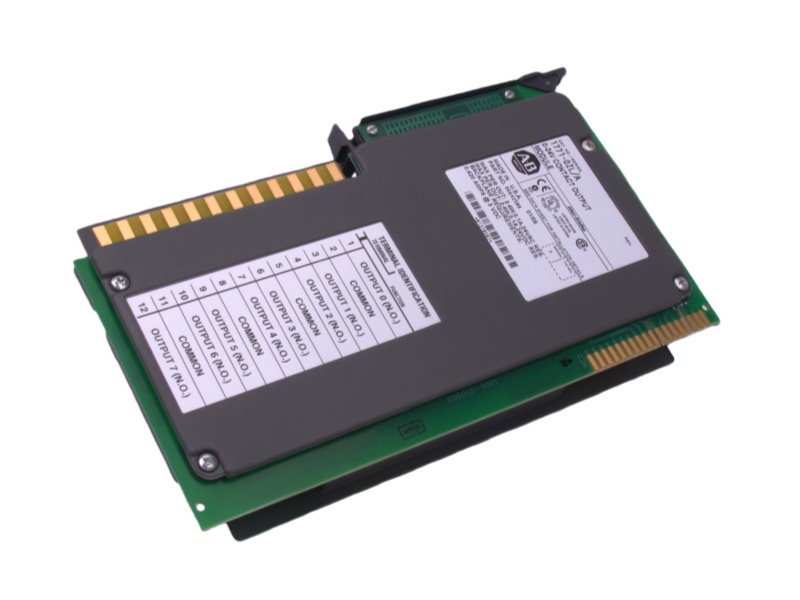

The Allen-Bradley 1771-OZL Digital I/O Relay Contact Output Modules is a digital output module for the PLC-5 system, utilizing dry-reed relay technology. It provides eight normally open, Form A contact outputs, which are organized into four isolated groups with independent commons for flexible wiring.
A key feature of the 1771-OZL OUTPUT MODULE Allen-Bradley is the hermetically sealed relays, which offer protection in challenging industrial environments and contribute to a fast switching performance.
Each output on the Digital Output Module 1771-OZL ROCKWELL is equipped with a status indicator, providing clear visual feedback on the state of the relay contacts for easy monitoring and troubleshooting.
The AB Refurbished PLC-5 DIGITAL CONTACT OUTPUT MODULE 1771-OZL is designed for low-voltage, low-power applications, with a voltage rating of 0-24V AC/DC and a current rating of 100 mA per point. This makes the Allen-Bradley 1771-OZL Digital Output Module well-suited for interfacing with sensitive control devices where electrical isolation and signal integrity are paramount.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Allen Bradley |
018-001770 |
Allen Bradley |
1336-BDB-SP6A |
Allen Bradley |
1336-C003-EOD |
|
Allen Bradley |
1203-CN1 |
Allen Bradley |
1336-BDB-SP5D |
Allen Bradley |
1336F-B015-AA-EN |
|
Allen Bradley |
1203-GD1 |
Allen Bradley |
1336-BDB-SP5C |
Allen Bradley |
1336F-B025-AA-EN |
|
Allen Bradley |
1203-GU6 |
Allen Bradley |
1336-BDB-SP38A |
Allen Bradley |
1336-BDB-SP17C 74101-482-51 |
|
Allen Bradley |
125760-01 |
Allen Bradley |
1336-BDB-SP30D |
Allen Bradley |
1336-BDB-SP29C 74101-169-53 |
|
Allen Bradley |
1305-BA01A-HA2 |
Allen Bradley |
1336-B005-EAD-FA2-L1-S1 |
Allen Bradley |
1336-BDB-SP29C 74101-169-53 |
|
Allen Bradley |
1305-BA03A |
Allen Bradley |
1326AB-B720E-S2L |
Allen Bradley |
1336-BDB-SP29D 74101-169-53 |
|
Allen Bradley |
1305-BA09A-HA2 |
Allen Bradley |
1326AB-B515E-S2K5L |
Allen Bradley |
1336-BDB-SP30D 74101-169-54 |
|
Allen Bradley |
1305-KBA09 |
Allen Bradley |
119524 129708-01 |
Allen Bradley |
1336-BDB-SP34D 77101-169-64 |
|
Allen Bradley |
1326AB-B430E-21 |
Allen Bradley |
119524 119522 129708-01 |
Allen Bradley |
1336-BDB-SP4D 74103-244-54 |
Dry-Reed Relays
Dry-reed relays are noted for their speed. These relays are well-suited for low-voltage, low-power applications. They are hermetically sealed and thus offer protection in noxious environments. Dry reeds, however, cannot handle surge currents due to their low-voltage design. Allen-Bradley modules that use dry-reed relays are the 1771-OYL and 1771-OZL modules.
Mercury-wetted relay
The mercury-wetted relay is a power version of the dry-reed switch. These relays feature long life and high contact reliability because the mercury re-coats the contacts on every operation. Mercury-wetted relays are also hermetically sealed and have no bounce on outputs and offer a clean switch. Of the three types of relays,
mercury-wetted relays are the slowest (10 ms). ATTENTION: The 1771-OX module contains mercury-wetted relays. At the end of the equipment's life, it should be collected separately from any unsorted municipal waste.
