EPC50B 3183045486 Overview

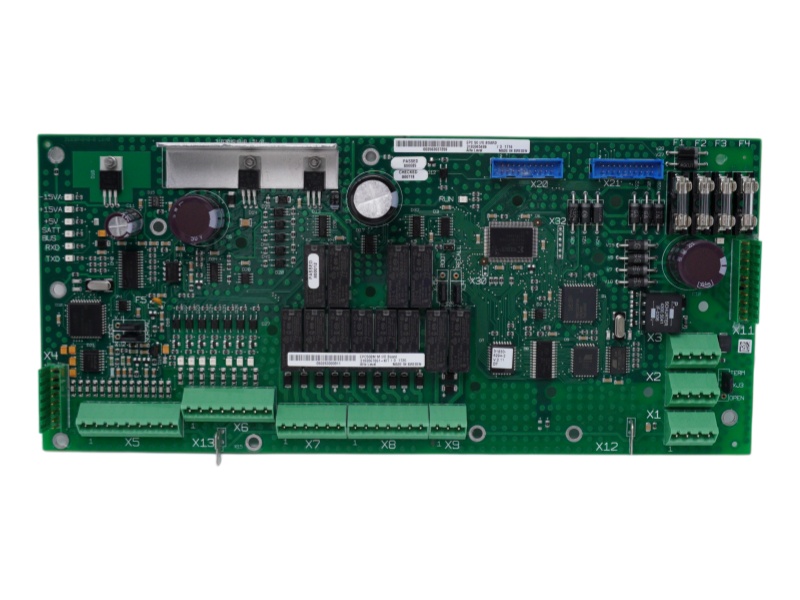

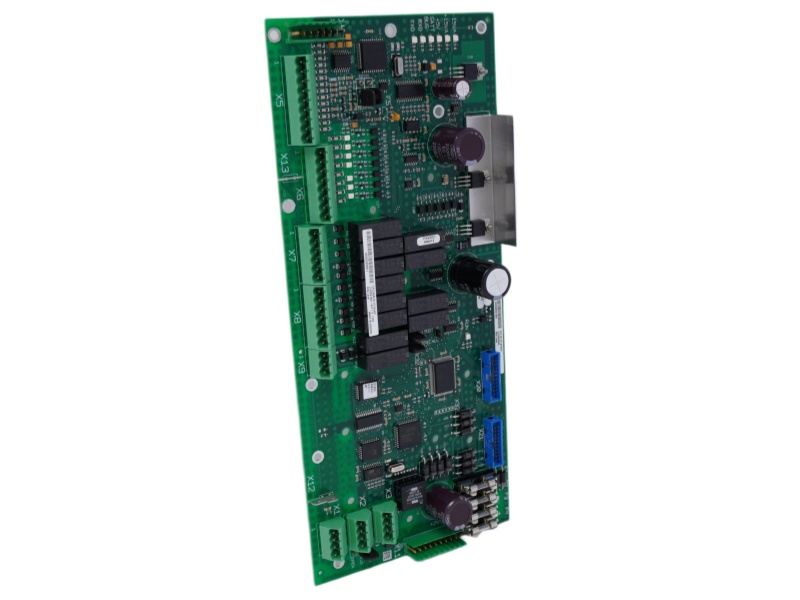

The I/O Board EPC 50B 3183045486 Alfa Laval I/O board provides reliable digital and analog signal processing for industrial control systems. It supports 24 V DC, 4–20 mA, and 0–10 V inputs in a compact design.

Technical Data Summary

Versatile Signal Support: Accepts digital inputs and both 4–20 mA / 0–10 V DC analog signals for flexible integration.

Robust Output Capacity: Provides up to 2 A per digital output channel for reliable device control.

Compact & Lightweight: Weighs only 0.44 kg with a small footprint, simplifying installation in tight spaces.

Low Power Consumption: Operates efficiently on just 5–10 W, reducing energy demands.

Wide Environmental Tolerance: Functions reliably in temperatures from 0°C to +55°C and up to 95% humidity.

Stable Power Input: Accepts 24 V DC (±10%) input, ensuring consistent performance despite voltage fluctuations.

FAQ

Q1: What types of analog input signals does this board support?

A1: It supports analog inputs in the range of 4–20 mA or 0–10 V DC.

Q2: What is the power consumption of the EPC50B?

A2: The power consumption is approximately 5 to 10 W.

Q3: What are the operating temperature limits for this I/O board?

A3: It is rated for operation between 0°C and +55°C (32°F to 131°F).

Q4: What is the maximum output current per digital channel?

A4: Each digital output channel is rated for up to 2 A at 24 V DC.

Q5: What are the physical dimensions and weight of the unit?

A5: Its estimated shipping size is 33.7 x 15.5 x 3.5 cm, and it weighs 0.44 kg.
