CPCI-6930D Overview

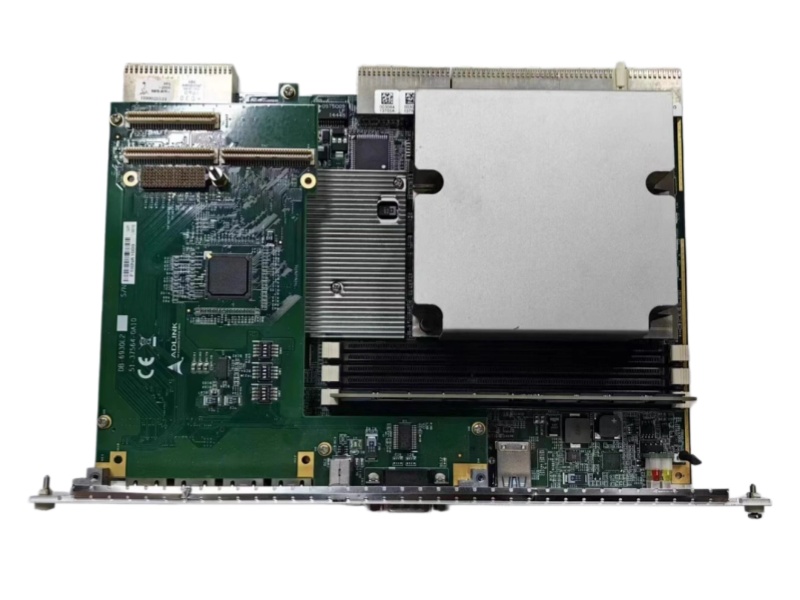

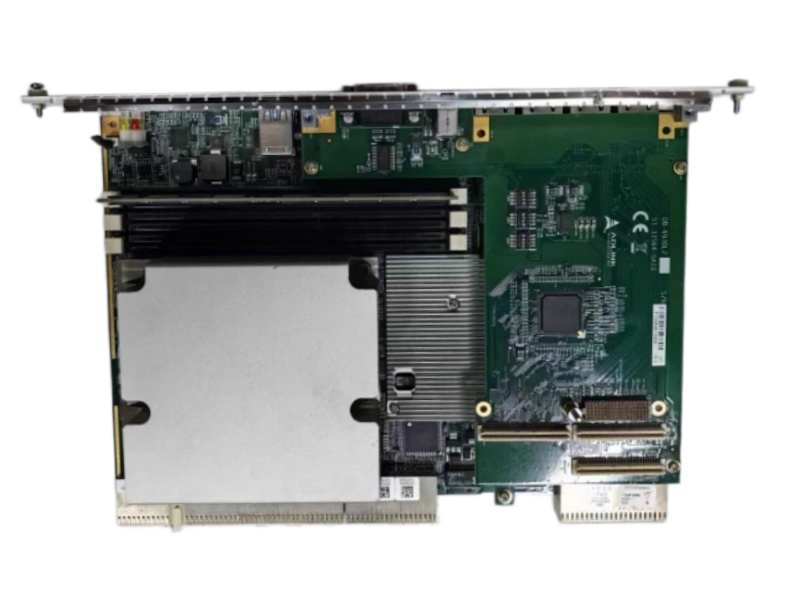

The CPCI-6930D ADLINK control board is a high-performance 6U CompactPCI processor blade featuring Intel Xeon E5-2400 v2 processors, up to 192GB DDR3 memory, and four GbE ports for demanding industrial applications.

Technical Data Summary

Processor Options: Supports Intel Xeon E5-2400 v2 processors with up to 10 cores, 1.8-2.0 GHz, and 25MB LLC.

Memory Capacity: Features three DDR3-1600 ECC RDIMM slots supporting up to 192GB system memory.

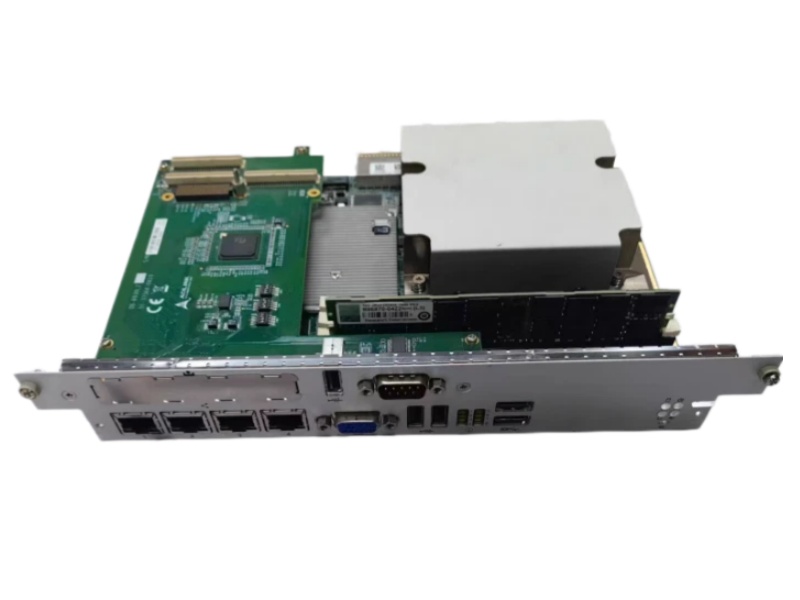

Front Panel I/O: Provides two USB 3.0 ports, four Gigabit Ethernet ports, and one DB-9 RS-232 serial port.

Expansion Site: Includes one PMC site (PCI) or PCI-Express x8 XMC site for flexible I/O expansion.

Storage Options: Offers onboard SATA NAND Flash with optional CF/CFast socket and SAS support for 2.5" drive.

CompactPCI Compliance: Supports PICMG 2.0, 2.1, 2.9, and 2.16 standards with system master or satellite mode operation.

FAQ

Q1: What processors are supported by the CPCI-6930D?

A1: It supports various LGA1356 Intel Xeon E5-2400 family processors, ranging from quad-core to ten-core options with TDP from 50W to 70W.

Q2: What is the maximum memory capacity?

A2: The board supports up to 192GB of DDR3-1600 ECC registered SDRAM via three RDIMM slots.

Q3: What front panel I/O ports are available?

A3: The front panel features two USB 3.0 ports, four Gigabit Ethernet ports, and one DB-9 RS-232 serial port.

Q4: What expansion options does this module offer?

A4: It provides one PMC site (PCI 32/64-bit) or PCI-Express x8 XMC site for flexible I/O expansion.

Q5: Which PICMG standards does the CPCI-6930D comply with?

A5: It complies with PICMG 2.0, 2.1, 2.9, and 2.16 standards, supporting system master, satellite mode, and hot-swap functionality.
