0100-11002 Overview

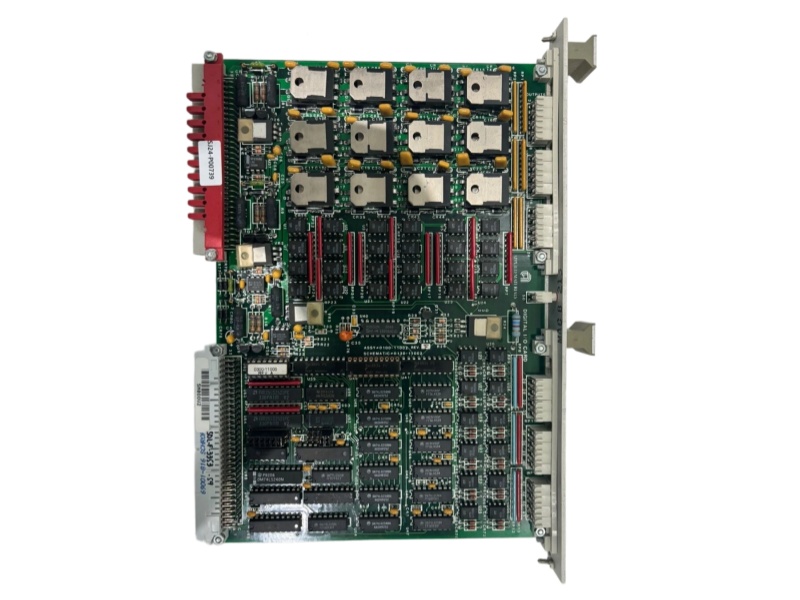

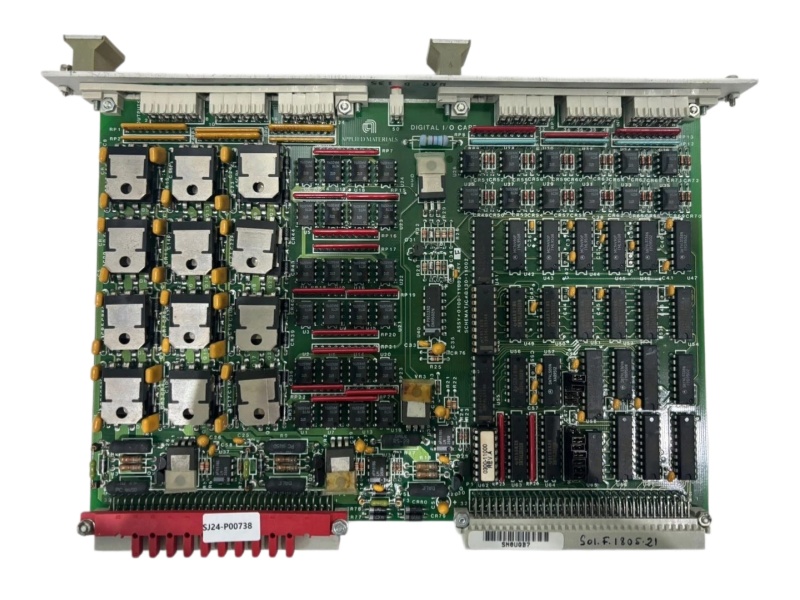

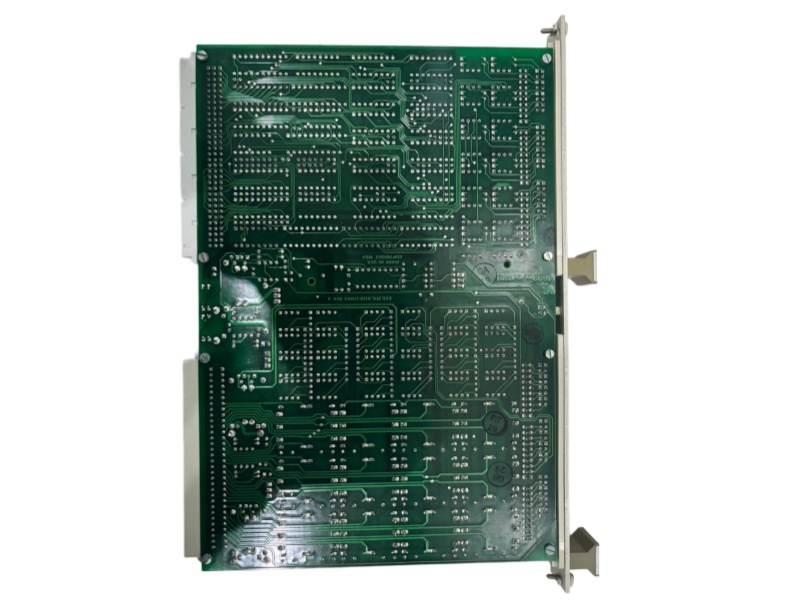

The AMAT 0100-11002 Digital I/O VME Module is a DI/DO PCB card featuring 16 digital inputs and 16 digital outputs. It operates on 24 Vdc with 500 Vdc channel isolation and functions reliably from -10°C to +60°C.

Features and benefits

High Channel Density: Provides 16 digital inputs and 16 digital outputs (32 total channels) for efficient space utilization in control systems.

Robust Isolation: Features 500 Vdc channel-to-channel isolation, protecting against electrical interference and ground loops.

Wide Compatibility: Operates on standard 24 Vdc ±10% supply voltage, simplifying integration with existing industrial power systems.

Industrial Temperature Range: Functions reliably from -10°C to +60°C operating temperature for demanding environments.

Compact Design: Lightweight 0.5 kg PCB card with estimated shipping size of 8x8.6x26.1 cm for easy installation.

Extended Storage Capability: Withstands storage temperatures from -25°C to +70°C, ensuring longevity during equipment downtime.

FAQ

Q1: What is the AMAT 0100-11002 and what are its channel specifications?

A1: It is a Digital I/O PCB Card featuring 16 digital inputs and 16 digital outputs, providing 32 total channels for industrial control applications.

Q2: What is the isolation rating for this I/O board?

A2: It provides 500 Vdc channel-to-channel isolation, protecting against electrical interference and ground loop issues.

Q3: What power supply voltage does this module require?

A3: It operates on a standard 24 Vdc ±10% power supply for reliable performance.

Q4: What are the operating and storage temperature ranges?

A4: Operating temperature is -10°C to +60°C, while storage temperature ranges from -25°C to +70°C for extended equipment longevity.

Q5: What are the physical dimensions and weight of this board?

A5: It weighs 0.5 kg with estimated shipping dimensions of 8 x 8.6 x 26.1 cm, making it compact for control cabinet installation.
