SDCS-CON-H01 3ADT220166R0002 Overview

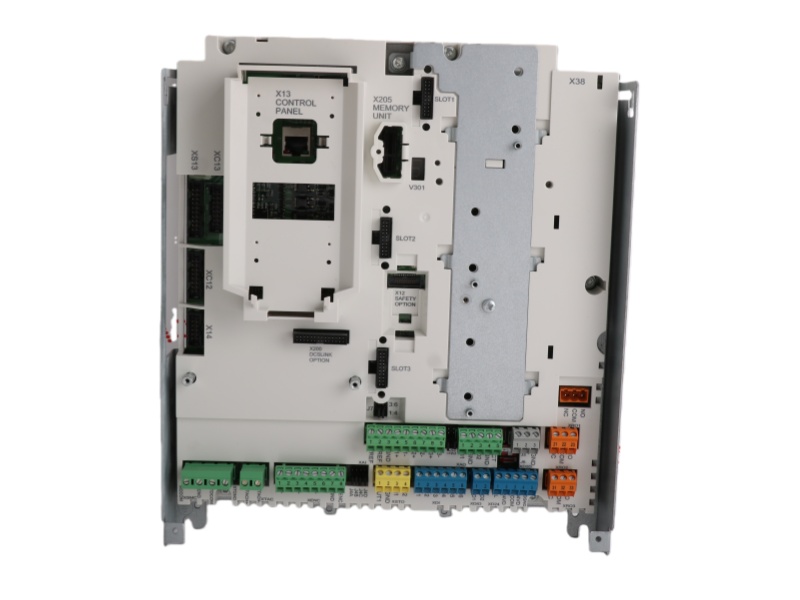

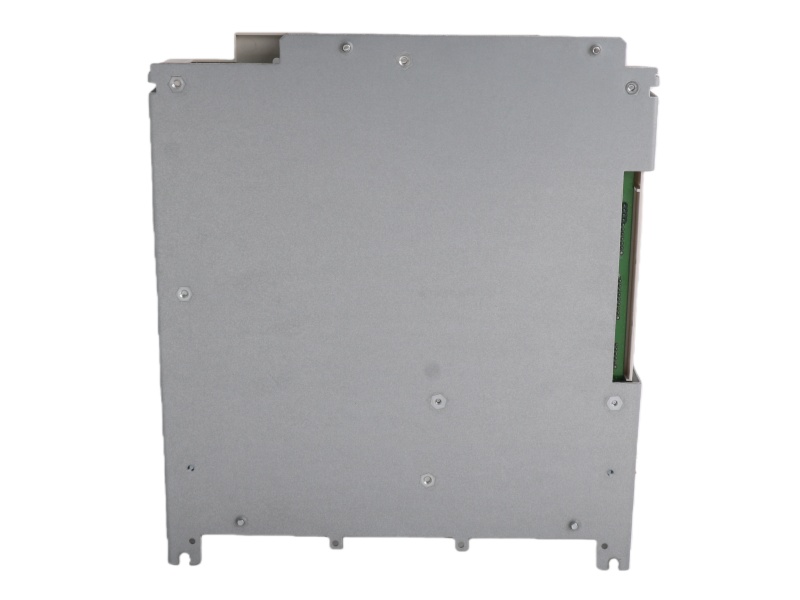

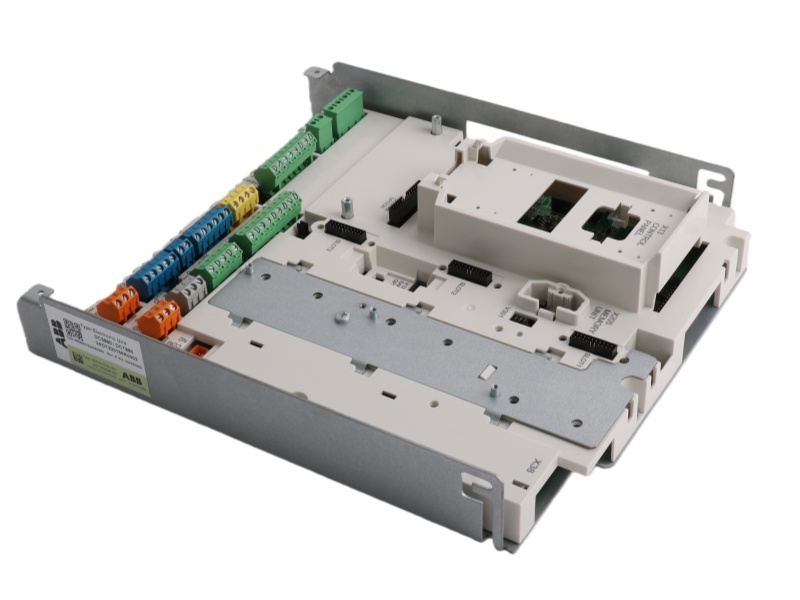

The CONTROL CIRCUIT BOARD ABB SDCS-CON-H01 3ADT220166R0002 is a control circuit board compatible with DCT880-W0x modules. It supports multiple voltage classes, external voltage and current measurement via designated ports, and includes a memory unit for drive application programming.

Environment and certification

Operating Temperature: Rated for a standard range of 0°C to 50°C.

Storage Temperature: Can be safely stored from -20°C to 70°C.

Humidity Range: Operates in 5% to 85% relative humidity (non-condensing).

Power Supply: Designed for dual input voltages of +5V and +12V.

Communications: Features RS-232/RS-485 interfaces for control connectivity.

System Compatibility: Intended for integration within the DCT880 drive control platform.

FAQ

Q1: What is the primary function of this control board?

A1: It is the core control circuit board for ABB's DCT880 drive control platform.

Q2: What voltage classes does it support?

A2: It supports voltage classes 04 (400V), 05 (525V), 07 (690V), and 08 (800V).

Q3: How can external current and voltage be measured?

A3: It uses the dedicated XECT port for external CTs and the XEXVM port for external voltage measurement.

Q4: What software is required for drive application programming?

A4: It must be programmed using Drive Application Builder version 1.0.0.319 or higher.

Q5: What are its standard input voltages?

A5: The board requires standard +5V and +12V input voltages.
