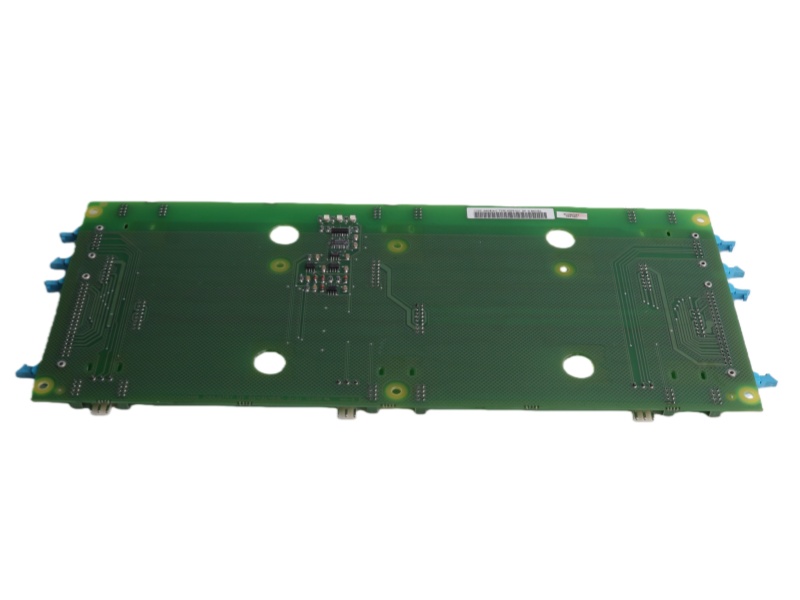

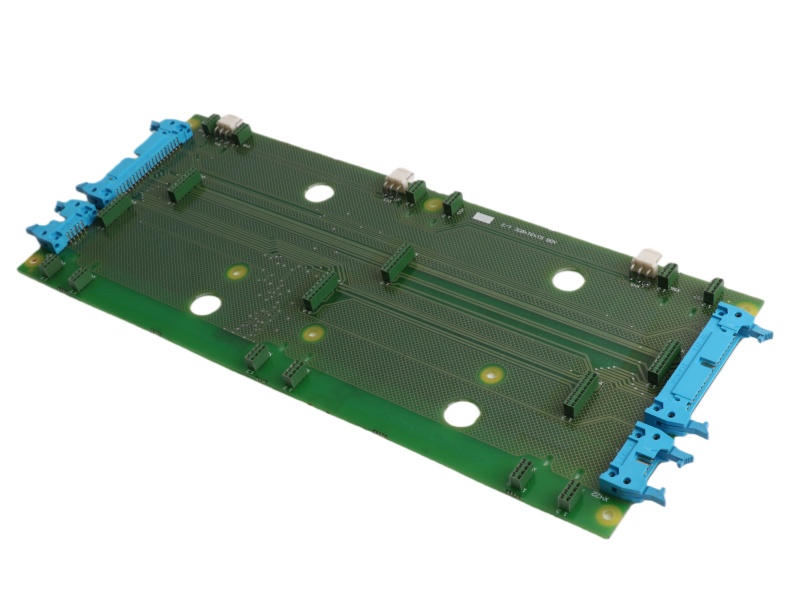

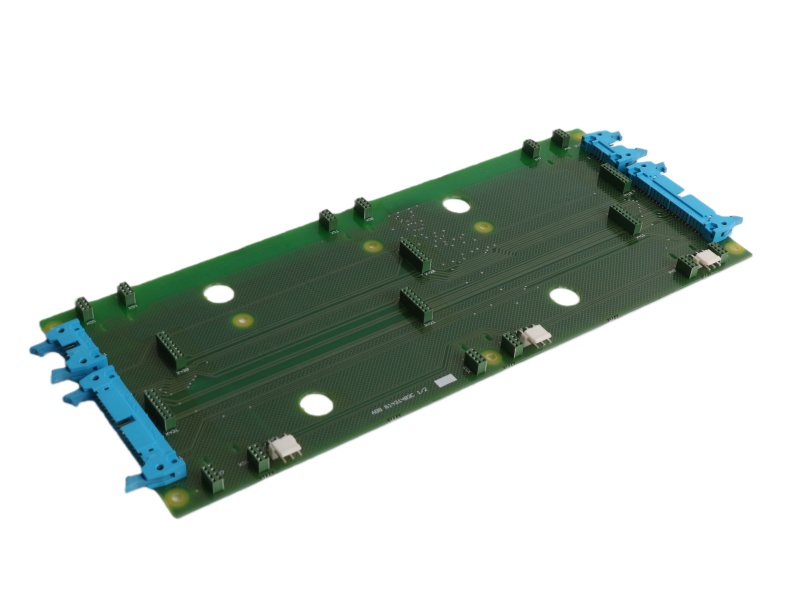

NXPP-03C 64008544 Overview

The ABB NXPP-03C 64008544 control distribution board is a control distribution board designed to provide stable +5V DC power from a 24V DC nominal input. It features robust isolation and operates effectively within a wide temperature range for industrial applications.

Technical Data Summary

Board Type: A compact PC-based control distribution board.

Power Input: Operates from a 24 V DC nominal source.

Power Output: Supplies a +5 V DC rail with a 6 A current capacity.

Isolation Rating: Provides 500 V DC isolation between the power rail and earth.

Operating Range: Functions in temperatures from 0 to +60 °C.

Environmental Specs: Handles 5-95% non-condensing humidity and storage from -40 to +85 °C.

FAQ

Q1: What is the input voltage for this board?

A1: It requires a 24 V DC nominal input power source.

Q2: What voltage does it supply?

A2: The board provides a regulated +5 V DC output on its power rail.

Q3: What is the maximum output current?

A3: Its +5V rail can supply up to 6 Amperes of current.

Q4: What is its operating temperature range?

A4: It is designed to operate reliably within a range of 0 to +60 °C.

Q5: What are its shipping dimensions?

A5: The estimated shipping size is 22.6 cm x 14.1 cm x 1 cm.
