NXPP-06 68827884 Overview

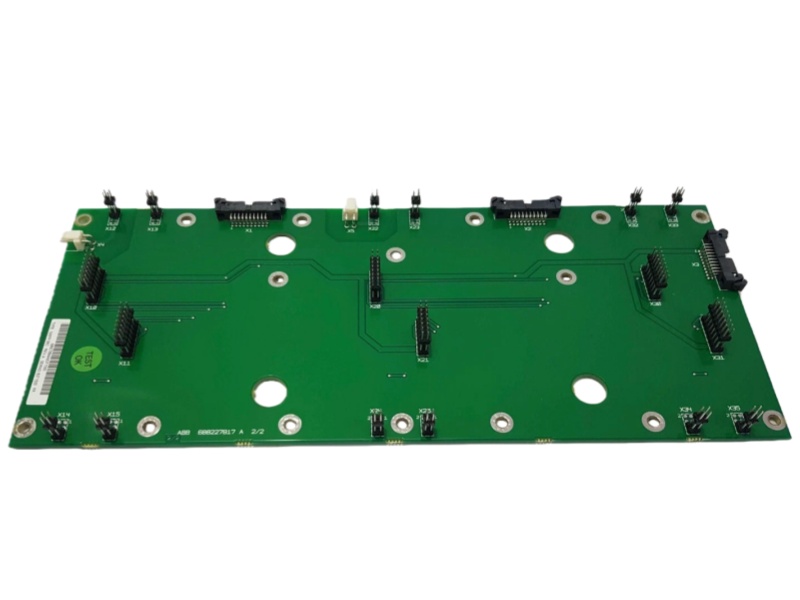

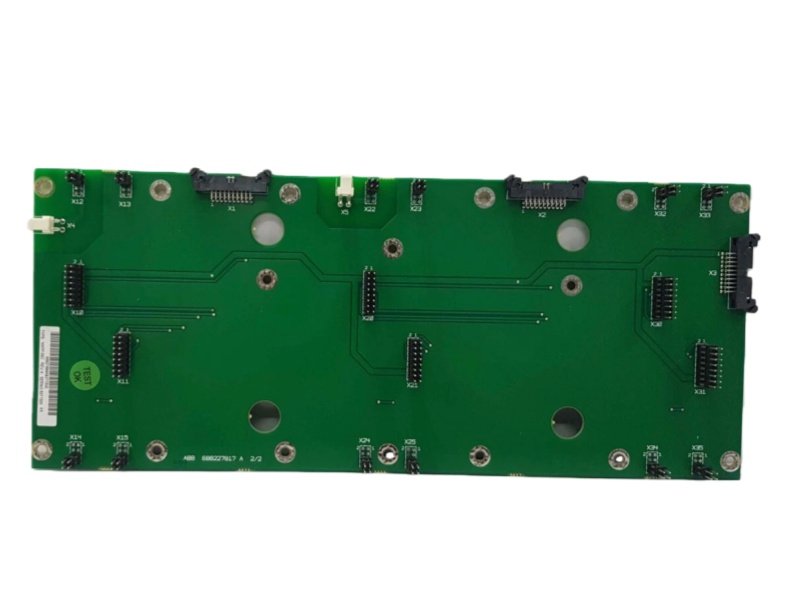

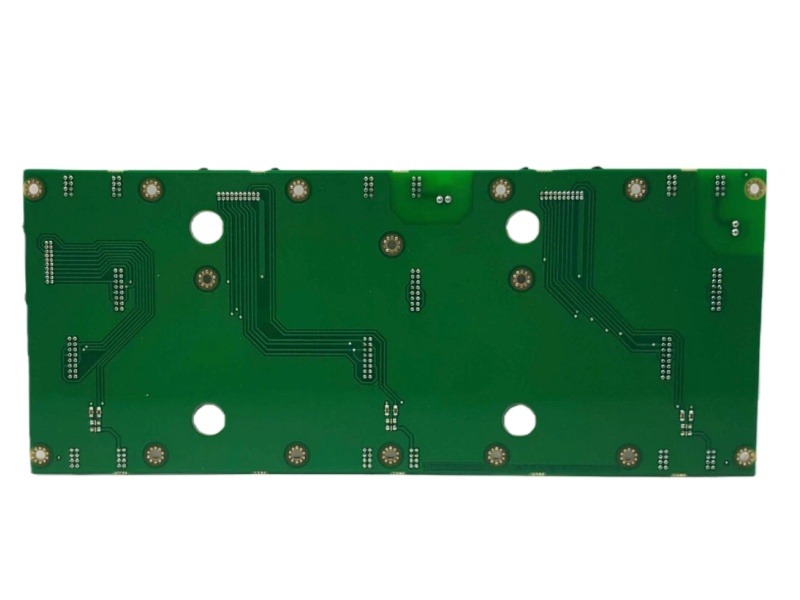

The ACS 600 NXPP-06 68827884 ABB is an inverter control board for frequency inverters. It is designed for robust performance in industrial motor control applications, offering reliable operation and enhanced energy efficiency in demanding environments.

Technical Data Summary

Supply Voltage: Operates on a standard 24V DC power supply.

Analog Inputs: Accepts control signals of 0–10 V or 4–20 mA.

Communication: Equipped with terminal connections for RS-485 communication.

Isolation: Features a high isolation rating of ≥1500 V AC for safety.

Power Handling: Designed to handle currents between 5A and 10A.

Temperature Range: Functions reliably in a wide operating temperature from -25°C to +70°C.

FAQ

Q1: What is the function of the NXPP-06 board?

A1: It is an inverter control board designed to regulate and drive motors in frequency inverter systems.

Q2: What power supply does it require?

A2: It operates on a standard 24V DC supply voltage.

Q3: What types of control signals can it accept?

A3: It accepts standard analog control signals of 0-10V or 4-20mA.

Q4: How does it communicate with other control devices?

A4: It uses an RS-485 communication interface via terminal connections.

Q5: What is its operating temperature range?

A5: It is designed to operate reliably in temperatures from -25°C to +70°C.
