QPWR-5621  Overview

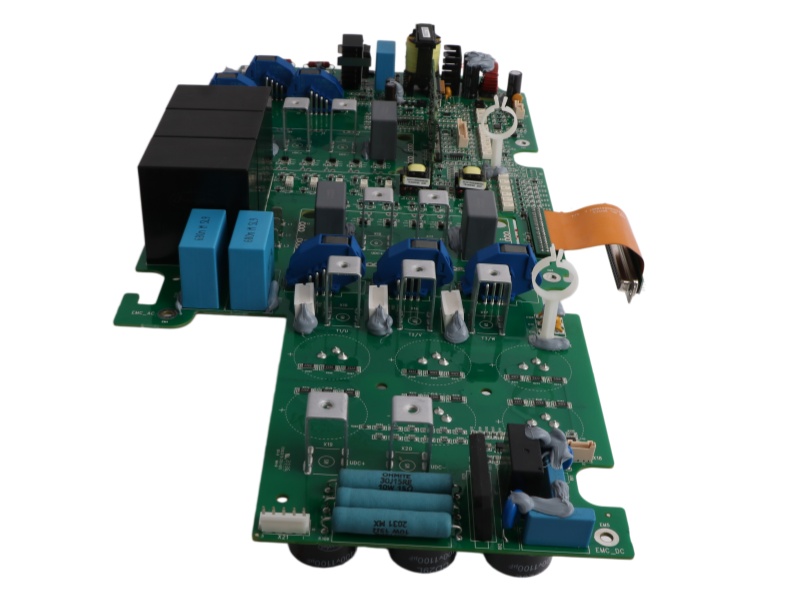

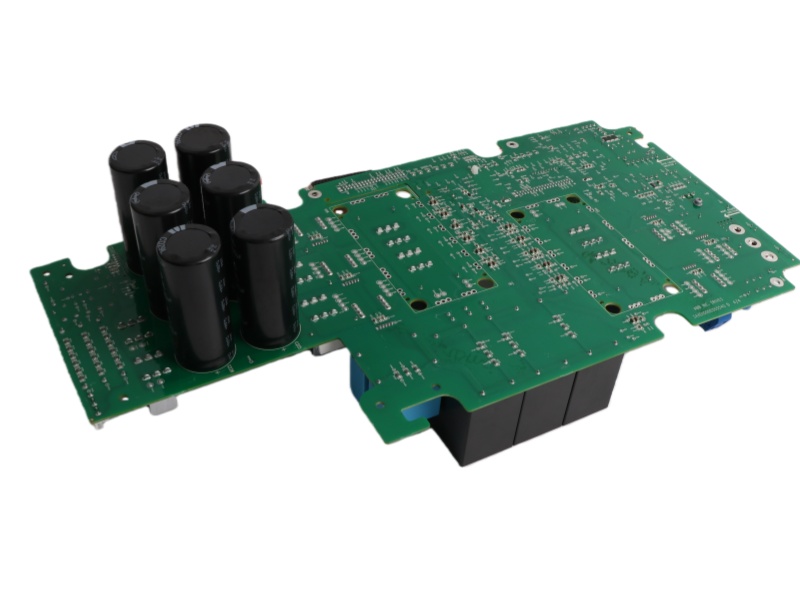

The Four Quadrant Variable Frequency Drive (VFD) Board ABB QPWR-5621 is a core controller board for ACS medium-voltage drives, engineered for demanding applications in power, oil, gas, and mining where reliability, efficiency, and dynamic performance are critical.

Features and Benefits

High-Performance Core: The central control unit for ABB ACS medium-voltage drives, ensuring precise motor control.

Wide Application: Designed for demanding sectors like mining, oil & gas, and power, offering versatile industrial use.

Broad Power Range: Supports 22–37 kW, providing flexibility for various motor sizes.

Robust Protection: Features 1500V DC isolation and a wide operating temperature range (0 to +60°C) for reliable performance in harsh environments.

High Reliability: Meets stringent industry requirements for drive system durability, energy efficiency, and dynamic response.

Compact & Lightweight: Small form factor and low weight (0.12kg) facilitate easier integration and handling.

FAQ

Q1: What type of product is the ABB QPWR-5621?

A1: It is a core controller board (Driver board) for ABB ACS series medium-voltage frequency converters.

Q2: What is the supported power range for this controller?

A2: It supports a power range of 22 to 37 kW.

Q3: What are its typical industrial applications?

A3: It is used in demanding sectors like mining, oil & gas, power plants, water treatment, and heavy manufacturing.

Q4: What are its key protective features?

A4: It offers 1500V DC isolation and operates reliably within a temperature range of 0 to +60°C.

Q5: What is its operating voltage?

A5: The operating voltage is 380–500 V AC.
