QPWR-5611 Overview

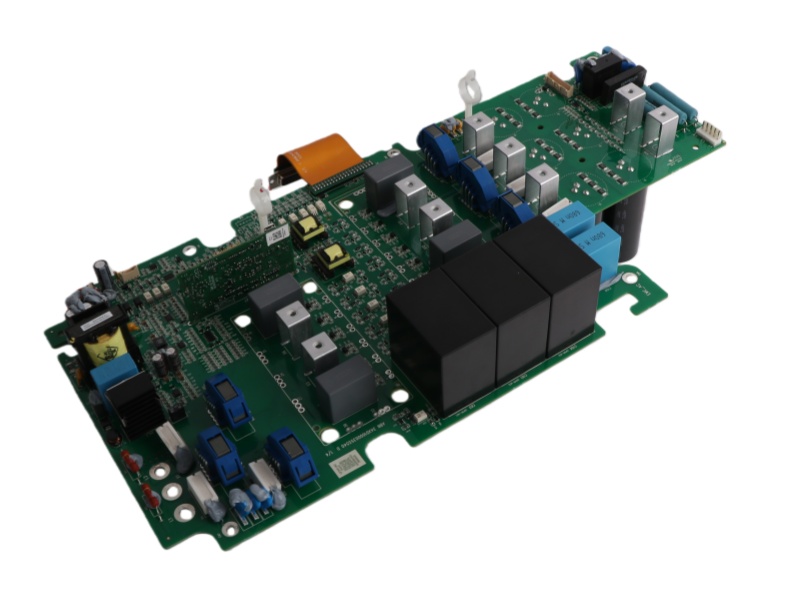

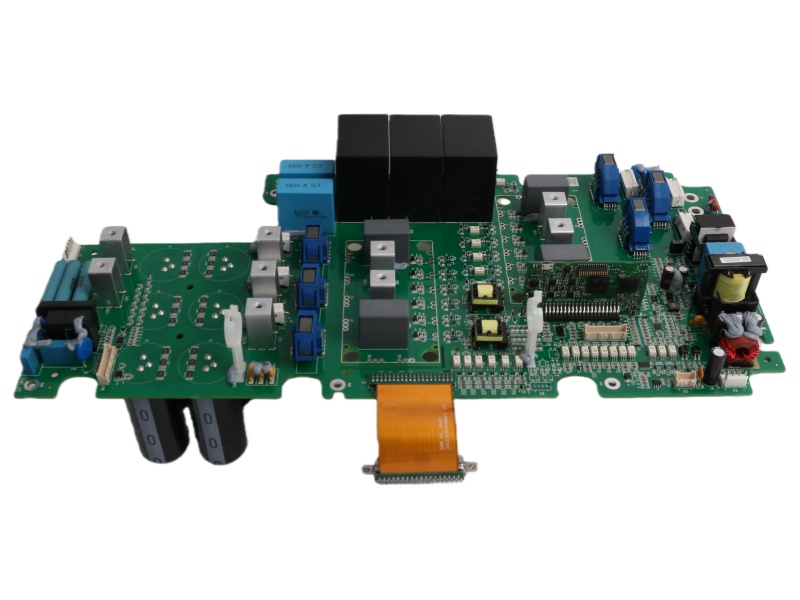

The QPWR-5611 ABB Controller Board is a Drive Board for the ACS800 series, designed for reliable power conversion and precise motor control with comprehensive voltage protection.

Features and benefits

High Performance: A power module for precise motor control in the ACS800 drive family.

Wide Voltage Range: Operates on 380-480V AC input for versatile industrial use.

Stable DC Link: Maintains 540-650V DC for robust power conversion.

Integrated Protection: Features DC overvoltage and undervoltage safeguards.

Auxiliary Power: Provides 24V DC for control circuitry and auxiliary functions.

Original Quality: 100% new and original ABB component for high reliability.

FAQ

Q1: What is the primary function of the ABB QPWR-5611?

A1: It is a high-performance power module designed for power conversion and motor control within ABB's ACS800 variable frequency drive systems.

Q2: What input voltage does the QPWR-5611 board support?

A2: It operates with a wide input voltage range of 380–480V AC (±10%).

Q3: What safety features are built into this drive board?

A3: The board includes built-in DC overvoltage and undervoltage protection to safeguard the drive and connected equipment.

Q4: What auxiliary voltage does it provide for control functions?

A4: It supplies a 24V DC auxiliary voltage to power the control circuitry and auxiliary functions.

Q5: Is this board a genuine ABB component?

A5: Yes, it is supplied as 100% new and original ABB equipment.
