Product Overview

ABB RDCU-02C is a separately mounted drive control unit documented for ACS800 cabinet installations and inverter-module configurations. It incorporates the RMIO-02C motor control and I/O board, providing basic analog, digital and relay interfaces together with slots for optional I/O and communication modules. The unit is typically mounted vertically on a cabinet rail near the inverter module and connects to the power stage through optical-fiber links. Procurement and replacement work should verify the complete RDCU designation, the RMIO board label, application-program identification, optional module population, control-panel connection, terminal layout and optical-link arrangement for the installed drive.

Commercial Status

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

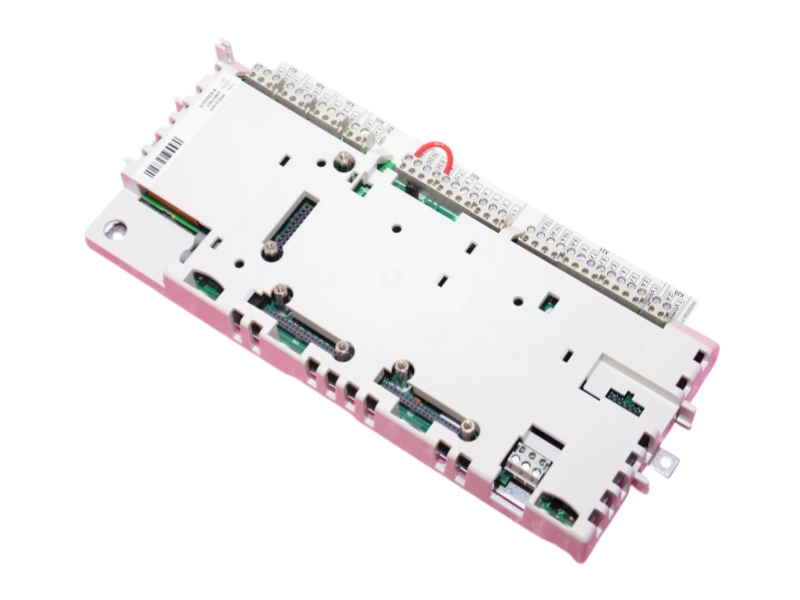

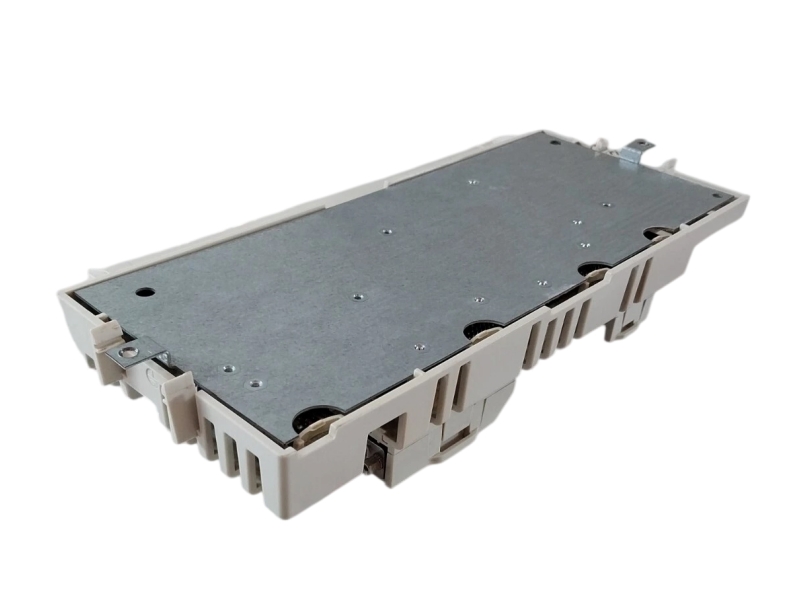

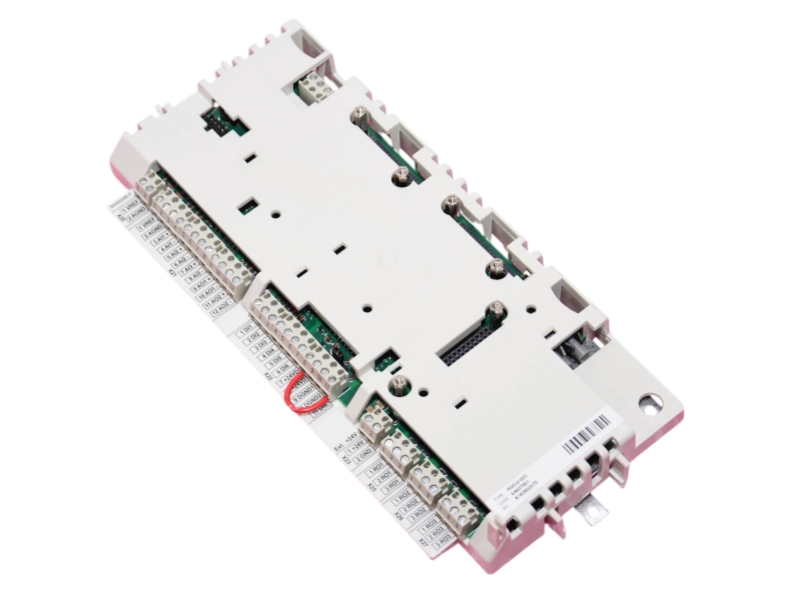

Product Photo Evidence













System Fit and Applications

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

• Complete part number RDCU-02C and RMIO-02C board label
• SW TYPE, SW CODE and DEVICE TYPE information on the unit label
• 24 V DC control supply and grounding arrangement
• Analog, digital and relay terminal assignments
• Optional modules installed in slots 1, 2 and 3
• X39 control-panel connection and optical-fiber routing
• Application program, parameter backup and drive hardware configuration
• Cabinet mounting position, connector condition and product photographs

Lifecycle Note

The reviewed ABB hardware manuals identify RDCU-02C and its RMIO-02C configuration but do not state a current lifecycle designation for the exact control unit. No lifecycle status is inferred. Replacement planning should instead verify the label, software type and code, option modules, I/O wiring and optical connections.
