An exact ABB service kit identified for FS450R17KE3 and AGDR-81C power-module replacement work.
| Record | Manufacturer-Verified Detail |
|---|---|
| Complete product ID | 3AUA0000109339 |
| Manufacturer | ABB |
| Product designation | IGBT MODULE SP KIT |
| Catalog description | Spare-part kit FS450R17KE3/AGDR-81C |
| Parameter | Officially Documented Detail |
|---|---|
| Product type | IGBT module spare-part kit |
| Complete product ID | 3AUA0000109339 |
| Kit reference | FS450R17KE3/AGDR-81C |
| Documented electrical class | 1700 V / 450 A |
| Module package | ECONO+ |
| ABB replacement product ID | 68569591 |
| Ordering unit | 1 piece |
| Product net weight | 1.1 kg |
| Transport note | Not IATA restricted per SP A158 |

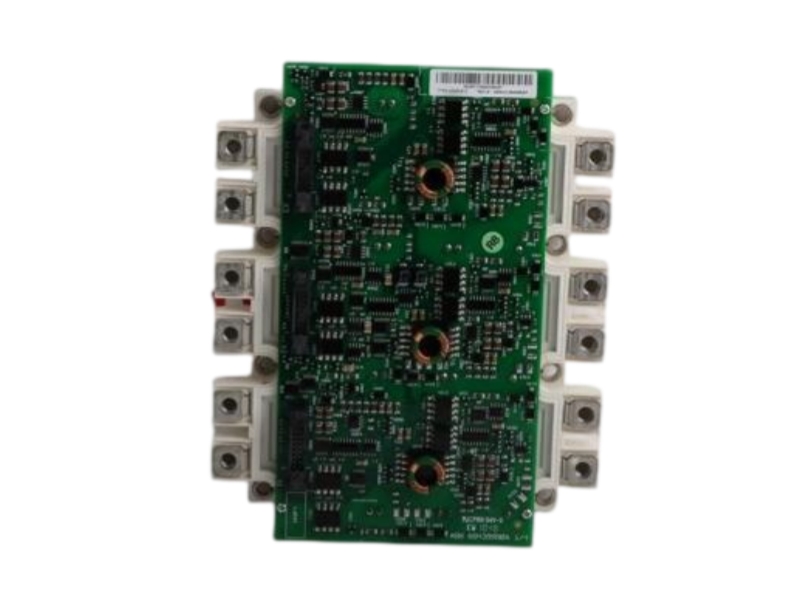

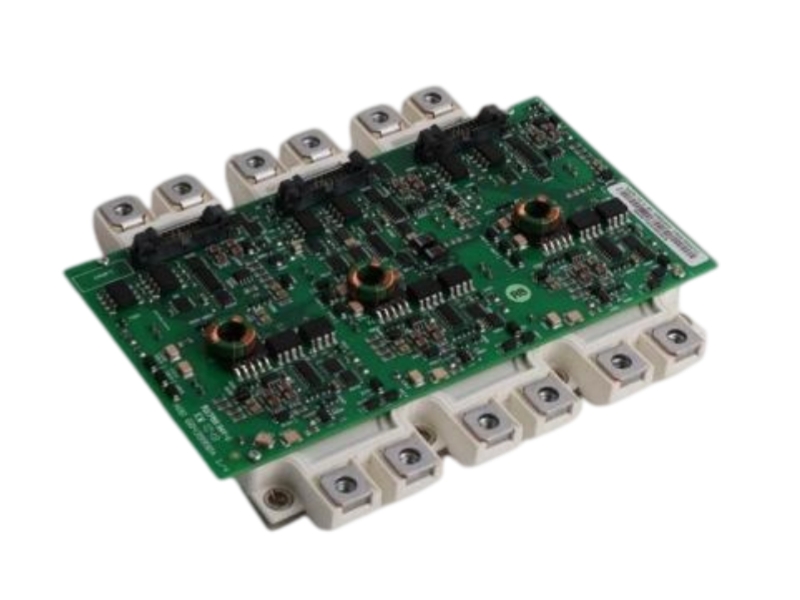

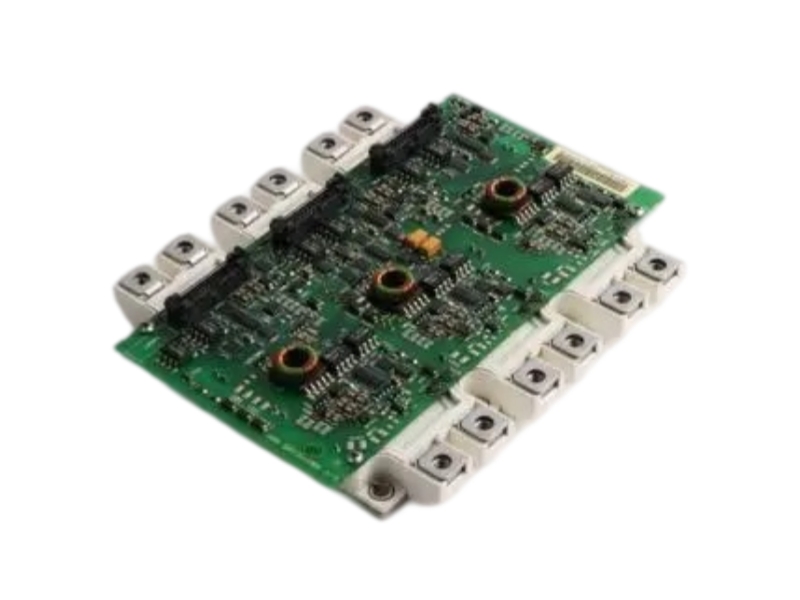

Use current photos to verify the installed item before procurement or replacement planning.
| Application | Engineering Relevance |
|---|---|
| ACS800 Drive Service | Supports exact-kit replacement planning for the documented ACS800 power-module configuration. |
| IGBT Power-Stage Maintenance | Matches the documented 1700 V / 450 A ECONO+ module class during controlled repair work. |
| Planned Spare Control | Provides an identified ABB replacement kit for maintenance inventory and outage preparation. |
It is an ABB IGBT module spare-part kit identified with the FS450R17KE3/AGDR-81C assembly.
The ABB product record identifies a 1700 V, 450 A ECONO+ module configuration.
ABB identifies 68569591 as the replacement product ID associated with 3AUA0000109339.
Confirm the complete kit ID, installed ACS800 frame, power-module arrangement and the required control ribbon cables.
Send the complete ABB label, installed drive frame and power-stage details for a focused procurement review.
A structured support path for exact-part identification, engineering review, inspection and protected delivery.
| Information to Provide | Review Output |
|---|---|
| Complete product nameplate and visible revision | Exact-identity and documentation review |
| Installed equipment and interface record | System-context questions for engineering |
| Parameters, addresses or project backup | Configuration and compatibility review points |
| Quantity and delivery destination | Availability, warranty and logistics scope |
Send the complete label and drive power-stage identity, installed frame and replacement-kit evidence for a focused service review.
