Side-mounted 1NO+1NC auxiliary contact for status signaling on compatible ABB manual motor starters.

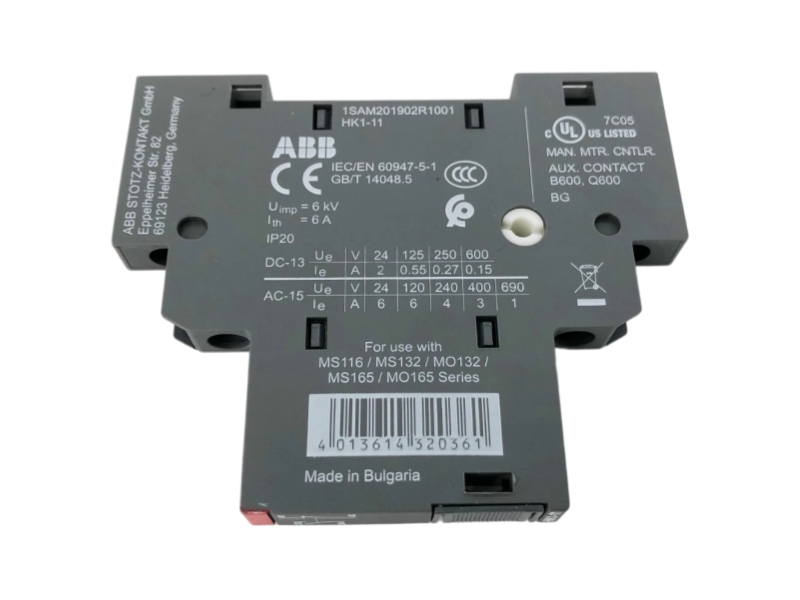

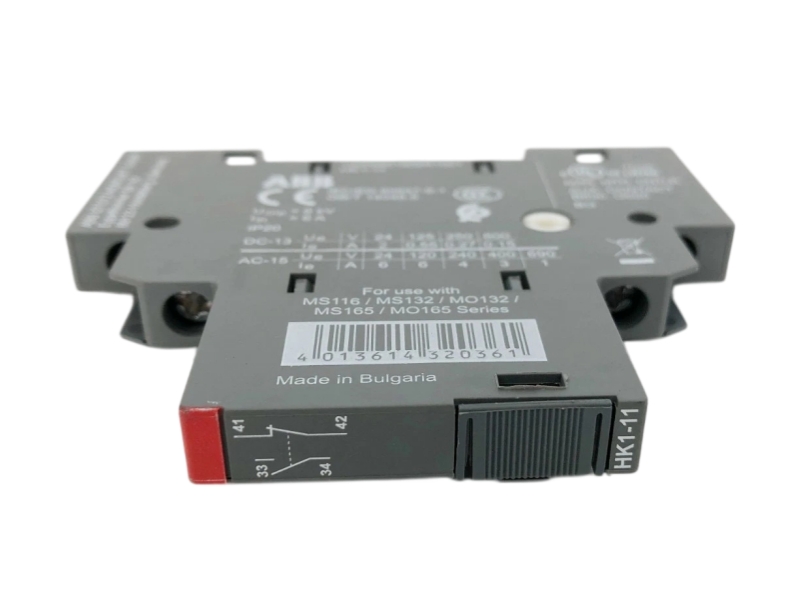

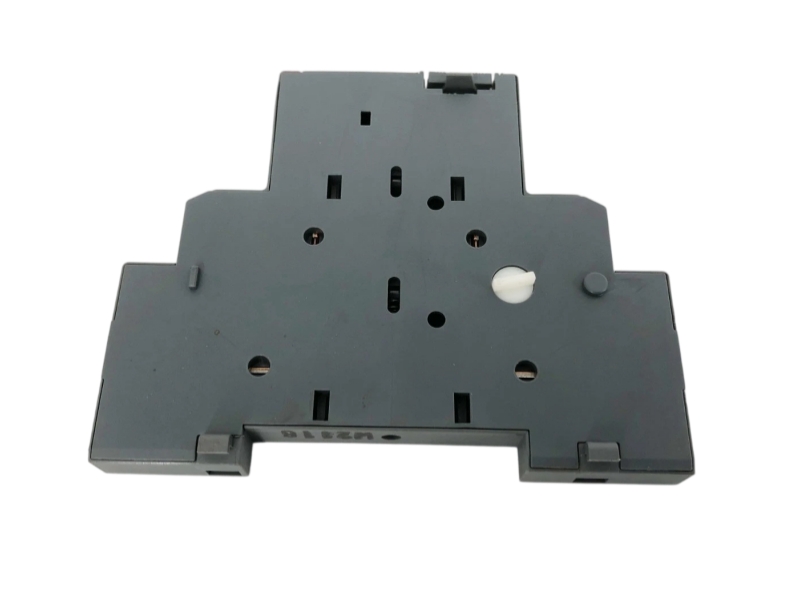

ABB official catalogs identify 1SAM201902R1001 as the HK1-11 auxiliary contact. It mounts on the right side and provides one normally open plus one normally closed contact for device-status signaling.
Ordering must be based on the exact manual motor starter family, available side-mounting space and required auxiliary-contact sequence.
| Order code | 1SAM201902R1001 |
| Manufacturer | ABB |
| Type designation | HK1-11 |
| Official catalog status | Listed in ABB current motor protection and control catalogs |
| Lifecycle wording | No separate lifecycle classification is published for this exact order code in the referenced ABB catalogs. |
| Manufacturer | ABB |
| Order code | 1SAM201902R1001 |
| Product type | Auxiliary contact |
| Type | HK1-11 |
| Contact arrangement | 1 normally open + 1 normally closed |
| Mounting position | Right-side / side mounting |
| Primary function | Status signaling |
| Accessory group | Manual motor starter accessories |
| Documented compatibility | MS116, MS132, MO132, MS132-T, MS165 and MO165 families |
Compatibility depends on the exact ABB starter family, side-accessory arrangement and available mounting position.
ABB official catalogs continue to list 1SAM201902R1001 as HK1-11, but they do not publish a separate lifecycle label for this exact order code. No lifecycle status is inferred.
It is the ABB HK1-11 side-mounted auxiliary contact.
It provides one normally open and one normally closed auxiliary contact.
ABB documents it as a right-side or side-mounted accessory.
ABB catalogs document use with compatible MS/MO manual motor starter families.
Not automatically; HK1-20 has a different contact arrangement.
Confirm the starter family, side-mounting space, contact sequence, quantity and destination.
Send the complete nameplate and application details for compatibility, supply, global delivery and warranty verification.
Identity verification, starter-family compatibility review, supply coordination and international delivery.
We compare 1SAM201902R1001 with the exact ABB manual motor starter family.
The right-side mounting position and 1NO+1NC contact requirement are reviewed.
Packaging, documents, delivery options and warranty terms are aligned with the confirmed item.
Full ABB starter nameplate, installed side accessories, control schematic, quantity and destination.
HK1-11 must not be confused with HK1-20, HK1-02 or front-mounted HKF1 contact variants.
Share the complete article number and application requirement for a documented response.
