Features and Benefits

• Dual Overload Ratings: Delivers 15.00 kW for Low Overload applications and 11.00 kW for safety-critical High Overload tasks.
• Flexible Vector Control: Supports precise vector speed regulation up to 200 Hz alongside high-speed V/f control up to 550 Hz.

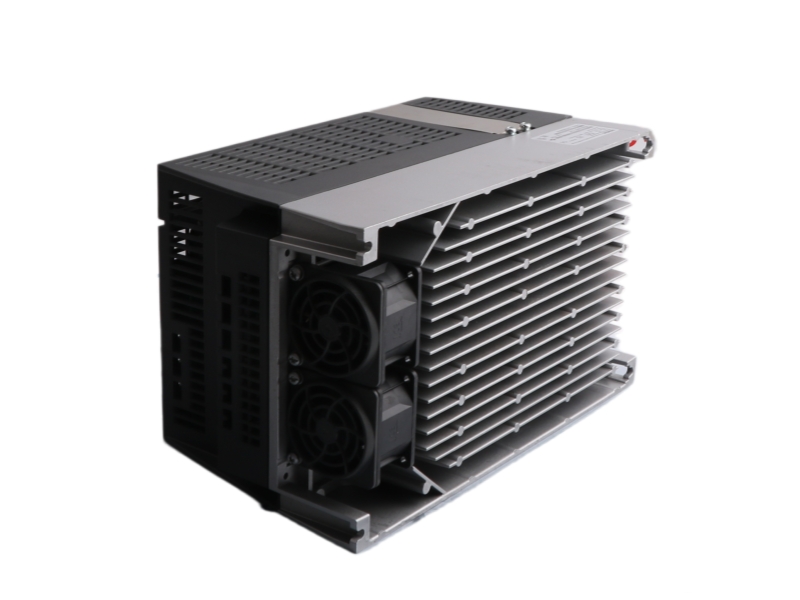

• Internal Cooling Path: Engineered with internal air cooling moving 0.055 m³/s of air to maintain stable thermal metrics.

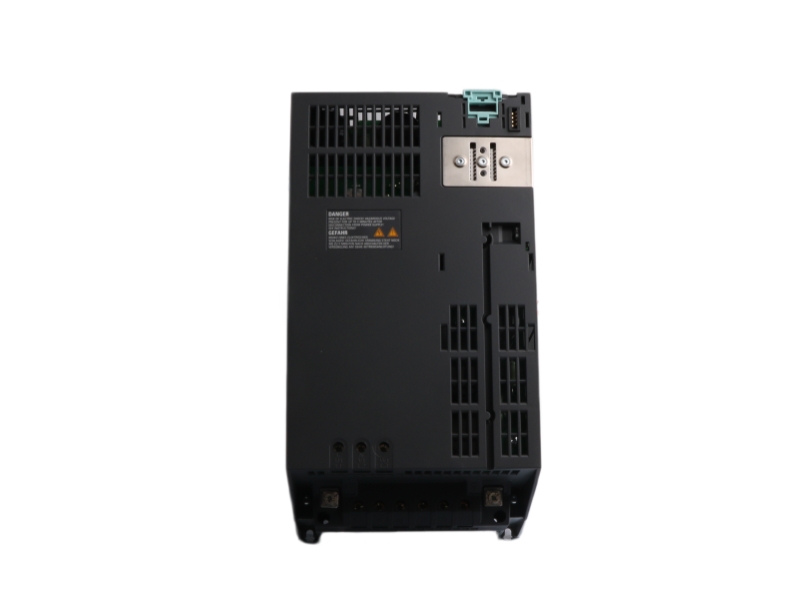

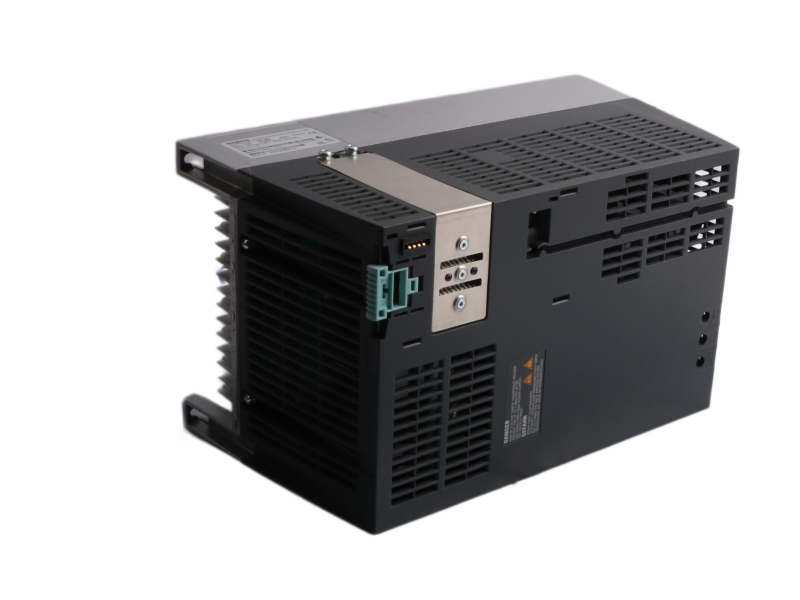

• Compact Block Design: Built as an IP20 Size FSC module weighing 7.00 kg to minimize spatial loss inside electrical enclosures.
• Rugged Screw Terminals: Features robust terminal interfaces supporting 2.50 to 10.00 mm² conductors for secure line and motor wiring.

System Compatibility and Alternatives

• System Compatibility:
  Fully compatible with Siemens G120 Control Units (e.g., CU240E-2) and external dynamic braking resistors hooked up via the DC link terminals. Integrates seamlessly into industrial three-phase power line networks operating between 380V and 480V AC.

Alternative Model:
6SL3224-0BE31-1AA0 (Version containing an integrated internal Class A line filter profile).

• Difference from Alternative Model:
  The 6SL3224-0BE31-1UA0 is an unfiltered hardware variant that allows maximum flexibility in mixed-use distribution networks or installations utilizing external sinusoidal line filters. While the filtered 1AA0 alternative reduces electromagnetic emission patterns right out of the box, it increases mechanical depth tolerances and leaks microscopic parasitic grounding currents that can trip highly sensitive residual current breakers.

Competitive Advantage

• High Efficiency Rating: Delivers an exceptional 97% energy conversion efficiency alongside a high 0.95 cos φ offset factor to reduce facility power loss.
• Global Standard Approvals: Fully certified to comply with UL, cUL, CE, C-Tick (RCM), and SEMI F47 industrial safety criteria for worldwide factory deployment.
• Quiet Cabinet Integration: Emits a moderate sound pressure level of only 60 dB at one meter, preventing harsh operational noise build-ups inside control rooms.

Installation & Troubleshooting FAQ

Q1: What are the exact motor cable length limits for installing the 6SL3224-0BE31-1UA0?
A: To preserve electrical wave compliance and stop transient tracking faults, the maximum physical motor line length is restricted to 50 meters (164 feet) when using shielded cables. If running an unshielded lines setup, you can extend the path up to a maximum distance of 100 meters (328 feet) before triggering impedance imbalance trips.

Q2: Why is the drive reporting a sporadic "Overcurrent / Thermal Overload" fault during machine cycles?
A: This usually points to high current spikes exceeding the configured load thresholds. Under Low Overload configuration, the module allows a 110% overload current for up to 57 seconds, whereas under High Overload configuration, it can execute up to a 200% current burst for a short 3-second cycle. Check your mechanical torque resistance profiles and extend the ramp-up timers inside the control parameter array.

Q3: What ambient temperature considerations must be followed for stable continuous operations?
A: The chassis requires dedicated thermal management based on the active overload deployment mode. When functioning under a Low Overload profile, keep the surrounding cabinet ambient temperature tightly controlled between 0 and 40 °C. If the module is configured for heavy-duty High Overload profiles, the safe upper performance limit scales up to 50 °C before internal thermal limits step down output capacity.
