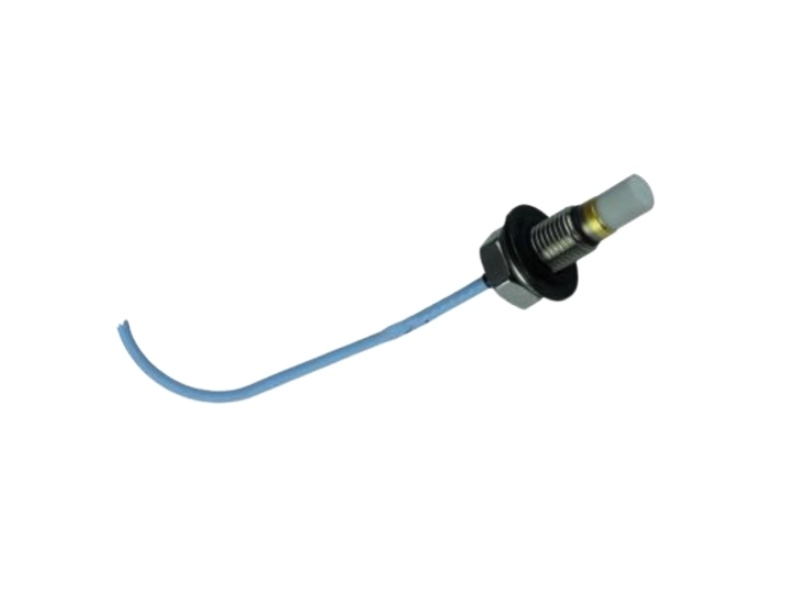

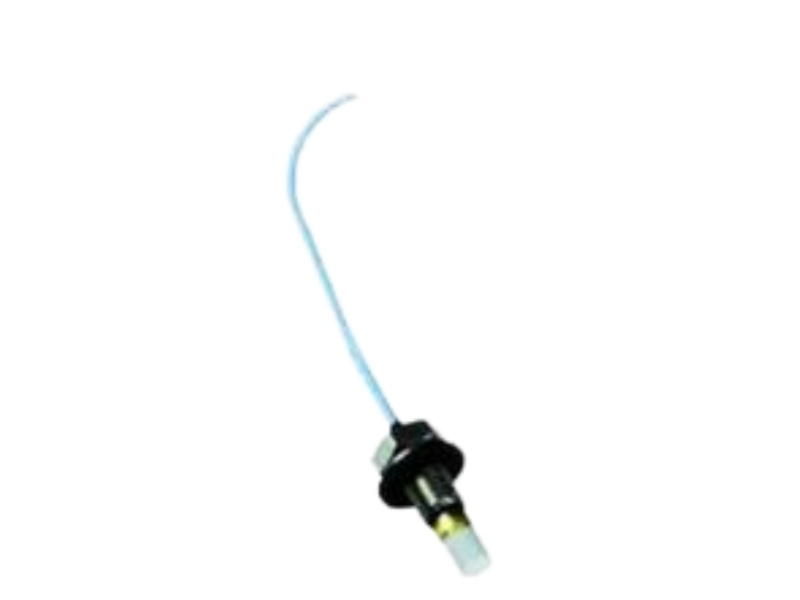

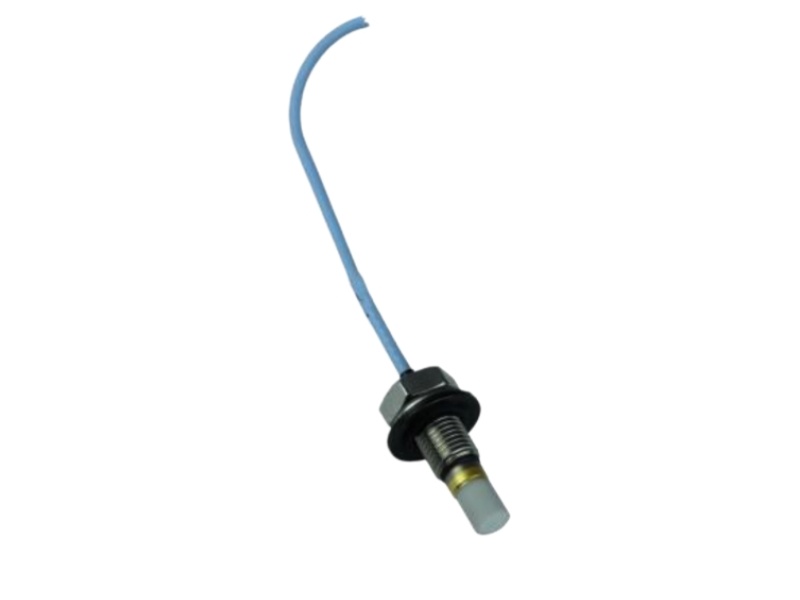

Specific Application

• Proximity tracking and shaft observation inside highly corrosive anhydrous ammonia or extreme pH industrial processing tanks.
• Reliable continuous machinery condition monitoring under high-pressure gas or fluid environments scaled up to 34 Bar (500 psi).
• Hermetically sealed forward-mount sensor deployments where only the front of the probe assembly interfaces with aggressive industrial chemicals.

System Compatibility and Alternatives

• System Compatibility:
  Fully compatible with standard Bently Nevada 3300 Proximitor Sensors and matching 75 Ω coaxial extension cables. Formulated to perform target mapping and loop calculations utilizing a standard AISI 4140 steel target profile.
• Alternative Model:
  146054 with Modification 164523 (Threaded armored cable variant) or 164517-014-10-02-00 (Metric M10x1 threaded ceramic capped alternative).
• Difference from Alternative Model:
  The 146054-14-10-02-00 features a standard unarmored FEP coaxial cable lead, whereas the 164523 modification supplies a rugged stainless steel armor braid overlay to resist physical cable cutting or tearing. When evaluated against the 164517 metric alternative, this probe utilizes imperial 3/8-24 UNF forward-mounting case threads rather than an M10x1 metric profile, allowing direct matching into North American machinery bracket designs.

Ordering Information

Installation & Troubleshooting FAQ

Q1: What extra care must be taken during the electrical gapping and installation of this ceramic capped probe?
A: The linear operating range of ceramic-capped probes is shifted compared to standard 3300 XL probes, and the robust alumina tip cannot withstand direct mechanical loads. Always gap the probe using electrical multimeter voltage readings rather than physical feeler gauges, avoiding any direct tool or target contact with the fragile ceramic tip surface to prevent fracturing.

Q2: Why does the monitoring system log a lower OK limit fault or signal a "shaft contact" alarm prematurely?
A: Due to the shifted calibration curve of the ceramic cap assembly, the probe tip may physically contact the spinning shaft before the monitor module reaches its traditional lower OK logic limit. This setup condition often requires an explicit software or monitor hardware modification to safely accommodate the shifted curve boundaries.

Q3: Can the rear section of this 146054 forward-mount probe be safely exposed to water washes or ammonia vapors?
A: No, the 146054 design provides a helium leak-tested hermetic seal strictly across the front ceramic-to-metal interface to protect the assembly head from process fluids. It lacks a rear sealing fitting or a stainless steel tube enclosure, meaning you must never expose the unsealed rear section of the probe body to destructive environments containing water, NH3, NH4OH, or hydrogen sulfide.
