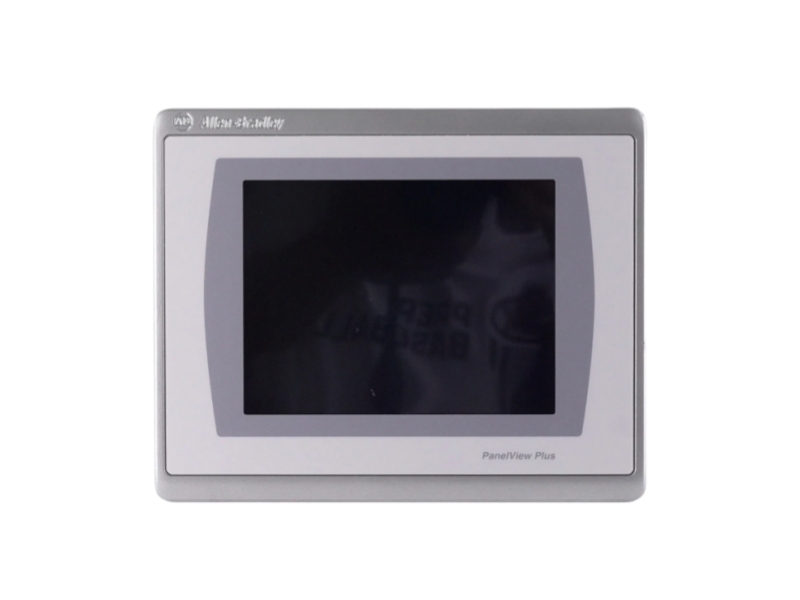

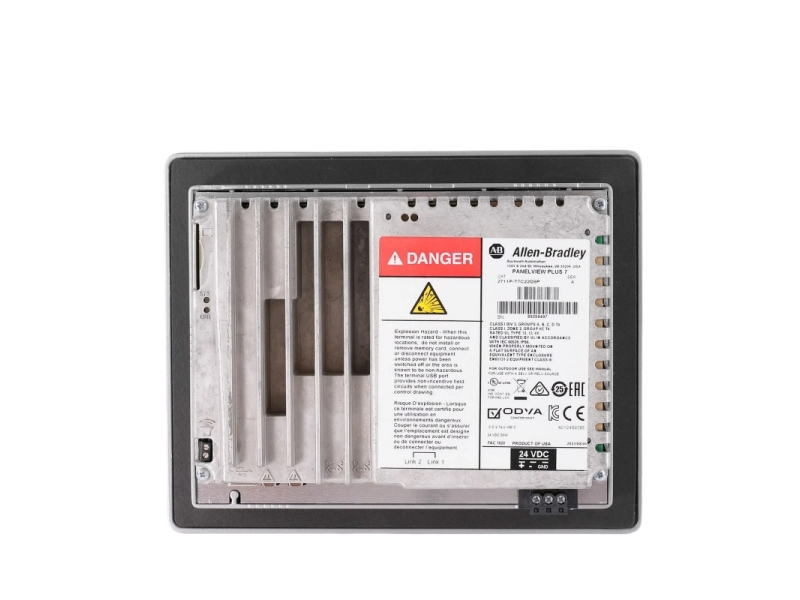

The 2711P-T7C22D9P is an Allen-Bradley Performance operator interface terminal featuring a 6.5-inch color TFT resistive touch screen display. Fully compatible with EtherNet/IP networks, this DC-powered unit works seamlessly with ControlLogix and CompactLogix controllers to deliver dynamic process visualization and stable industrial network communication.
Specific Application
Real-Time Machine Visualization: Displays animated graphics and localized text alerts on the plant floor to monitor and control equipment operating states.
Fault-Tolerant Network Topology: Deployed in safety-critical automated layouts requiring Device Level Ring (DLR), linear, or star network infrastructure resilience.
Remote Operational Supervision: Implemented as a localized hub that plant managers or system integrators can view and control remotely via scalable web browsers.
Features and Benefits
Integrated Configuration Environment: Pre-loaded with FactoryTalk View Machine Edition Station software to provide a familiar and robust development workspace.

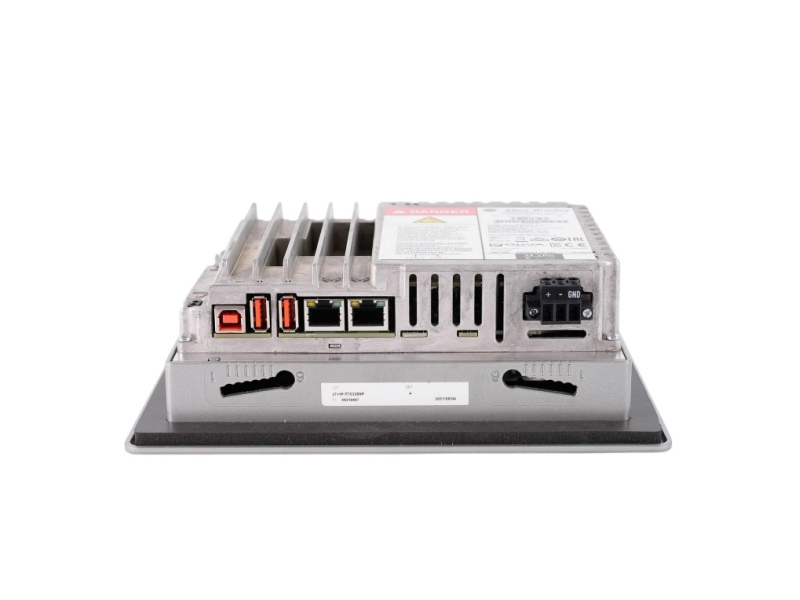

Dual-Port EtherNet/IP Connectivity: Features two 10/100Base-T ports that fully support ring, star, or linear layouts to eliminate single points of network failure.
Comprehensive Legacy Migration: Incorporates an Import Wizard inside the companion software to scale and convert older PanelView Standard applications directly into modern runtime projects.
Premium Hardware Scaling (Series B): Outfitted with up to 4 GB RAM and 19.87 GB internal storage running Windows 10 IoT Core for high-speed screen refreshing.
Robust Weatherproof Housing: Built to meet tough NEMA/UL Type 12, 13, and 4X standards alongside IP66 ingress scores to resist heavy industrial washdowns.
Ordering Information Table Breakdown
|
Technical Ordering Parameter |
Configured Value & Functional Meaning |
|
Product Line |
PanelView Plus 7 Performance Terminals |
|
Catalog Number |
2711P-T7C22D9P |
|
Display Size & Type |
6.5-inch diagonal flat-panel TFT Color display |
|
Operator Input |
Analog resistive touch screen |
|
Integrated Communication |
Dual 10/100Base-T Ethernet ports supporting DLR loops |
|
Input Power Source |
Nominal 24V DC (Operational range spanning 18...30V DC) |
|
Compatible Controller Families |
ControlLogix and CompactLogix 5370 architecture modules |
|
Power Supply Safety Profile |
Certified for Safety Extra Low Voltage (SELV) and PELV lines |
Installation & Troubleshooting FAQ
Q1: What are the exact panel cutout requirements and total physical depth measurements needed to install this terminal?
A: To mount the terminal into a panel enclosure, the cutout must measure exactly 142 mm × 184 mm (5.59 in. × 7.24 in.). The overall exterior dimensions of the chassis measure 170 mm high, 212 mm wide, and 69.6 mm deep.
Q2: Can I operate this HMI screen in open-air setups facing direct outdoor sunlight?
A: No. Operating this terminal in direct sunlight must be avoided, because direct exposure to ambient ultraviolet (UV) radiation will permanently discolor or warp the resistive touch screen overlay.
Q3: How do I choose between the replacement backup batteries and mounting hardware for this specific model?
A: For memory and real-time clock retention, use a CR2032 equivalent lithium coin cell battery under part number 2711P-RY2032. When securing the terminal frame into a standard panel bezel cutout, always utilize the dedicated black replacement mounting levers under part number 2711P-RMCP, as gray variants are incompatible.
