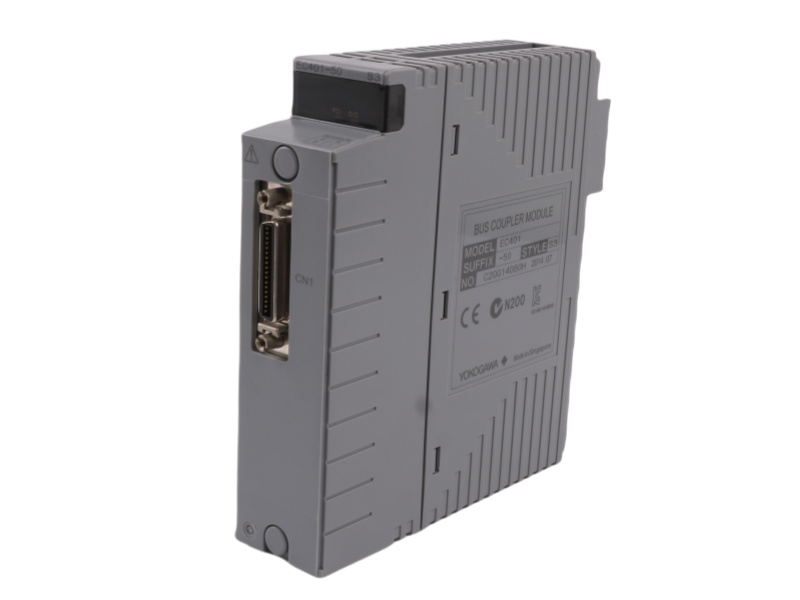

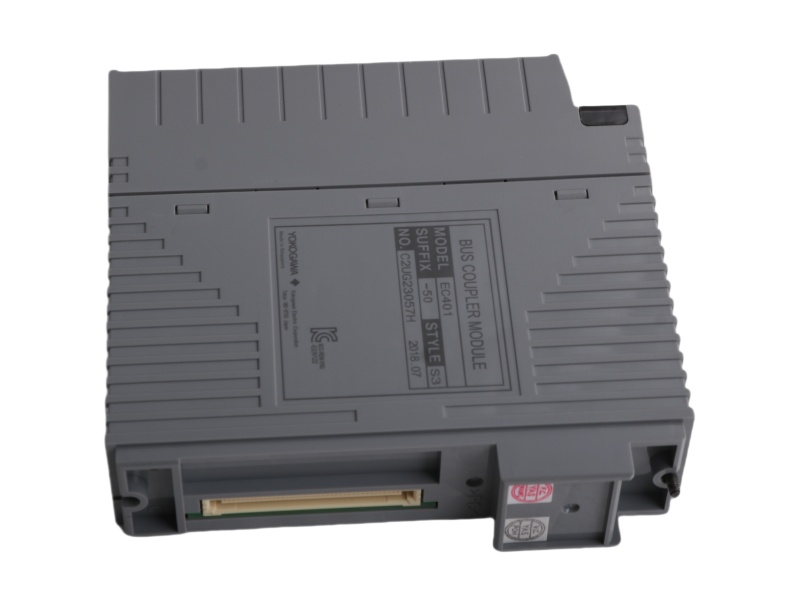

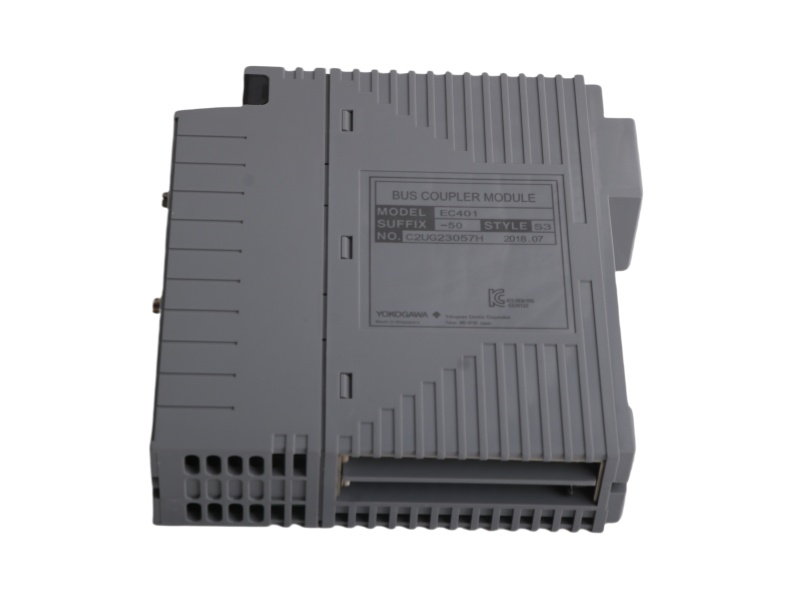

The Yokogawa EC401-50 S3 ESB Bus Coupler Module serves as a critical interface module, enabling seamless connection between Field Control Units (FCUs) and ESB Bus Node Units (ANB10/ANB11). When installed in slot 7 of the FCU (with slot 8 empty), this single-configuration module establishes stable ESB bus communication. For dual-redundant systems, two ESB Bus Coupler Module EC401-50 S3 Yokogawa units can be installed in both slots 7 and 8, ensuring fault-tolerant operation in mission-critical applications.

Compared to the EC402 model, the Yokogawa EC401-50 S3 PDF features a more compact single-port design while maintaining robust communication capabilities. Its optimized circuitry delivers enhanced signal integrity for connections with both standard and optical ESB Bus Node Units. The module's plug-and-play design simplifies installation in various FCU models, including those supporting FIO modules.

For extended networks requiring remote node units, the Coupler Module EC 401-50S3 Yokogawa works seamlessly with Optical ESB Bus Repeater Master Modules (ANT401/ANT411). When deployed with fiber optic repeaters in slots 1-6, the Yokogawa EC401-50 S3 enables reliable long-distance communication while maintaining Yokogawa's stringent performance standards.

Engineers value the Yokogawa ESB bus coupler module 401-50S3 for its balanced combination of reliability and space efficiency. Whether in single or redundant configurations, this module delivers consistent performance in power generation, oil & gas, and other demanding industrial automation environments.
