9907-175 Product datasheet
|
Model number: |
9907-175 |
|
Module Type： |
Speed Controller |
|
Manufacture: |
Woodward |
|
Condition： |
Brand New |
|
Range of Product: |
Woodward |
|
Lead time： |
In Stock |
|
Weight: |
0.96kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
28×12×21cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
9907-175 Functional Description

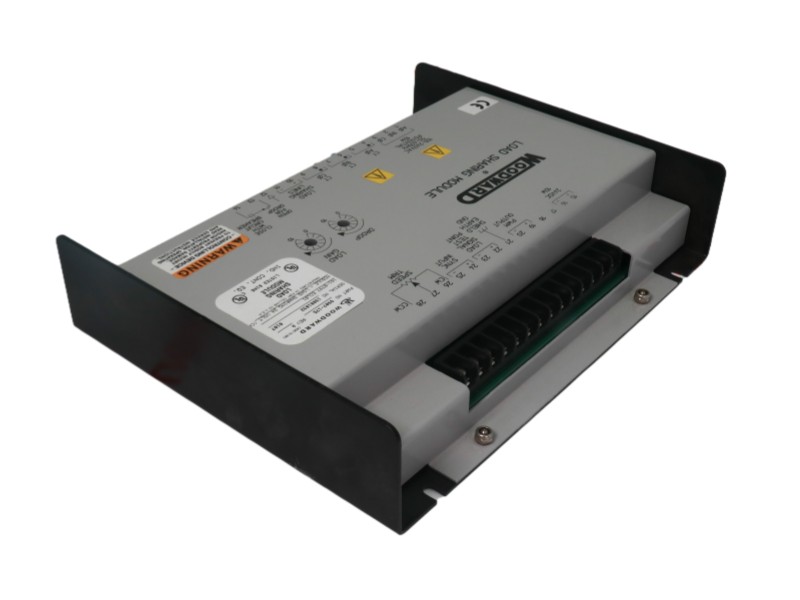

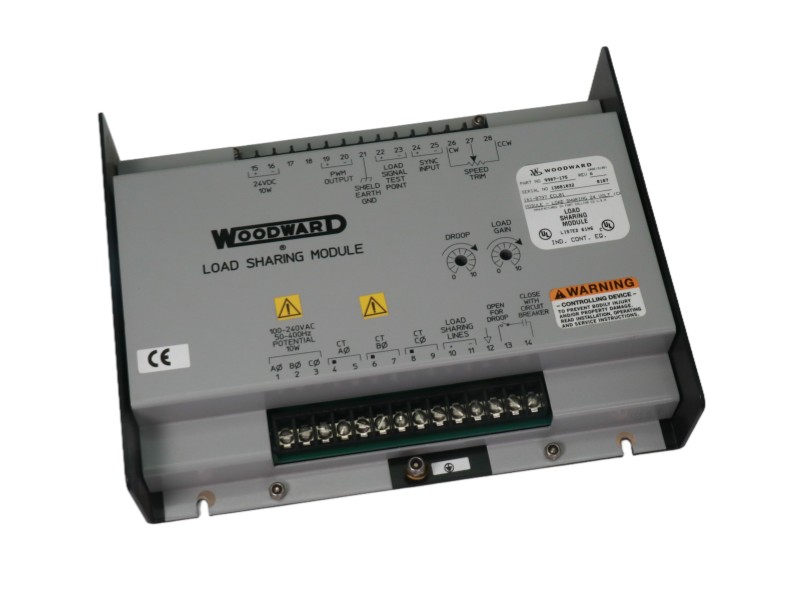

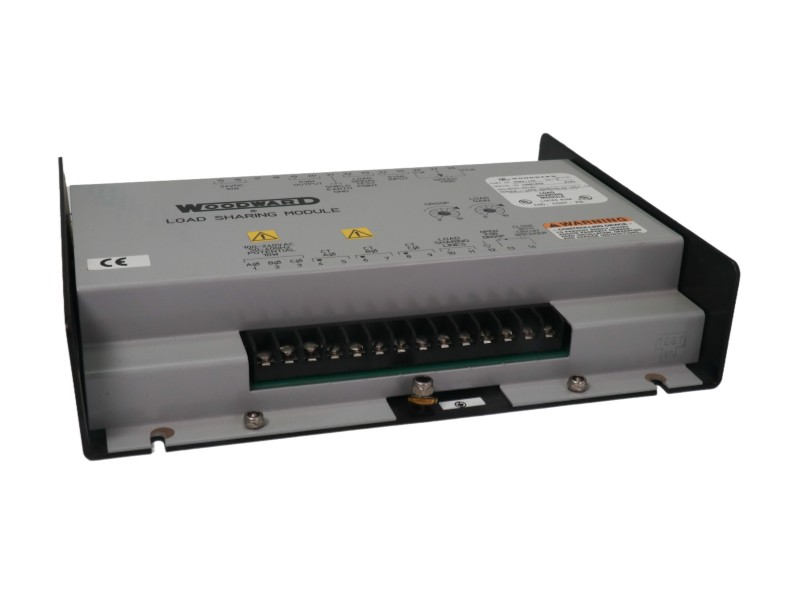

The Load sharing module 9907-175 Woodward is a critical Load Sharing Module engineered for sophisticated power generation control. Its primary function is to seamlessly integrate Woodward power accessories, specifically enabling precise load sharing between a Caterpillar speed controller and engines managed by other Woodward components. This ensures stable and balanced operation across multiple units.
Operating on an 18 to 32 VDC power supply, the Woodward 9907-175 LOAD SHARING MODULE is built for resilience, consuming approximately 5 Watts. It is well-protected against potentially damaging electrical events, including under-voltage, overvoltage exceeding 80 VDC, and reverse voltage down to -32 VDC. This robust protection safeguards the module's integrity in demanding applications.
For accurate monitoring, the Power Supply 9907-175 Woodward is equipped with three-phase PT inputs. These inputs are designed to operate line-to-line at 100 to 240 VAC, with a corresponding PT input burden ranging from 0.4 to 1.7 VA per phase. This allows for reliable voltage sensing essential for its load management functions.
Housed within a sturdy beige enclosure measuring 273.6 x 214.1 x 59.2 mm, the physical design of the Woodward 9907-175 Power Supply is robust. However, it is imperative to install this module in a controlled environment, as it is not suited for areas with high levels of humidity or dust. Proper installation ensures the longevity and reliability of the WOODWARD 9907-175.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Woodward |
9907-205 |
Woodward |
505XT |
Woodward |
UG-60 |
|
Woodward |
9907-164 |
Woodward |
505XT-100 |
Woodward |
PG-EG |
|
Woodward |
9907-118 |
Woodward |
505XT-200 |
Woodward |
SCP-100 |
|
Woodward |
9907-232 |
Woodward |
505XT-300 |
Woodward |
SCP-200 |
|
Woodward |
9907-301 |
Woodward |
2301A |
Woodward |
SCP-300 |
|
Woodward |
9907-405 |
Woodward |
2301A-100 |
Woodward |
L-Series-100 |
|
Woodward |
723PLUS |
Woodward |
2301A-200 |
Woodward |
L-Series-100 |
|
Woodward |
723PLUS-100 |
Woodward |
UG-10 |
Woodward |
L-Series-300 |
|
Woodward |
723PLUS-200 |
Woodward |
UG-40 |
Woodward |
ProAct-ES |
|
Woodward |
723PLUS-300 |
Woodward |
UG-50 |
Woodward |
ProAct-ES-100 |
Load Sharing Module
The Load Sharing Module is engineered to deliver both isochronous and droop load-sharing functionalities for engines within generator set applications, ensuring precise frequency control and stable power distribution between multiple units. It is designed for seamless integration into broader control systems, which can include complementary Woodward equipment such as the SPM-A Synchronizer, SPM-D Synchronizer, Automatic Generator Loading Control (AGLC), and Automatic Power Transfer and Loading Control (APTL). This interoperability enhances system flexibility, enabling automated synchronization, efficient load management, and reliable power transfer operations in demanding environments.
