5466-353 Overview

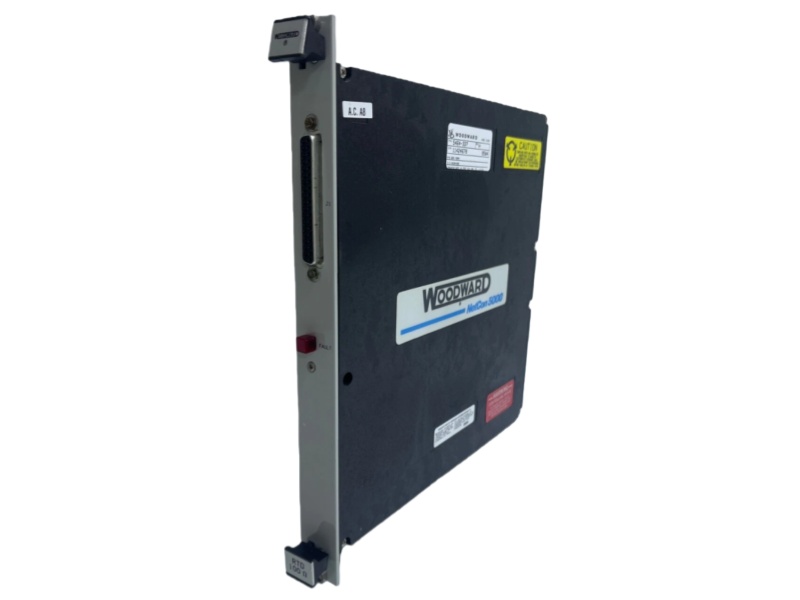

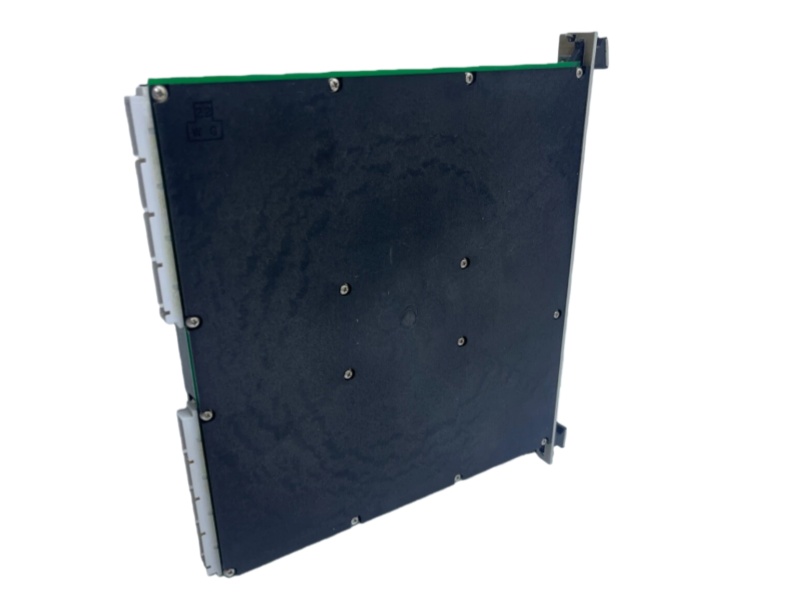

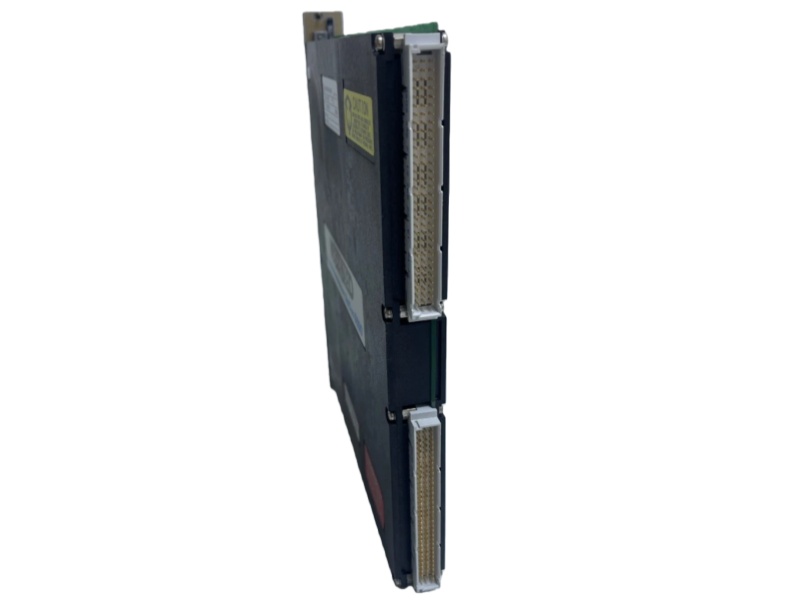

The Woodward 5464-654 Discrete Output Module is a 32-channel discrete output module. It provides control signals to external Woodward relay modules for prime mover operation without needing calibration or potentiometers.

Features and Benefits

• Type: Discrete Output Module

• Channels: 32

• Update Time: 5 ms

• Communication Fault Action: Outputs deactivate if CPU link is lost

• Country of Manufacture: USA

• Availability: In Stock

FAQ

Q1: How many output channels does the Woodward 5464-654 module have?

A1: It has 32 discrete output channels.

Q2: Does this module require calibration or have potentiometers?

A2: No, it lacks potentiometers and does not require calibration.

Q3: What happens to the outputs if communication with the CPU is lost?

A3: The system faults and all outputs are automatically turned off.

Q4: Can I directly connect field devices to this module?

A4: No, it generates relay driver signals and must interface with separate Woodward Relay Modules.

Q5: How is the module installed in the chassis?

A5: It slides into card guides and is secured with two screws on the front panel.
