5464-333 Product datasheet

5464-333 Functional Description

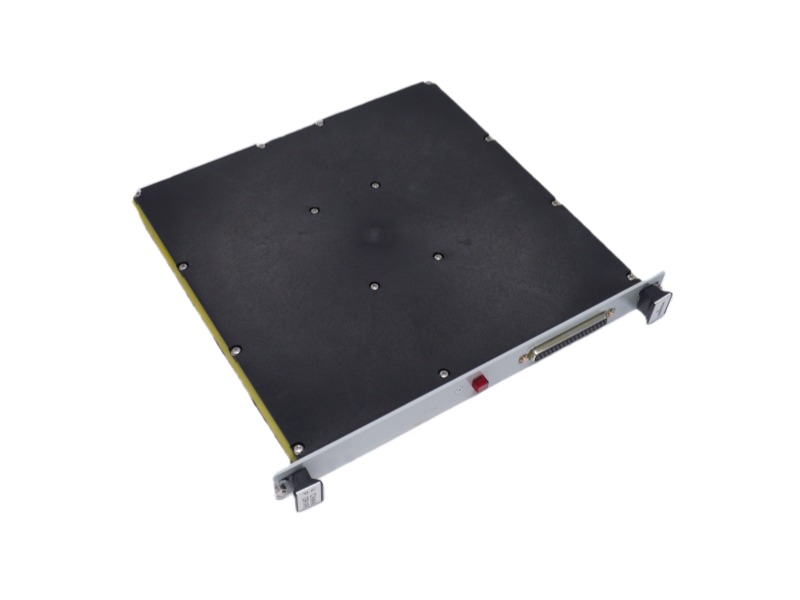

The 5464-333 VDC Logic I/O Module by WOODWARD represents a specialized thermocouple input module manufactured in the United States for precision temperature measurement applications. This 5464-333 Woodward Thermocouple Input Module is engineered to interface with various thermocouple types including J, K, and T, providing essential signal isolation that ensures measurement integrity in electrically noisy industrial environments.

Designed with four high-level input channels, the Discrete I/O Module 5464-333 Woodward enables simultaneous monitoring of multiple temperature points while incorporating advanced signal conditioning circuitry to maintain accuracy across diverse operating conditions. The module's sophisticated design incorporates amplification and filtering capabilities that compensate for signal variations, ensuring reliable performance even in challenging industrial settings.

The Woodward 5464-333 Analog Input Module demonstrates exceptional compatibility with Woodward's NETCON 5000 control system, facilitating seamless integration into existing automation architectures. This thermocouple input module delivers high-resolution temperature data crucial for precise process control, making it an ideal solution for applications demanding accurate thermal monitoring and management.

Built to withstand harsh industrial conditions, the Thermocouple Input Module 5464-333 maintains operational reliability through extreme temperatures, vibration, and shock exposures. The rugged construction of this Woodward module, combined with its user-friendly interface, ensures long-term performance stability while simplifying configuration and maintenance procedures for operational personnel.
