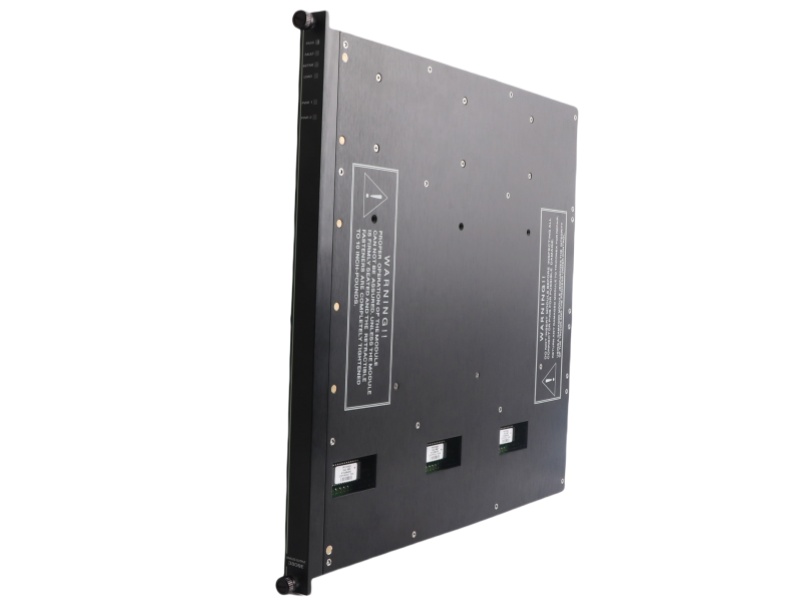

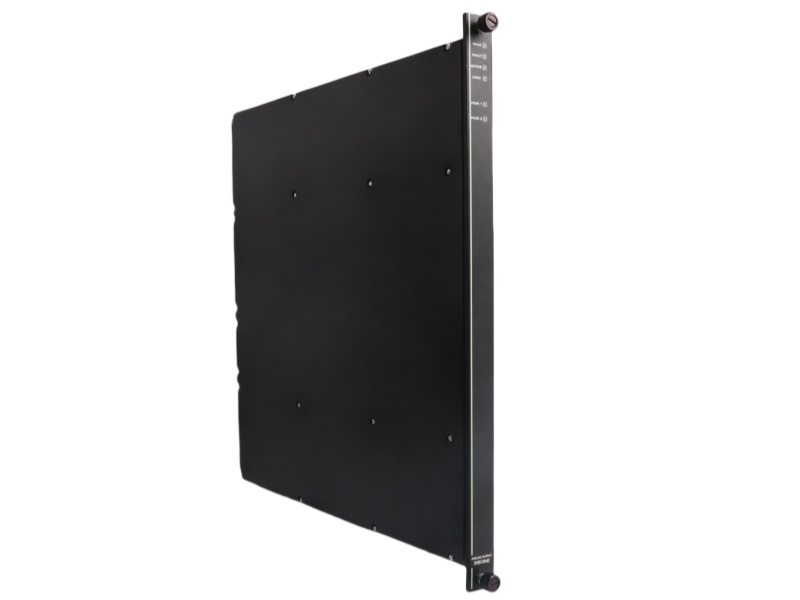

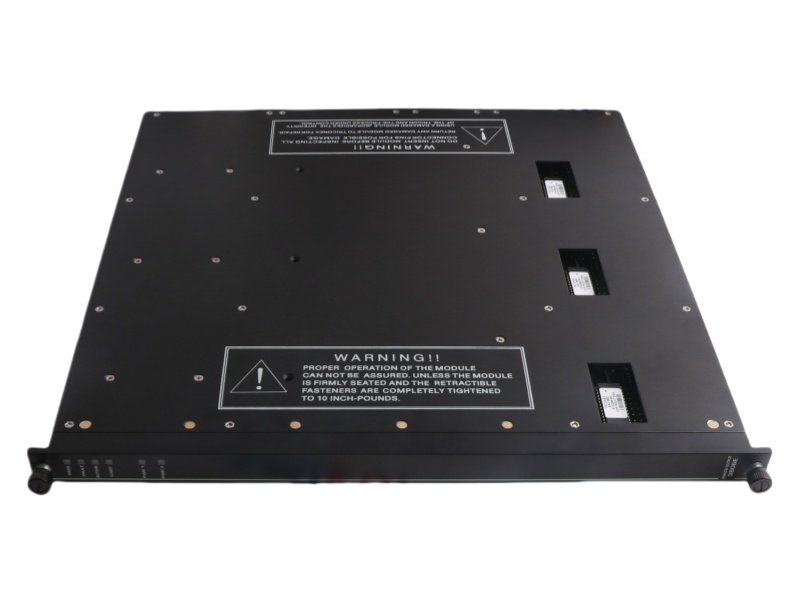

The Triconex 3806E Analog Output Module is a robust analog output module engineered to meet the demanding requirements of critical DCS applications. As a discontinued product by the original manufacturer, it remains highly sought after for legacy systems, with Radwell offering a dependable 2-year warranty. The TRICONEX 3806E supports both 4-20 mA and 20-320 mA analog output signals, making it versatile for integration into various industrial control environments where precise current loop outputs are essential.

Built with a triple modular redundancy (TMR) design, the ANALOG OUTPUT MODULE Triconex 3806E ensures exceptional reliability and system integrity. It features input/output isolation as well as isolation between channels, minimizing risks of cross-interference and enhancing operational safety. The module’s high precision output, rated at ±0.1%, covers ranges such as 0-10 V, 0-20 mA, and 0-5 V, ensuring accurate and stable process control. Its integrated SIL 3-rated HART filter further boosts security and compliance with critical safety standards.

Physically, the 3806E DCS IO Card​ Triconex comes in a compact design, approximately 4.4 cm x 16.9 cm x 22 cm (H x W x D), and weighs around 5 kg, though variations exist depending on configuration. It is engineered for adaptability in a wide range of industrial field environments, making it suitable for diverse applications in oil & gas, power, and chemical processing facilities. Its rugged construction enables stable performance even under harsh operational conditions.

Moreover, the PLC Module Triconex 3806E is equipped with advanced self-diagnostic capabilities, enabling timely fault detection and prompt alarm generation. These features ensure ongoing system health monitoring and reduce the risk of unplanned shutdowns. Overall, the Triconex 3806E 4-20mA and 20-320mA Analog Output remains a critical component for maintaining safety and reliability in established process automation infrastructures.
