9468/33-08-10 Overview

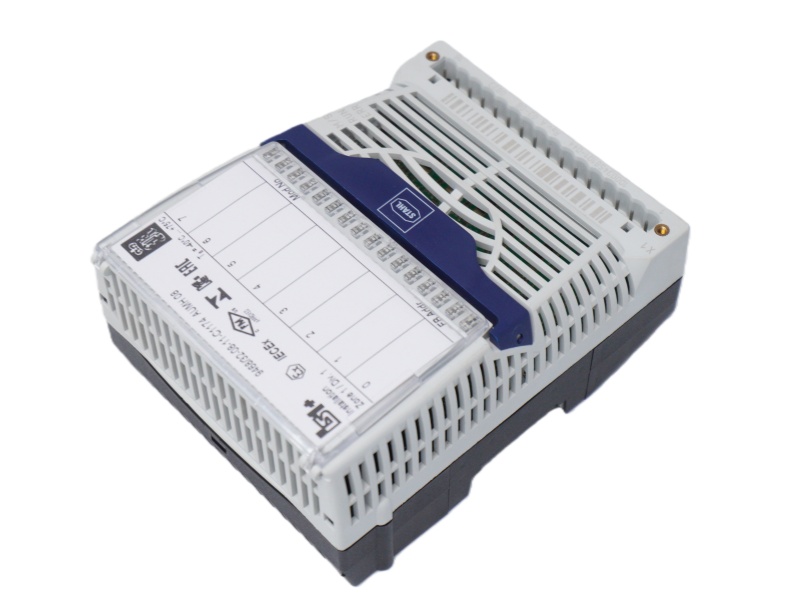

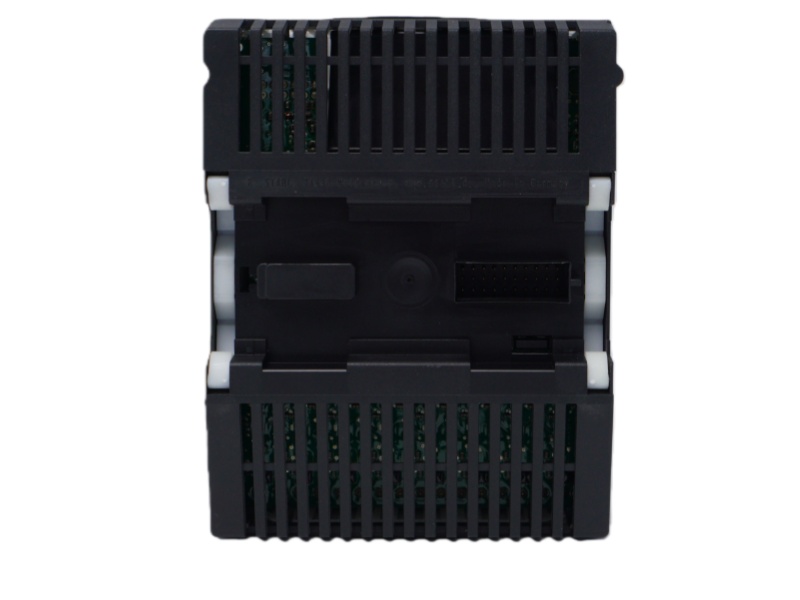

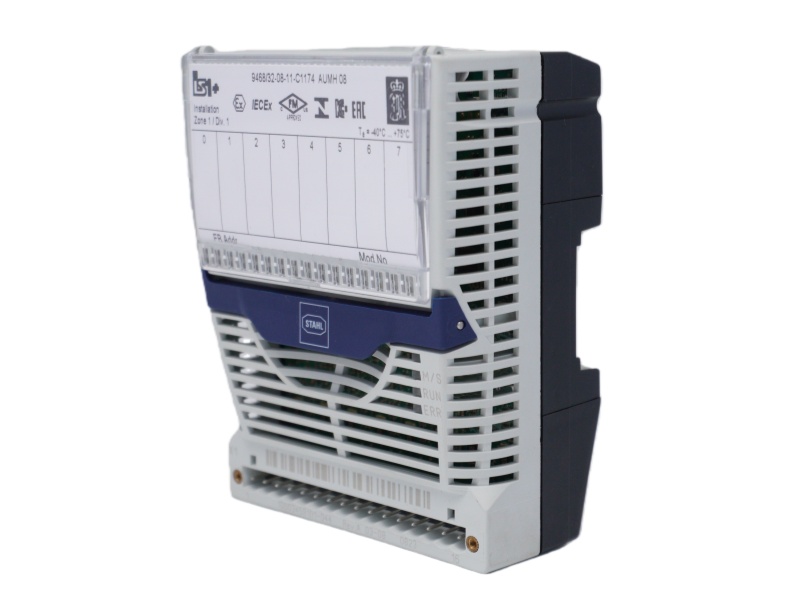

The 9468/ 33 series 9468/33-08-10 STAHL is an 8-channel HART analog universal module. It supports 0/4-20mA signals and is suitable for Zone 2 hazardous areas, enabling hot-swapping during operation.

High-Resolution Measurement

Flexible I/O Channels: Features eight individually configurable analog inputs/outputs.

HART Communication: Fully supports bidirectional HART protocol signals.

Wide Signal Range: Handles standard 0/4 to 20 mA current signals.

Advanced Diagnostics: Provides per-channel line fault monitoring compliant with NE107.

Intrinsic Safety: Certified for intrinsically safe (Ex ia) applications.

Hot-Swap Capability: Allows for module replacement in hazardous areas under voltage.

FAQ

Q1: What is the main function of this module?

A1: It is an 8-channel HART analog universal module for processing 0/4–20 mA signals from transmitters or positioners.

Q2: Can it be used in hazardous areas?

A2: Yes, it is certified for installation in Zone 2, Class I, Division 2 areas and supports hot-swapping under voltage.

Q3: Does it support line fault monitoring?

A3: Yes, each channel features individual line fault monitoring and diagnostics based on NE107.

Q4: What types of devices can it connect to?

A4: It connects to 2-wire/3-wire HART transmitters, 4-wire transmitters (with an additional 9164 module), and control valves/positioners.

Q5: Is it globally certified?

A5: Yes, it carries multiple international certifications including ATEX, IECEx, FM, and approvals for use in China, India, Korea, and marine applications.
