9440/15-01-11 Overview

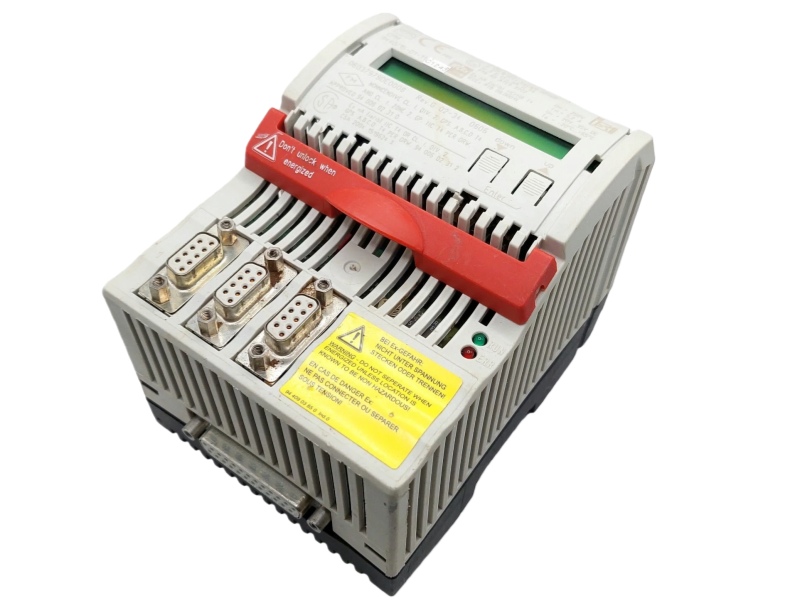

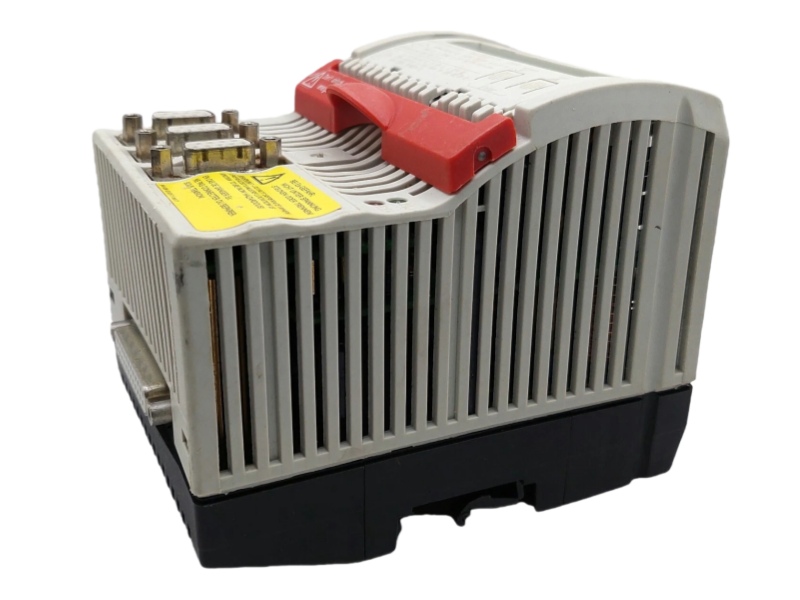

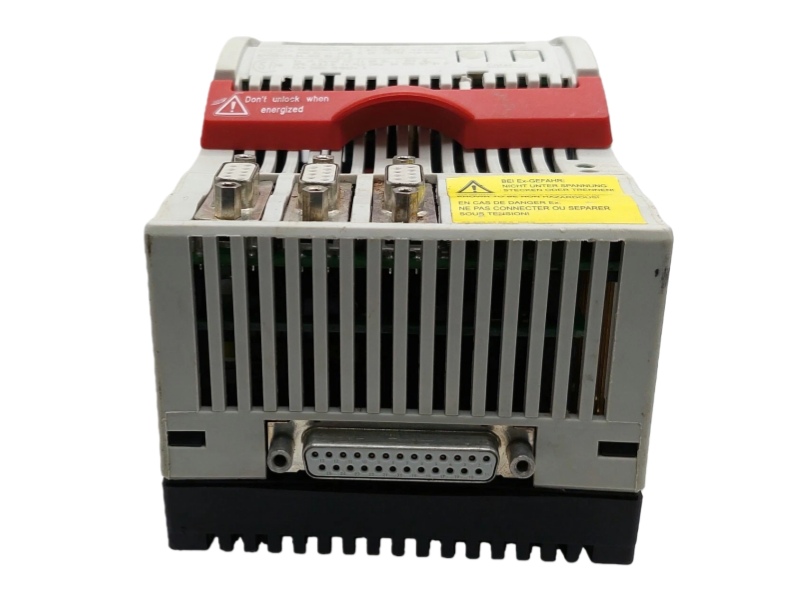

The STAHL 9440/15-01-11 is a CPU & Power Module designed for Zone 2 hazardous areas. It supplies intrinsically safe power to up to 16 IS1+ I/O modules and communicates via PROFIBUS DP or Modbus RTU, supporting system redundancy and asset management integration.

Control & Communication of STAHL 9440/15-01-11

Hazardous Area Network: Designed for Class I, Division 2 / Zone 2 hazardous locations.

Fieldbus Interface: Provides nonincendive RS485 interface for PROFIBUS DP V1/V0 HART or Modbus RTU communication.

System Connectivity: Supports optical ring network topologies for reliable data transmission.

Redundancy Support: Enables system redundancy configurations to enhance control availability.

Asset Management: Integrates with plant asset management systems via ServiceBus and FDT/DTM.

Control Capability: Serves as the master unit, controlling and powering up to 16 connected IS1+ I/O modules.

FAQ

Q1: What hazardous locations is the STAHL 9440/15-01-11 CPU & Power Module suitable for?

A1: It is suitable for Class I, Division 2, Group A-D or Class I, Zone 2, Group IIC/IIB hazardous locations.

Q2: What is the input voltage range of the STAHL 9440/15-01-11 module?

A2: Its input voltage range is 24 V DC (20 V … 35 V DC).

Q3: What data interfaces does the STAHL 9440/15-01-11 provide?

A3: It provides intrinsically safe BusRail and nonincendive RS485 interfaces.

Q4: How many IS1+ I/O modules can the STAHL 9440/15-01-11 supply power to?

A4: It can supply power to up to 16 IS1+ I/O modules and field circuits.

Q5: Does the STAHL 9440/15-01-11 support system redundancy?

A5: Yes, it supports system redundancy and optical rings.
