SIMATIC S7-1500 · SIWAREX WP522 ST
Two independently usable weighing channels for platform and hopper scales with analog load cells.

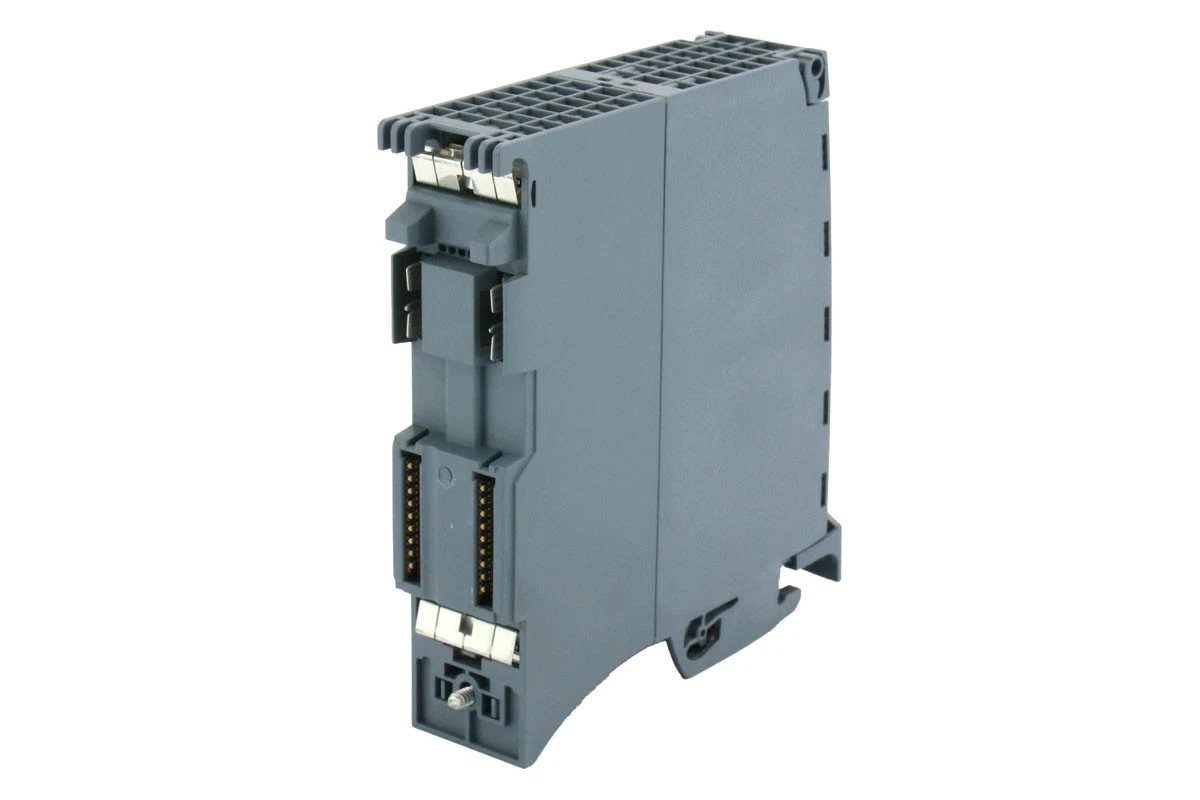

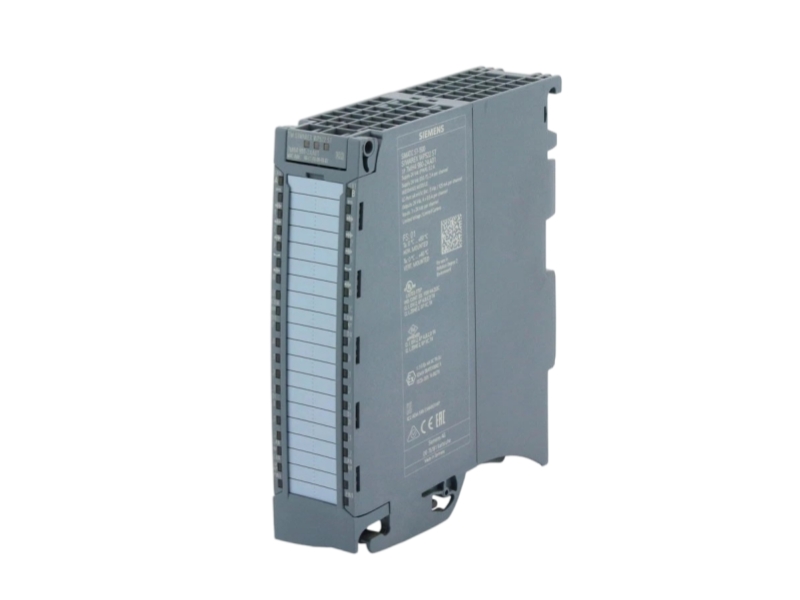

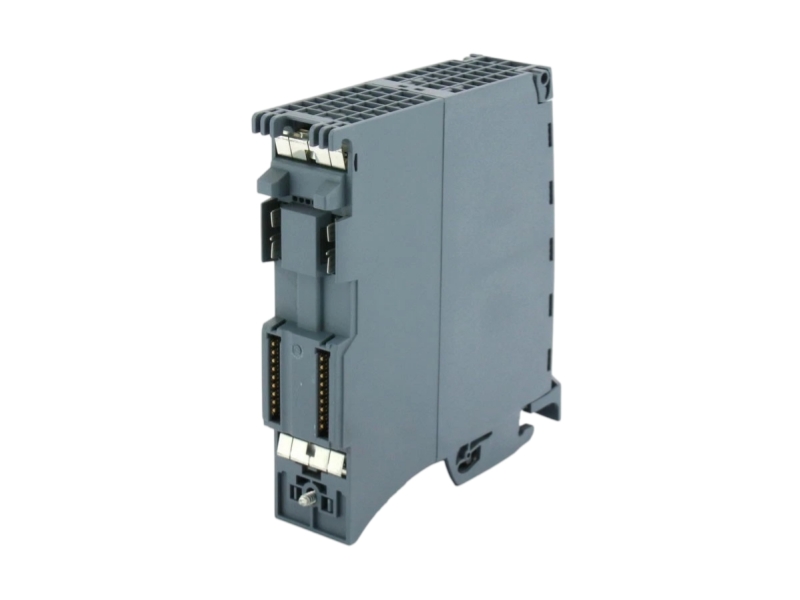

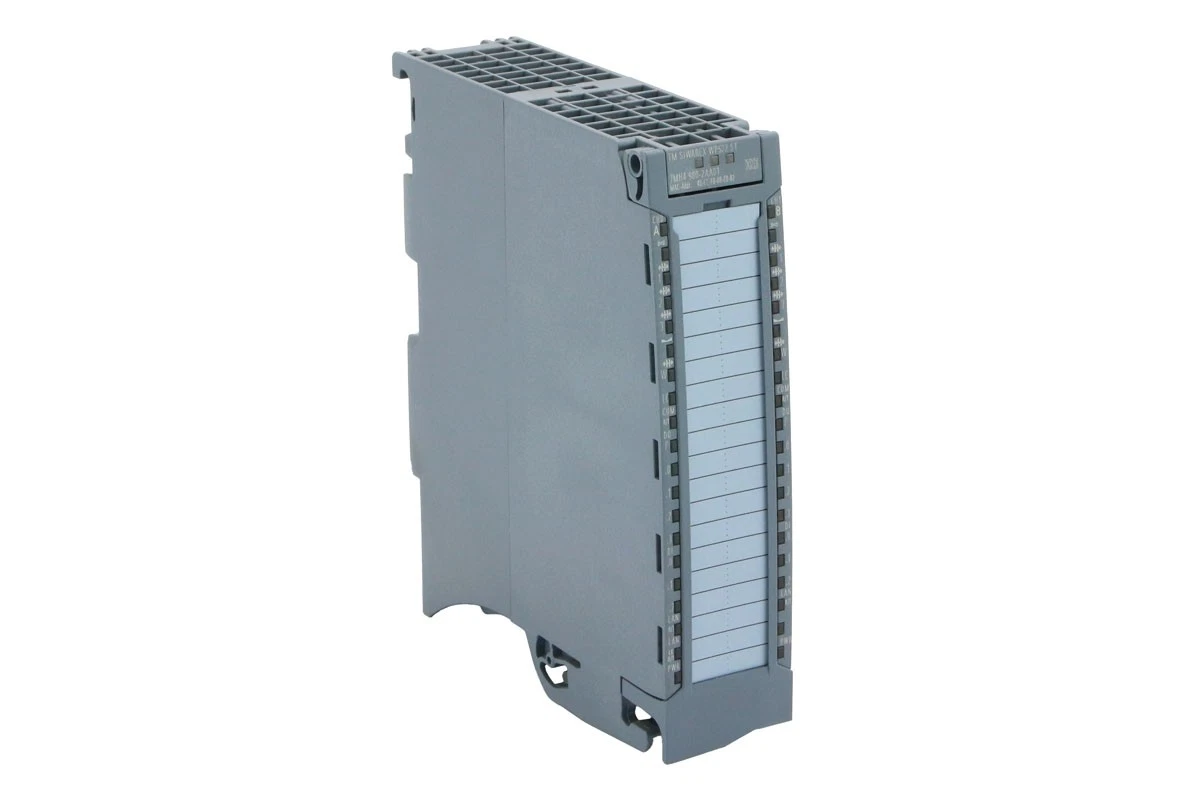

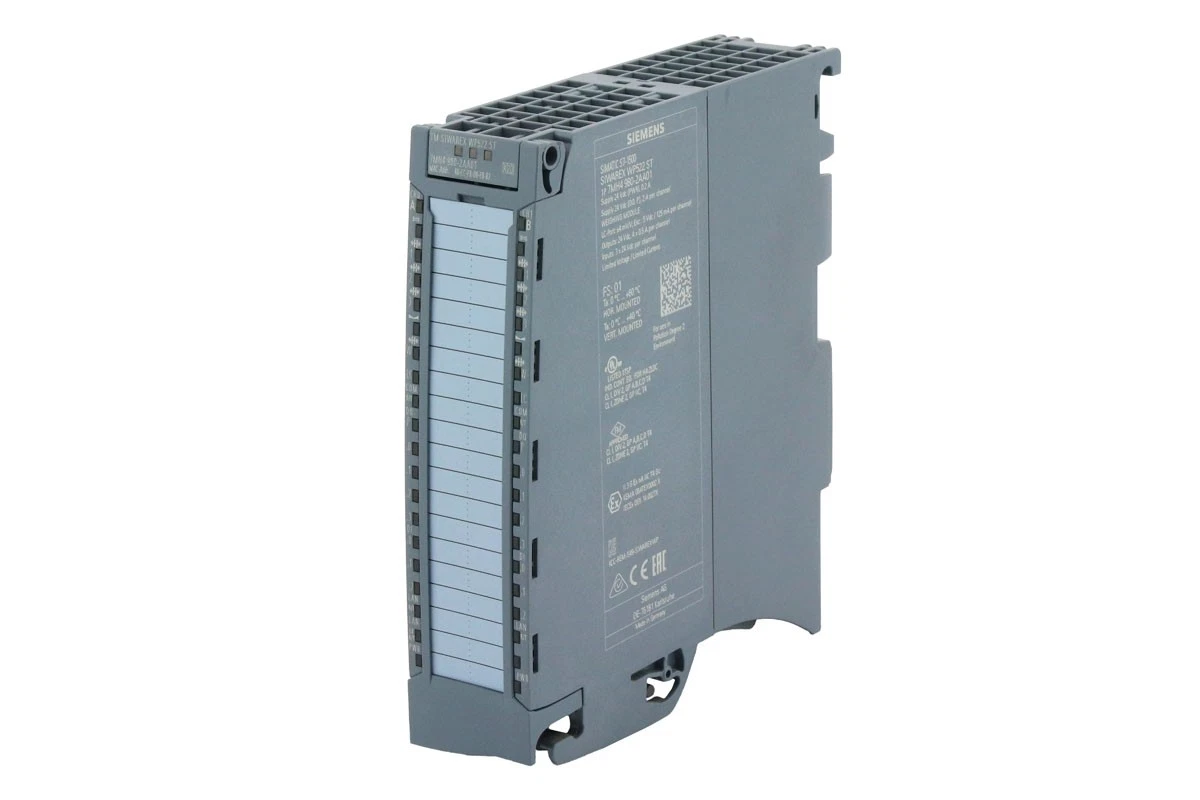

Siemens WP522 ST,7MH4980-2AA01 is the SIMATIC S7-1500 SIWAREX WP522 ST technology module for two independent weighing channels. It connects analog load cells or strain-gauge full bridges and supports platform or hopper scale tasks within an automation project. Siemens specifies Ethernet and RS485 communication, digital process signals and installation on the S7-1500 mounting rail. Procurement teams should verify the complete user-specified identifier, the official order code 7MH4980-2AA01, load-cell sensitivity, supply voltage, channel wiring, TIA Portal project requirements and readable product-label evidence before replacement approval.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | WP522 ST,7MH4980-2AA01 |
| Manufacturer Order Code | 7MH4980-2AA01 |
| Product Type | Two-channel weighing module |
| Series | SIWAREX WP522 ST for SIMATIC S7-1500 |
| Weighing Channels | 2 |
| Load-Cell Interfaces | 2; analog full bridges, 1 to 4 mV/V |
| Communication Interfaces | 1 x Ethernet; 1 x RS485 |
| Digital Inputs | 6 total; 3 per channel |
| Digital Outputs | 8 total; 4 per channel |
| Supply Voltage | 24 V DC; permissible 19.2 to 28.8 V |
| Engineering Software | STEP 7 in TIA Portal V14 or higher |
| Mounting | SIMATIC S7-1500 mounting rail |
| Net Weight | 0.200 kg |
| Country of Origin | Germany |
| Dual-Scale Automation | Controls two platform or hopper weighing applications from one S7-1500 technology module. |
|---|---|
| Batching and Filling | Provides weight values and process signals for dosing, filling and material-handling sequences. |
| Load-Cell Integration | Connects analog strain-gauge full bridges after sensitivity, excitation and wiring checks. |
| Maintenance Replacement | Used where channel assignments, project data and mechanical installation remain aligned. |
Siemens Industry Mall lists order code 7MH4980-2AA01 as PM300: Active Product. This status is retained exactly and is not converted into another lifecycle label.
It identifies the SIWAREX WP522 ST two-channel weighing module; the Siemens order code is 7MH4980-2AA01.
Siemens specifies two weighing channels for analog load cells or strain-gauge full bridges.
The official data sheet specifies one Ethernet interface and one RS485 interface.
No. Siemens lists the order code as PM300: Active Product.
Verify the complete identifier, S7-1500 slot, load-cell sensitivity, wiring, supply, TIA Portal project and calibration data.
