SIMATIC S7-400 · FM 452 FUNCTION MODULE
High-speed encoder evaluation and sixteen cam-track outputs for position-dependent control in SIMATIC S7-400 applications.

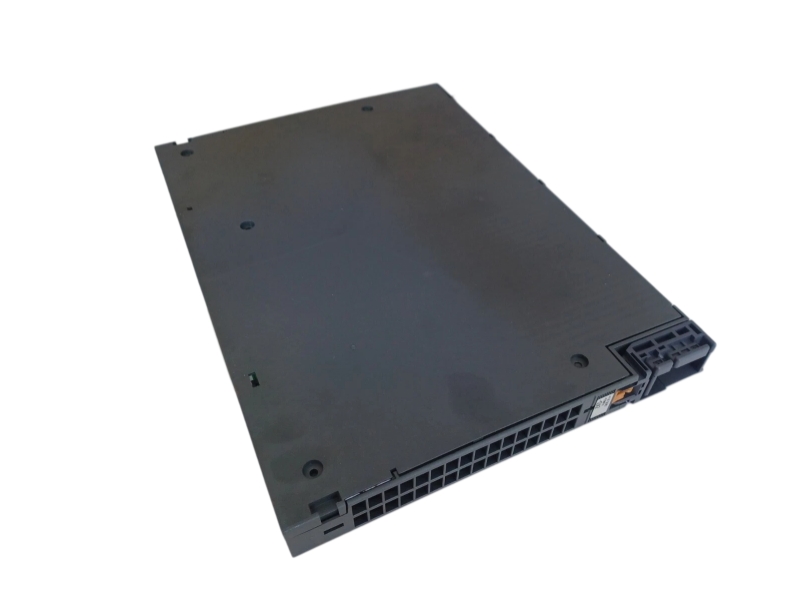

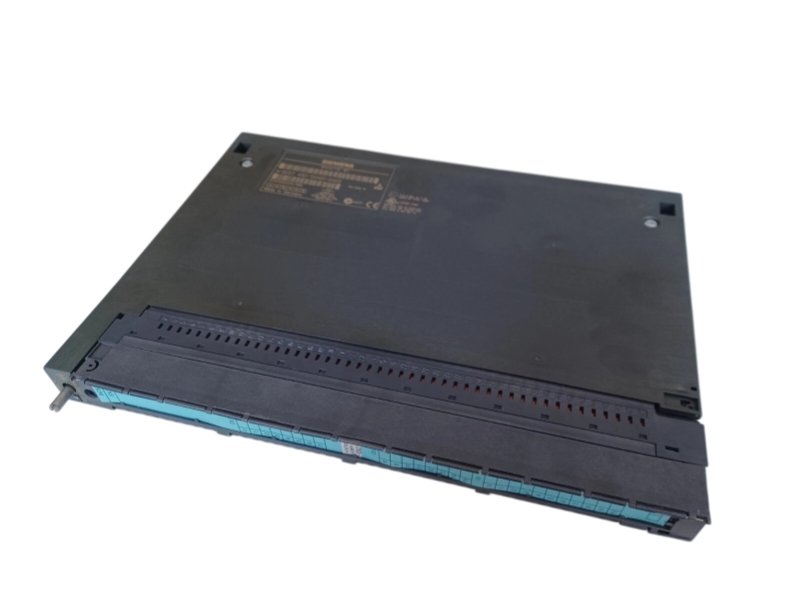

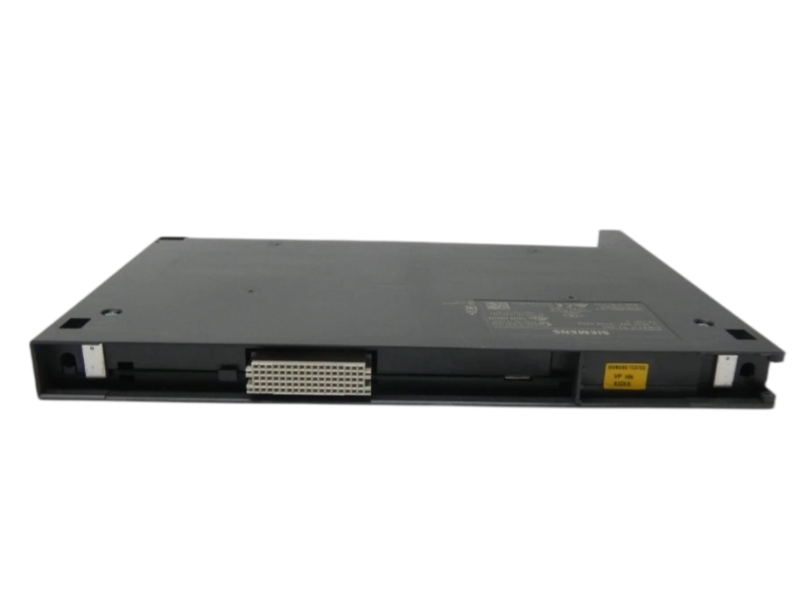

Siemens 6ES7452-1AH00-0AE0 is the SIMATIC S7-400 FM 452 electronic cam controller supplied with a configuration package on CD. It evaluates incremental or SSI encoder signals and switches sixteen digital cam-track outputs according to configured position values. The module provides eleven digital inputs for functions including reference-point switching, flying actual-value setting, length measurement, brake release and track enabling. It is designed for deterministic position-related control in machinery and material-handling applications. Procurement and replacement work should verify the complete suffix, front connector, encoder type, signal voltage, project parameters, CPU and rack compatibility, wiring and readable product label before installation.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out since 2025-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7452-1AH00-0AE0 |
| Product Type | Electronic cam controller function module |
| Product Designation | SIMATIC S7-400 FM 452 |
| Configuration Package | Included on CD |
| Rated Supply Voltage | 24 V DC |
| Maximum Current Consumption | 500 mA |
| Digital Inputs | 11 |
| Digital Outputs | 16 cam-track outputs |
| Maximum Output Current | 600 mA at 0 to 55 °C with UPmax |
| Encoder Supply | 5 V DC and 24 V DC, maximum 300 mA |
| Supported Encoders | Symmetrical and asymmetrical incremental encoders; SSI absolute encoder; 2-wire sensor |
| Maximum Symmetrical Encoder Frequency | 1 MHz |
| Required Front Connector | 1 x 48-pin |
| Dimensions | 25 x 290 x 210 mm |
| Weight | Approximately 650 g |
| Operating Temperature | 0 to 55 °C |
| Country of Origin | GERMANY |
01
02
03
| Electronic Cam Switching | Controls position-dependent outputs in packaging, assembly and converting machinery. |
|---|---|
| Encoder-Based Position Control | Processes symmetrical or asymmetrical incremental encoders and SSI absolute encoders. |
| Length Measurement | Supports flying actual-value setting and length-measurement functions in moving processes. |
| Maintenance Replacement | Used where the S7-400 hardware configuration, wiring and project parameters must remain aligned. |
Siemens Industry Mall lists 6ES7452-1AH00-0AE0 as PM300: Active Product and states that product phase-out started on 2025-10-01. The lifecycle wording is retained exactly and is not replaced with Discontinued.
It identifies the SIMATIC S7-400 FM 452 electronic cam controller supplied with a configuration package on CD.
Siemens specifies eleven digital inputs and sixteen digital outputs used as cam-track outputs.
The module supports symmetrical and asymmetrical incremental encoders, SSI absolute encoders and 2-wire sensors.
No. Siemens lists PM300: Active Product and states that product phase-out started on 2025-10-01.
Verify the suffix, hardware revision, S7-400 configuration, encoder signals, front connector, wiring and project parameters.
