Product information

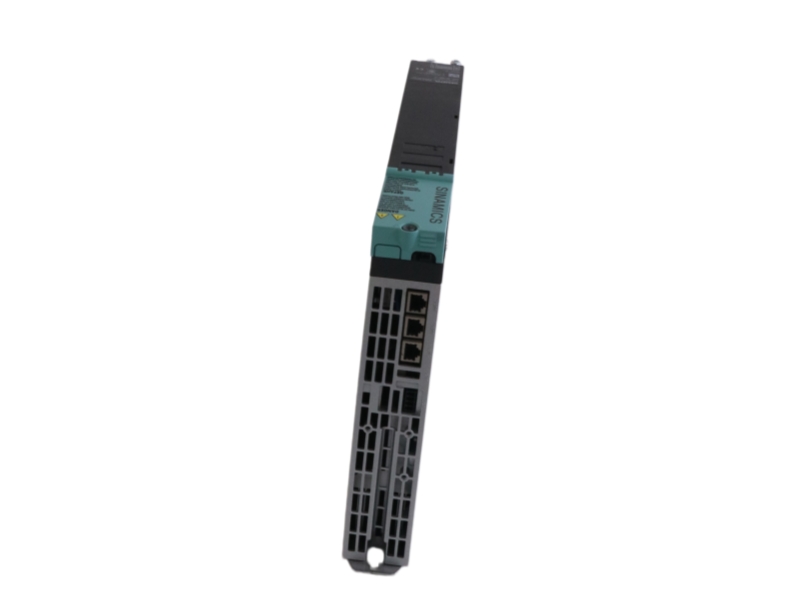

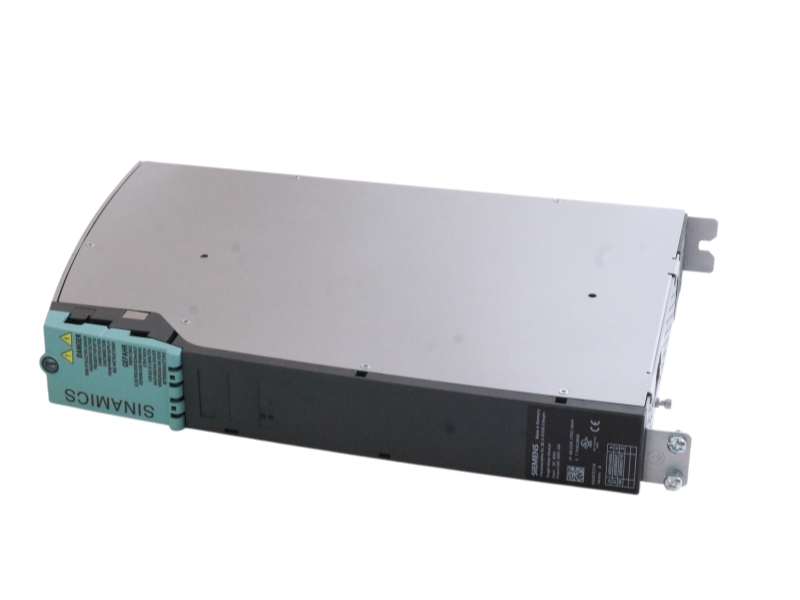

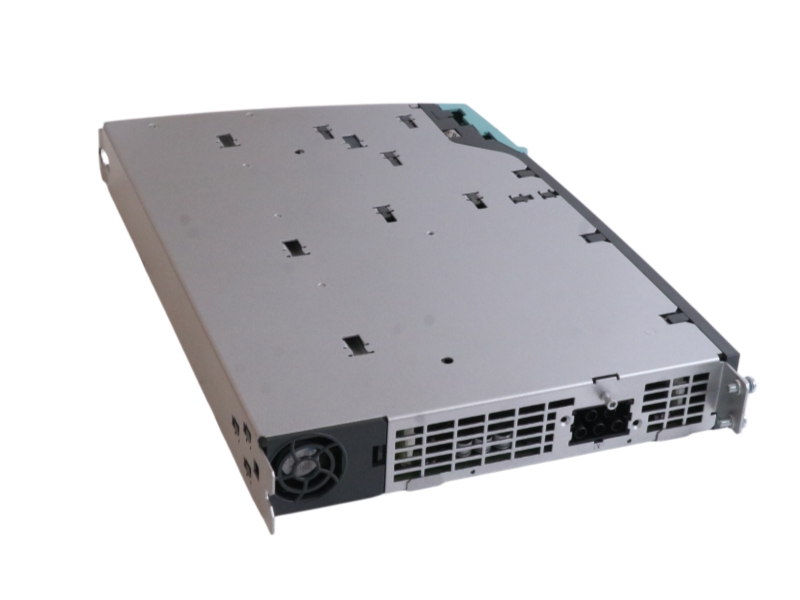

The Siemens 6SL3120-2TE21-0AA4 Double Motor Module is a compact dual-axis drive solution featuring integrated DC busbars, DRIVE-CLiQ interfaces, and advanced safety functions for efficient motor control.

Features and benefits

• Dual-axis module with integrated DC link busbars

• 24 V DC electronics supply via internal bus system

• 4 × DRIVE-CLiQ interfaces for communication

• Supports 2 motor connections and brake control

• Built-in safety: safe standstill inputs per axis

• LED status indication with temperature sensor inputs

FAQ

Q1: What is the main function of this module?
A1: It controls two motor axes with integrated power and communication interfaces.、

Q2: How many DRIVE-CLiQ ports are available?
A2: It includes four DRIVE-CLiQ sockets for system communication.

Q3: Does it support safety functions?
A3: Yes, it provides safe standstill inputs and motor brake control.

Q4: How is the module status displayed?
A4: Status is indicated via two multi-color LEDs.

Q5: Can cable shielding be integrated?
A5: Yes, motor and signal cable shields can be properly connected.
