A5E37764609 Overview

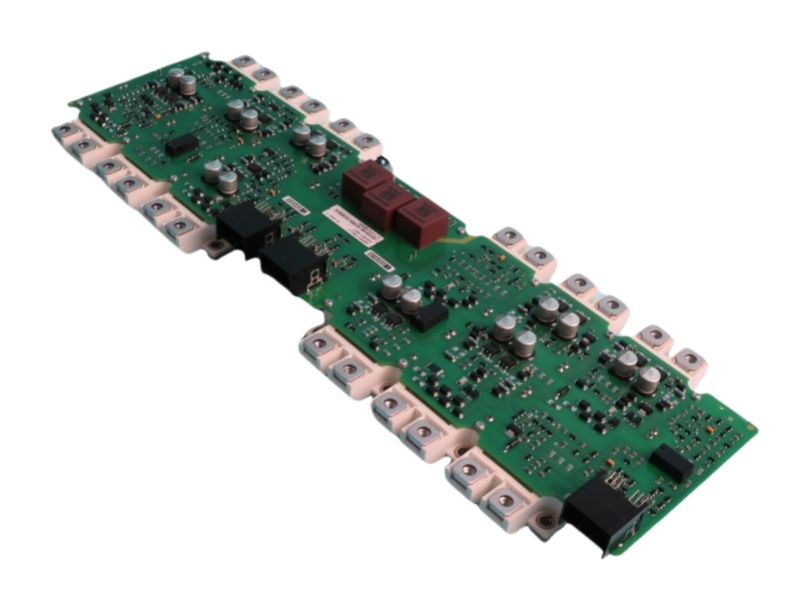

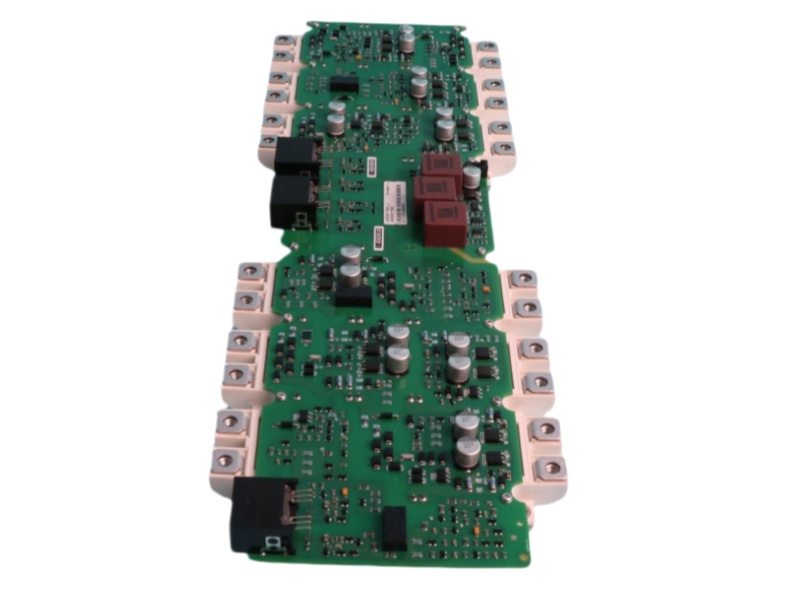

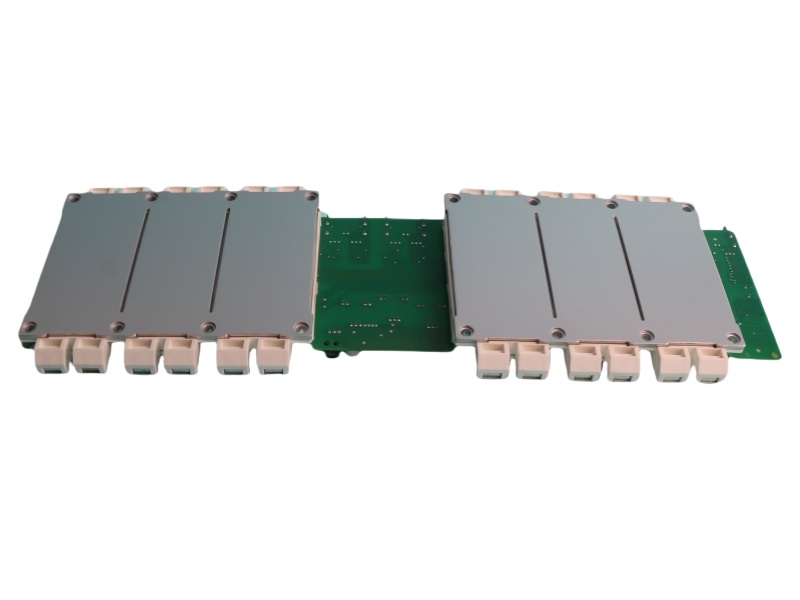

The Siemens A5E37764609 NXGpro controller 15 Cell is a printed circuit board for GH180 NXGpro DCR controllers. Designed for 15-cell configurations (6SR0960-0CC15-0AD0), this 0.85 kg module enables precise power cell management in medium-voltage drives.

Technical Data Summary

Product Identity: Printed circuit board for GH180 NXGpro DCR controllers in medium-voltage drive systems.

Cell Configuration: Designed specifically for 15-cell applications compatible with 6SR0960-0CC15-0AD0 cell specification.

Manufacturer: Produced by Siemens Robicon, ensuring quality and reliability for industrial drive applications.

Physical Dimensions: Estimated shipping size of 20.5 cm x 11.9 cm x 7 cm for compact installation.

Weight: Lightweight design at approximately 0.85 kg for easy handling during maintenance.

Primary Function: Enables precise power cell control and management within NXGpro DCR controller architectures.

FAQ

Q1: What is the Siemens A5E37764609?

A1: It is a printed circuit board (PCB) for GH180 NXGpro DCR controllers, designed for 15-cell medium-voltage drive configurations.

Q2: What cell specification is this board compatible with?

A2: It is compatible with the 6SR0960-0CC15-0AD0 cell specification for NXGpro DCR controller systems.

Q3: What are the physical dimensions and weight of this board?

A3: It has an estimated shipping size of 20.5 cm x 11.9 cm x 7 cm and weighs approximately 0.85 kg.

Q4: Who manufactures the A5E37764609?

A4: It is manufactured by Siemens Robicon, a leading provider of medium-voltage drive solutions.

Q5: What is the primary function of this printed circuit board?

A5: It enables precise power cell control and management within NXGpro DCR controller architectures for GH180 drive systems.
