Siemens 7ME35101CA000AA0 SITRANS FUP1010

IP67 single-channel portable ultrasonic flowmeter configuration for non-intrusive pipe measurements

Product Overview

Siemens 7ME35101CA000AA0 is an exact configuration of the SITRANS FUP1010 portable clamp-on ultrasonic flowmeter family. Siemens ordering data identifies this code as an IP67 weatherproof, battery-powered, single-channel unit with the standard I/O package. The suffix configuration specifies no sensor cable, no RTD, no battery charger and no measuring sensors, so the required transducers, cable and charging accessories must be confirmed separately for the intended pipe and liquid.

Commercial Status

Verified Technical Data

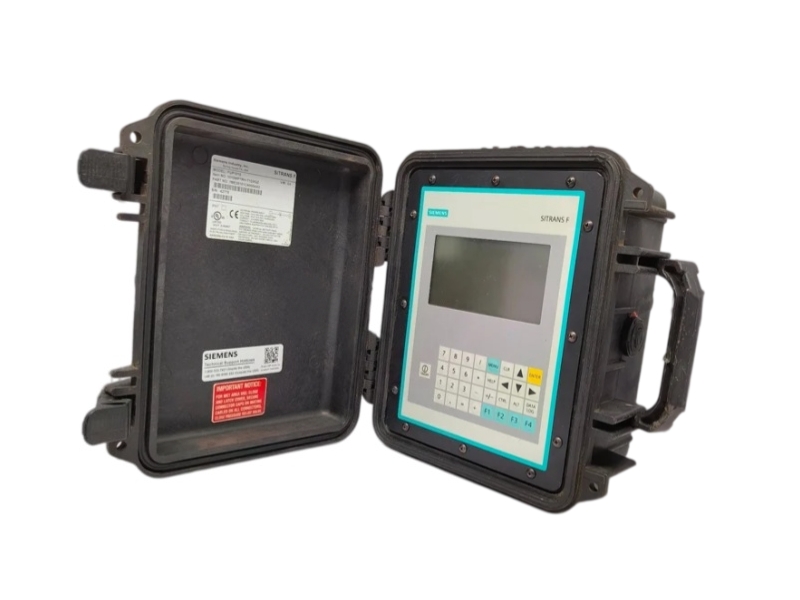

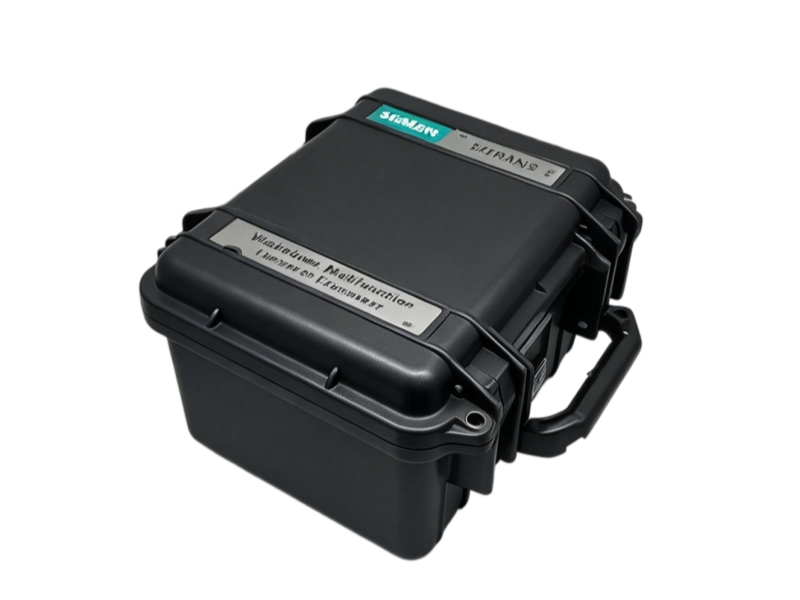

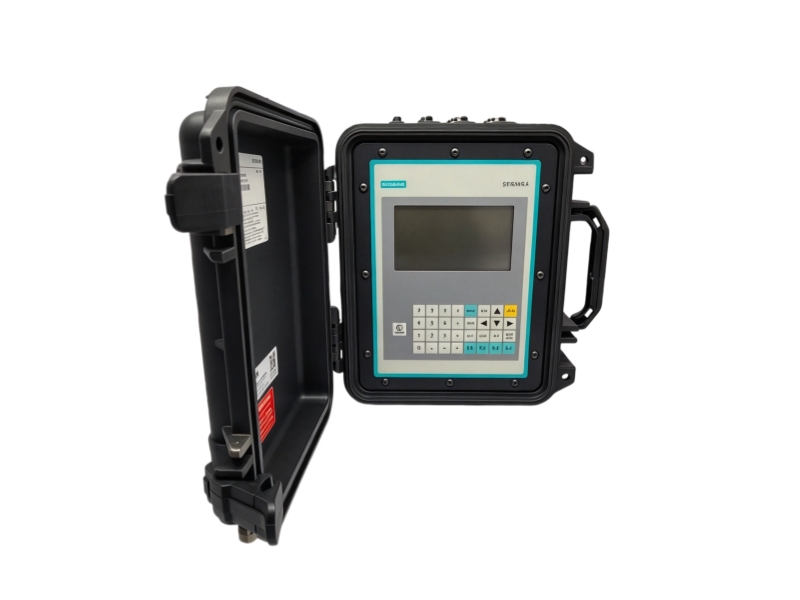

Product Photo Evidence

System Fit and Applications

The FUP1010 supports temporary or survey flow measurements where the pipe should not be cut or opened. Typical uses include water and process-liquid checks, commissioning support, energy or balance investigations, pump performance review and troubleshooting of existing piping. The suitability of clamp-on measurement depends on pipe material, outside diameter, wall thickness, lining, liquid condition, acoustic path and the selected transducer set.

Configuration-specific reminder

This order code is a meter configuration without the external sensing and charging items identified above. It should not be represented as a complete ready-to-measure kit unless the quotation separately lists the compatible transducers, cables, mounting components and charger.

Compatibility and Procurement Checks

• Match the complete 7ME35101CA000AA0 identifier and the formatted Siemens MLFB.
• Confirm pipe material, outer diameter, wall thickness, liner and liquid acoustic properties.
• Select compatible clamp-on transducers and mounting hardware for the pipe range.
• Specify required sensor-cable length, charger plug type and any RTD temperature inputs.
• Review I/O signal requirements, logging needs and the single-channel measurement plan.
• Request photographs of the nameplate, meter terminals and all included accessories before dispatch.

Lifecycle Note

Frequently Asked Questions

What is Siemens 7ME35101CA000AA0?

It is a single-channel SITRANS FUP1010 portable clamp-on ultrasonic flowmeter configuration.

Is it designed for non-intrusive measurement?

Yes. Compatible ultrasonic transducers mount outside the pipe, avoiding direct contact with the measured liquid.

Are sensors and cables included in this exact code?

No. Siemens ordering codes A and A specify no sensors, while cable code A specifies no sensor cable.

Does this code include a charger or RTD?

No. The exact suffix specifies no battery charger and no clamp-on RTD.

What must be checked before ordering accessories?

Confirm the pipe, liquid, temperature, transducer size, cable length, charger region and required I/O configuration.
