A rugged IP65 control unit for decentralized SINAMICS G120D drive systems using PROFIBUS DP communication.

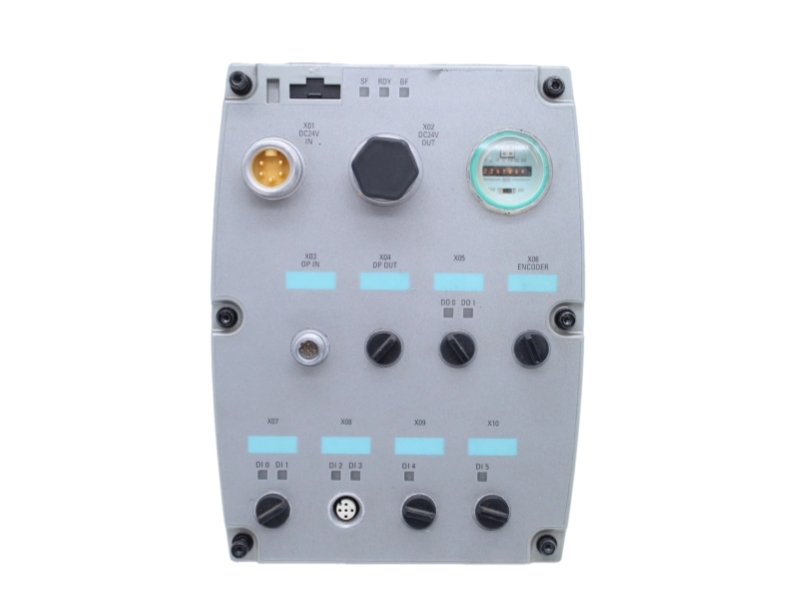

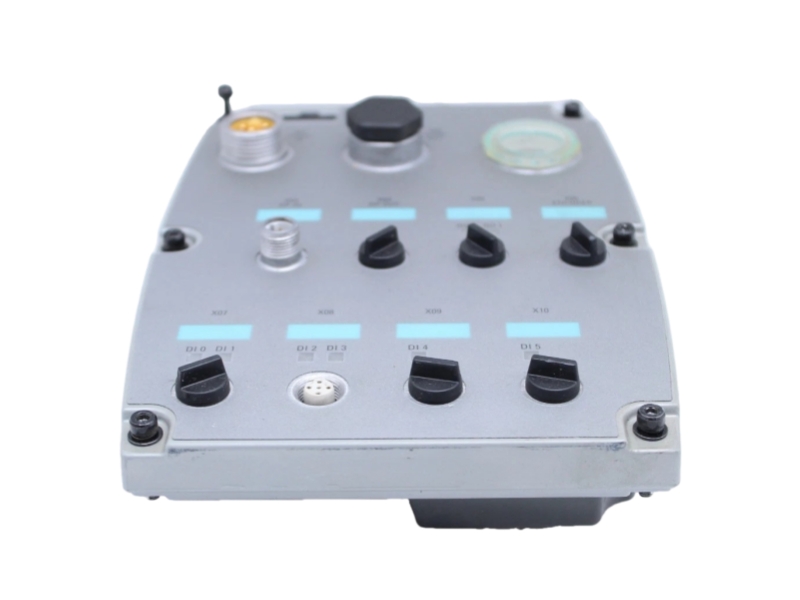

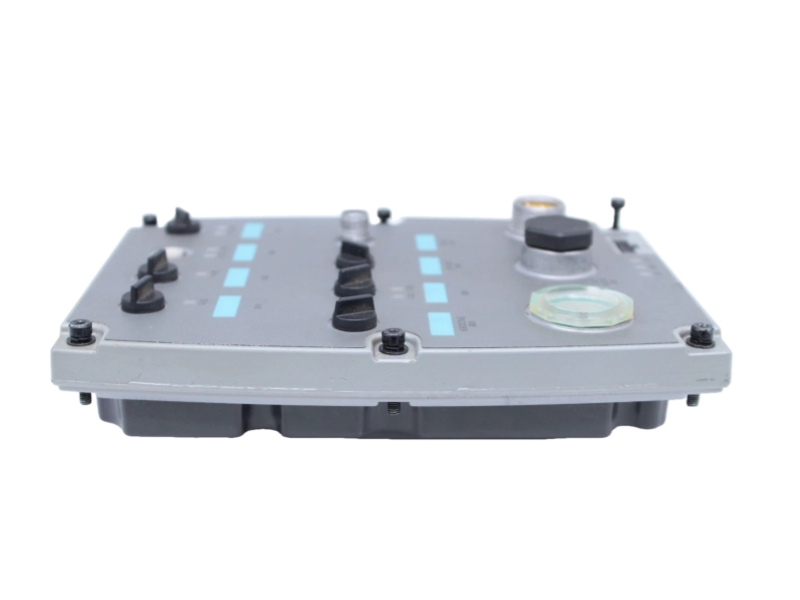

The Siemens 6SL3544-0FA20-1PA0 is the SINAMICS G120D CU240D DP control unit. It manages drive-control functions at the machine and communicates with the automation system through PROFIBUS DP. Its integrated digital I/O, PTC/KTY temperature input, electromagnetic-brake control, MMC interface and encoder connection support distributed conveyor and material-handling architectures.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6SL3544-0FA20-1PA0 |
| Product Family | SINAMICS G120D |
| Product Type | CU240D DP control unit |
| Parameter | Official specification |
|---|---|
| Communication | PROFIBUS DP |
| External operating voltage | 24 V DC required |
| Digital inputs / outputs | 6 DI / 2 DO |
| Motor temperature input | PTC/KTY interface |
| Additional interfaces | Electromagnetic-brake control, MMC interface and encoder interface |
| Current consumption | 200 mA with FSA/FSB Power Modules; 350 mA with FSC Power Module |
| Degree of protection | IP65 |
| Operating temperature | -10 to +55 °C without Power Module |
| Storage temperature | -40 to +70 °C |
| Relative humidity | Below 95% RH, non-condensing |
| Dimensions (W × H × D) | 150 × 210 × 40 mm |
| Weight | Approximately 0.7 kg |
Local drive control with PROFIBUS DP communication reduces long motor-cable runs in conveyor and intralogistics systems.
Integrated I/O, encoder feedback and brake control support coordinated machine sections and motorized handling equipment.
The protected enclosure is designed for decentralized installation near the driven machine when the specified environmental limits are met.
It is a Siemens SINAMICS G120D CU240D DP control unit for decentralized drive applications.
The exact version communicates through PROFIBUS DP.
No. The DP-F order code is different; procurement must preserve the full suffix.
It is identified as a Control Unit. Confirm the offered scope and the matching Power Module separately.
Confirm the nameplate code, firmware, Power Module, 24 V supply, PROFIBUS configuration, encoder, sensor and brake connections.
Send the complete order number and existing drive details for stock verification, compatibility review, warranty terms and global delivery options.
Ask about 6SL3544-0FA20-1PA0Structured support for identifying, evaluating, packing and delivering the 6SL3544-0FA20-1PA0 control unit.
| Stage | Service | What we review |
|---|---|---|
| 01 | Application matching | SINAMICS G120D Power Module, motor, PROFIBUS DP network, encoder, temperature sensor and brake requirements. |
| 02 | Identity verification | Full order number, suffix, nameplate details, firmware information and visible hardware revision. |
| 03 | Incoming inspection | Housing, connectors, seals, terminal areas and traceability markings are checked against the offered condition. |
| 04 | Protective packing | ESD protection, connector shielding, moisture control and impact-resistant outer packaging for industrial electronics. |
| 05 | Global logistics | Shipment planning, commercial documents, tracking information and delivery coordination for the destination country. |
| 06 | Warranty follow-up | Warranty scope and return procedure are stated with the quotation and order documentation. |
Full MLFB, serial number, firmware and readable product label.
Power Module frame size, motor data, encoder and brake arrangement.
PROFIBUS DP topology, connector type and control-system context.
Required quantity, destination, target date and condition preference.
Before installation, archive the existing parameters and confirm the commissioning procedure for the installed drive. Replacement decisions should be based on the complete hardware and network configuration, not only the series name.
Send your 6SL3544-0FA20-1PA0 nameplate details and application information for a configuration-focused response.
