SINAMICS G120D Drive Component
Regenerative-capable 7.5 kW power module for distributed industrial drive systems.
The Siemens 6SL3525-0PE27-5AA1 is a SINAMICS G120D PM250D power module for distributed drive applications. It provides a 7.5 kW rated output from a three-phase 380–500 V AC supply and supports energy recovery through its integrated Class A filter design. The IP65 / UL Type 3 enclosure and demand-driven fan cooling suit installation near machinery without a separate control cabinet. This frame-size FSC unit is supplied without a Control Unit. For procurement or replacement, verify the full suffix, supply range, connector versions, motor current, Control Unit compatibility, firmware requirements, installation space and nameplate evidence before approval.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6SL3525-0PE27-5AA1 |
| Product Type | SINAMICS G120D PM250D Power Module with integrated Class A filter, without Control Unit |
| Input Supply | 3 AC, 380–500 V ±10%, 47–63 Hz |
| Rated Input Current | 17.70 A |
| Rated Output | 3 AC, 400 V, 7.50 kW, 19.00 A |
| Maximum Output Current | 38.00 A |
| Line-Side Connection | HAN Q4/2 connector |
| Motor-Side Connection | HAN Q8 socket |
| Maximum Motor Cable Length | 15 m shielded; 30 m unshielded |
| Degree of Protection | IP65 / UL Type 3 |
| Frame Size | FSC |
| Dimensions | 445 × 210 × 220 mm (W × H × D) |
| Net Weight | 8.50 kg |
| Cooling | Demand-driven air cooling via integrated fan |
| Operating Temperature | −10 to +55 °C |

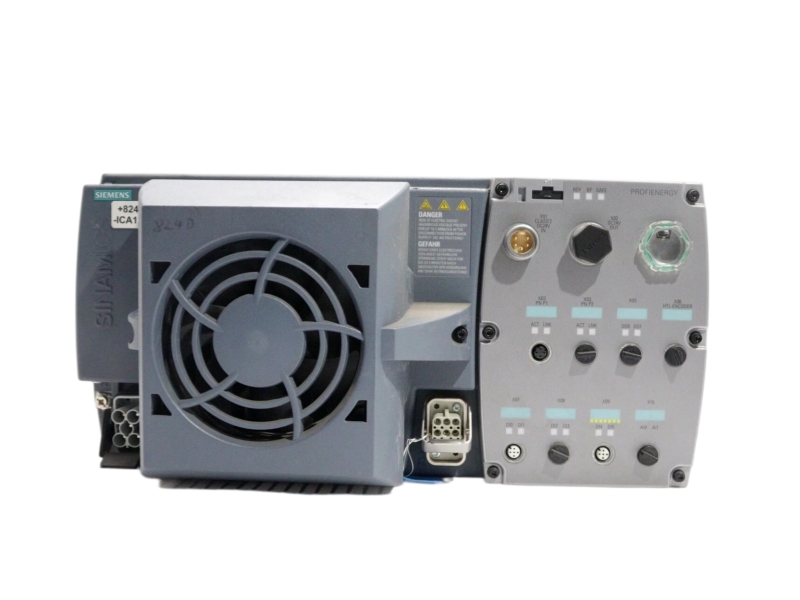

Front-facing photo showing the complete enclosure and connectors.
Recommended: 1200 × 1200 px
Readable image showing Siemens branding, full part number and suffix.
Recommended: 1200 × 800 px
Photo showing packaging, seals, supplied items and visible condition.
Recommended: 1200 × 900 px
| Distributed Drive Stations | Motor speed and torque control where a SINAMICS G120D PM250D power stage is specified. |
|---|---|
| Regenerative Applications | Systems requiring energy recovery capability through the integrated Class A filter design. |
| Machine-Level Installation | IP65 equipment layouts using the specified HAN connectors and compatible Control Unit. |
| Maintenance Replacement | Replacement of a matching article only after electrical, connector, firmware and mounting checks. |
| Check | Procurement Requirement |
|---|---|
| Identity | Match the complete 6SL3525-0PE27-5AA1 suffix and readable nameplate. |
| Electrical Configuration | Confirm supply voltage, motor rating, rated current and overload requirements. |
| Interfaces | Check HAN Q4/2 and HAN Q8 connection arrangements, PE connection and cable lengths. |
| Control and Software | Review Control Unit compatibility, firmware, parameters and project configuration. |
| Mechanical Fit | Confirm FSC dimensions, mounting position, cooling clearance and enclosure condition. |
| Evidence | Review product, connector, label and packaging photos before order approval. |
The Siemens data sheet used for this page confirms the exact article number and technical configuration but does not state a lifecycle classification. No discontinued or obsolete conclusion is applied. Procurement teams should review the current Siemens order-entry status when placing an order.
It identifies a Siemens SINAMICS G120D PM250D power module with integrated Class A filter, 7.5 kW rating and FSC enclosure.
No. The Siemens product description specifies that the PM250D power module is supplied without a Control Unit.
Check the three-phase supply, 7.5 kW motor duty, rated current, overload profile, connectors and compatible Control Unit.
The Siemens data sheet reviewed for this page does not state a lifecycle classification, so no discontinuation conclusion is presented.
Product, nameplate, connector and packaging photos can be requested for identity and condition review before approval.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Stockoems Service Route
A documented workflow for industrial automation procurement, order review and after-sales communication.
| Model and suffix verification | The complete part number and every suffix character are compared with the request and label evidence. |
|---|---|
| Condition confirmation | Visible condition, seals, housing, connectors and supplied items are reviewed before release. |
| Technical compatibility review | Supply, interfaces, ratings, hardware revision, firmware and project requirements are checked with the buyer. |
| Product and label photo confirmation | Readable product, nameplate, connector and packaging images support final identity checks. |
| Protective packaging | Packaging is selected for the product format, connector protection and international transport route. |
| Worldwide shipping | Available transport options are coordinated according to destination, product type and order requirements. |
| Shipment tracking | Tracking details are provided when available from the selected logistics route. |
| Customs documentation | Commercial and shipping documents are prepared for the agreed destination and transport method. |
| Written warranty terms | Applicable Stockoems warranty scope and conditions are documented with the order. |
| Return authorization process | Return requests follow a documented authorization and evidence review procedure. |
| After-sales response | Order records support efficient communication about delivery, condition and technical questions. |
Look for exact suffix verification, readable label evidence, clear condition language, traceable communication, written warranty terms and a defined return authorization process.
Common risks include incomplete part numbers, reused or unclear photos, unsupported compatibility claims, unexplained substitutions and unconfirmed delivery promises.
Request nameplate and connector photos, hardware or firmware information when relevant, packaging evidence and written confirmation of the ordered suffix.
Send the complete part number, required quantity, destination country and available label photos for service coordination.
