SIEMENS SIMATIC DISTRIBUTED DRIVES
SIMATIC ET 200pro FC-2 frequency converter
The Siemens 6SL3514-1KE13-5AE0 is a SIMATIC ET 200pro FC-2 distributed frequency converter with integrated Safe Torque Off. It accepts 380–480 V three-phase AC at 47–63 Hz and is designed for motor control close to the machine.
Siemens specifies 1.1 kW output from 0 to +55 °C and 1.5 kW from 0 to +45 °C, regenerative operation with brake control, a Class A EMC filter, and short-time overload capacity for demanding conveyor and logistics applications.
| Item | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Exact Article Number | 6SL3514-1KE13-5AE0 |
| Official Designation | SIMATIC ET 200pro FC-2 Frequency Converter |
| Lifecycle | PM300: Active Product |
| Country of Origin | GERMANY |
| Technical Item | Official Data |
|---|---|
| Input supply | 380–480 V 3 AC, +10 / -10% |
| Input frequency | 47–63 Hz |
| Rated output | 1.1 kW at 0…+55 °C; 1.5 kW at 0…+45 °C |
| Overload capacity | 150% for 60 s; 200% for 3 s |
| Safety function | Safety Integrated STO |
| Energy function | Energy recovery with brake control, 180 V DC |
| EMC filter | Class A |
| Module width | 155 mm |
| Net weight | 4.00 kg |

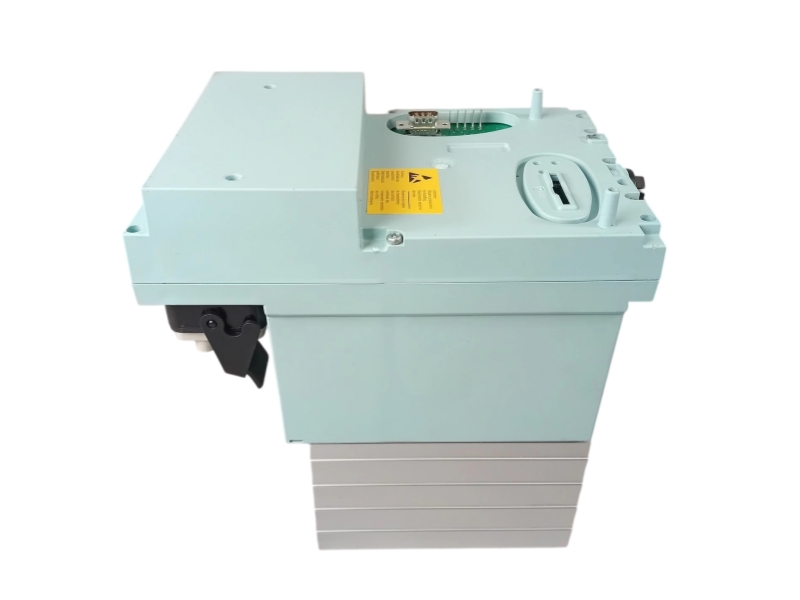

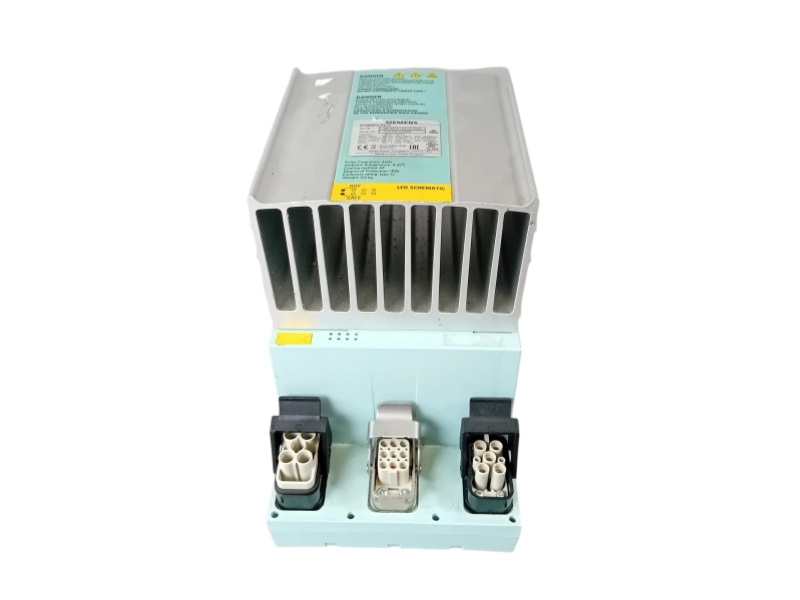

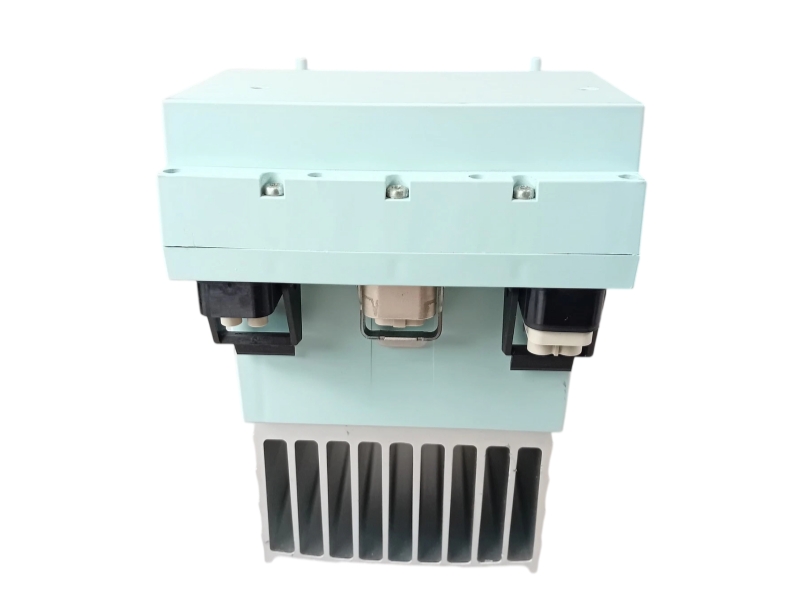

Use current photos to match the complete order code, front label and installed connection arrangement before supply.
| Application | Engineering Relevance |
|---|---|
| Distributed conveyor drives | Places motor control close to conveying equipment and reduces long shielded motor-cable runs. |
| Automotive and logistics systems | Supports modular distributed drive architectures across extended production areas. |
| Regenerative motion | Returns energy through the configured drive system during braking conditions. |
| Safety-related motor control | Uses integrated STO within a correctly engineered safety concept. |
Verify ET 200pro FC-2 hardware, backplane bus module, connectors, and project configuration.
Check voltage, power, ambient temperature, overload profile, and braking requirements.
Align firmware with the appropriate STEP 7 / TIA Portal support package.
STO must be engineered and commissioned as part of the complete machine safety design.
PM300: Active Product
Siemens specifies 1.1 kW at 0 to +55 °C and 1.5 kW at 0 to +45 °C.
Yes. Siemens describes energy recovery with brake control at 180 V DC.
The exact converter includes Safety Integrated STO, or Safe Torque Off.
Verify the ET 200pro generation, motor data, backplane module, connectors, firmware, ambient duty, and safety project.
Send the full part number, quantity, destination and nameplate photos for an exact supply and compatibility review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Service for 6SL3514-1KE13-5AE0
A documented workflow for identification, compatibility review, condition evidence and protected international dispatch.
We match 6SL3514-1KE13-5AE0, the manufacturer, suffix, label and visible hardware revision.
We compare interfaces, electrical duty, system family and project dependencies against the supplied requirement.
We record condition, packing, labels and shipment details before release.
Clear evidence is used to compare the requested code, visible connectors and installed configuration.
Protective materials, carton condition and shipping labels are checked before handover.
| Checkpoint | Typical Record |
|---|---|
| Product identity | Siemens 6SL3514-1KE13-5AE0, label and visible revision |
| Condition | Front, rear, sides, connectors and mounting areas |
| Compatibility review | System family, interface, voltage and project dependencies |
| Packing control | Inner protection, outer carton and dispatch label |
Send the full model, quantity, destination and application notes so the supply scope can be checked correctly.
Request current-unit photos and agreed evidence records for final review before shipment.
Send the full part number, quantity, destination and nameplate photos for an exact supply and compatibility review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
