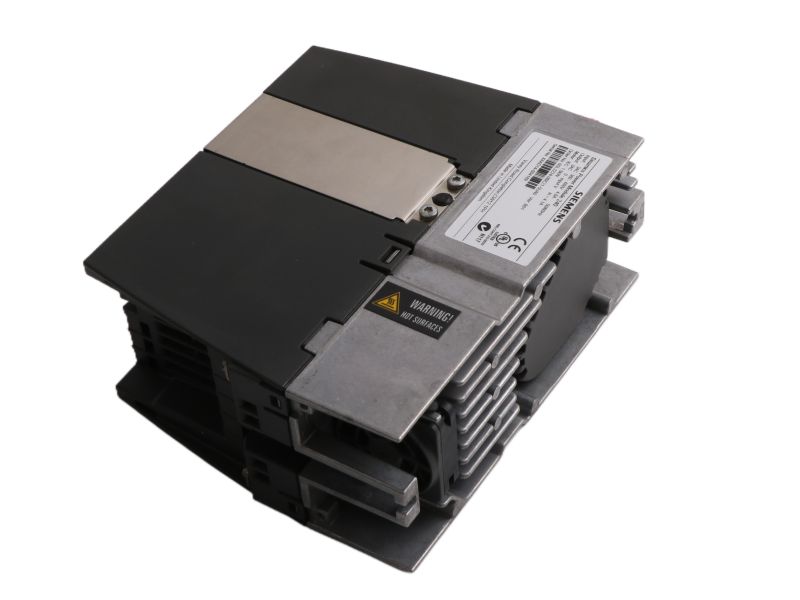

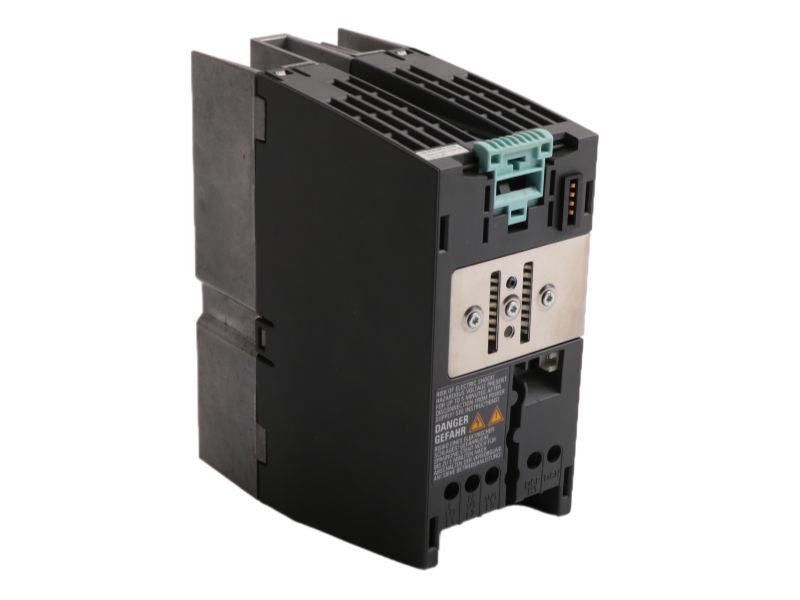

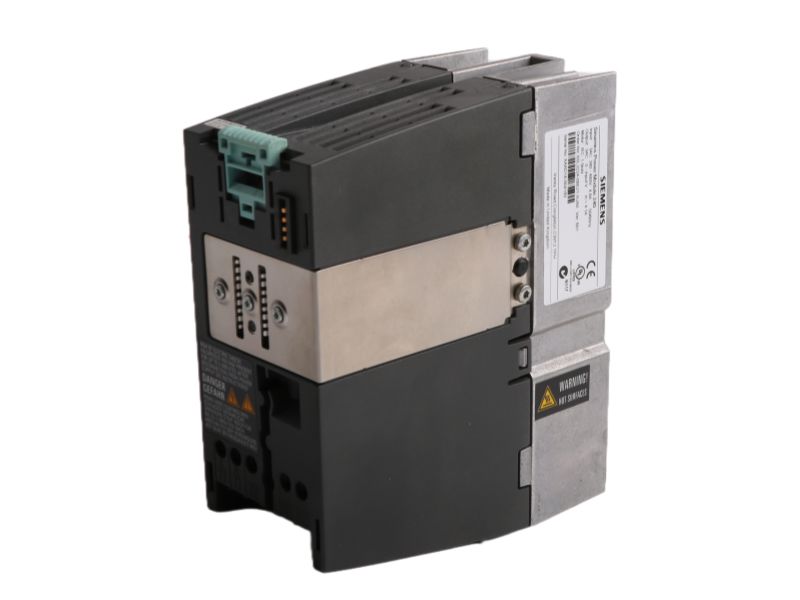

The SINAMICS G120 POWER MODULE 6SL3224-0BE21-5UA0 is a SINAMICS G120 power module designed for robust industrial drive applications. This PM240 module operates with a 3AC 380-480V input voltage and features a built-in braking chopper, providing reliable performance for motor control systems. The 6SL3224-0BE21-5UA0 Siemens Module Inverter delivers 1.5kW output power at high overload capacity, supporting 200% overload for 3 seconds and 150% for 57 seconds, making it suitable for demanding applications with variable torque requirements.

With dimensions of 173x73x145mm and IP20 protection, the SINAMICS G120 series Siemens 6SL 3224-0BE21-5UA0 offers compact installation while maintaining efficient thermal performance through internal air cooling.

The module operates within an ambient temperature range of -10 to +50°C and can be installed at altitudes up to 1000 meters without derating. The 6SL 3224-0BE21-5UA0 PM240 Power Module Siemens achieves a power factor of 0.95 and produces a sound pressure level of 45dB, ensuring energy-efficient and quiet operation in industrial environments.

This power module requires a separate control unit and operator panel for complete functionality, providing flexibility in system configuration. The 6SL3224-0BE21-5UA0  Siemens supports both V/f and vector control modes with output frequencies up to 550Hz, offering precise speed and torque control for AC induction motors. Although this specific module has been replaced by the PM240-2 series, it remains a reliable solution for existing installations and spare part requirements in various industrial automation applications.
